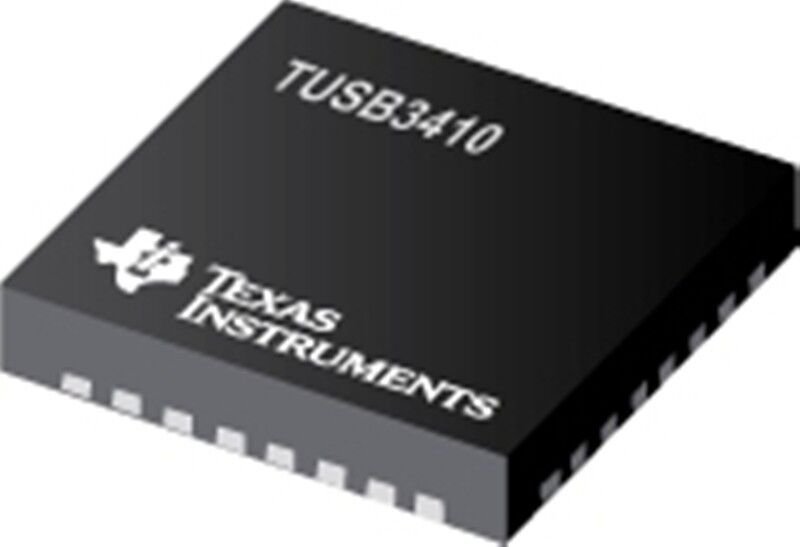

IC TI TUSB3410IVF RS232/IrDA Serial-to-USB Converter 32LQFP Integrated 8052 CPU

Only ITEM IC TUSB3410IVF TI TUSB3410 RS232/IrDA Serial-to-USB Converter Image shown is for reference only. Other pin/package combinations may be available. Featured Applications with TUSB3410 Blood Pressure Monitor CT Scanner ECG ElectrocardiogramThis monitoring system uses Korotkoff, oscillometry or pulse transit timeDigital pressure measurement and heart rate are performed by the microcontroller. Measurement results are stored in flash memory as a data log that can be uploaded to a computer via USB or wireless connectionChannel card front end and control card subsystems, including data converters, processors, power management solutions and other analog productsSingle-chip solutions for directly digitizing low-level currents from photodiode arrays in CT scannersReduce components and board size by 95%Application using single-chip solution increases system reliability and patient mobilityDescriptionThe TUSB3410 provides bridging between a USB port and an enhanced UART serial port. The TUSB3410 contains all the necessary logic to communicate with the host computer using the USB bus. It contains an 8052 microcontroller unit (MCU) with 16K bytes of RAM that can be loaded from the host or from the external on-board memory via an I2C bus. It also contains 10K bytes of ROM that allow the MCU to configure the USB port at boot time. The ROM code also contains an I2C boot loader. All device functions, such as the USB command decoding, UART setup, and error reporting, are managed by the internal MCU firmware under the auspices of the PC host.The TUSB3410 can be used to build an interface between a legacy serial peripheral device and a PC with USB ports, such as a legacy-free PC.FeaturesUSB FeaturesFully compliant with USB 2.0 full speed specifications: TID #40340262Supports 12-Mbps USB data rate (full speed)Supports USB suspend, resume, and remote wakeup operationsSupports two power source modes:Bus-powered modeSelf-powered modeCan support a total of three input and three output (interrupt, bulk) endpointsGeneral FeaturesIntegrated 8052 microcontroller with256 — 8 RAM for internal data10K — 8 ROM (with USB and I2C boot loader)16K — 8 RAM for code space loadable from host or I2C port2K — 8 shared RAM used for data buffers and endpoint descriptor blocks (EDB)Four GPIO terminals from 8052 port 3Master I2C controller for EEPROM device accessMCU operates at 24 MHz providing 2 MIPS operation128-ms watchdog timerBuilt-in two-channel DMA controller for USB/UART bulk I/OOperates from a 12-MHz crystalView All Features in Datasheet Parametrics TUSB3410USB SpeedFull Number of Endpoints IN3 Number of Endpoints OUT3 Supply Voltage(s) (V)3.3 MCU Speed (Max) (MIPs)2 MCU Code Space (KBytes)16 GPIO Pins (#)4 Operating Temperature Range (C)-40 to 85,0 to 70 Pin/Package32LQFP, 32QFN Approx. Price (US$)2.25 | 1ku Integrated MCU Architecture8052 Application InterfaceEnhanced,UART supreme
