$102.24 Add to Cart

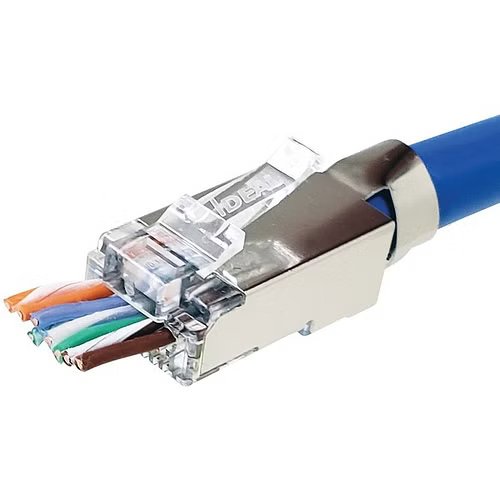

IDEAL 85-368 Shielded Feed-Thru CAT-6A/6/5-E Modular Plugs for Larger Diameter Conductors, 25-Pack

IDEAL 85-368 Shielded Feed-Thru CAT-6A/6/5-E Modular Plugs for Larger Diameter Conductors, 25-Pack

7 available

Details

Shipping: Australia: $72.00 (more destinations)

Sales Tax: check

Condition: Brand new


• For shielded or unshielded CAT-6A, CAT-6, or CAT-5E with insulated conductor diameter of .040 in. to .048 in., maximum jacket diameter of .32 in.;• Shield continuity can be made internally by folding the cable foil around the jacket and making contact with the inside of the connector walls or externally by wrapping the cable drain wire around the base of the jacket strain relief clip;• Jacket strain relief is prepositioned in the up position so cable insertion is simplified;• Pre-formed clip can be closed and crimped with a standard needle-nose or plier-nose device;• Requires the IDEAL(R) FT-45(TM) Crimp Tool to properly terminate;• 25-pack;

Length: 5.75"
Width: 2.95"
Height: 2.00"
