$244.83 Add to Cart

Motor & Solenoid for Hale Primer Pumps 6.2 mm Slotted Shaft

More than 10 available

Details

Shipping: Australia: $147.00 (more destinations)

Condition: Brand new

Description

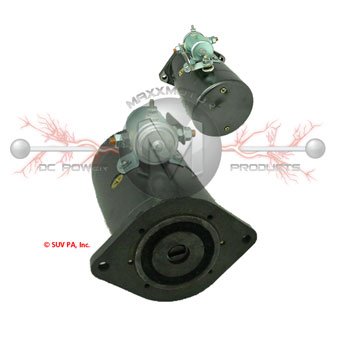

Motor & Solenoid for Hale Primer Pumps 6.2 mm Slotted Shaft
Hydraulic Primer Pump Unit Motor// 12V// CW// 6.2 mm slotted shaft

Applications: Hale Primer Pumps

Part #: 51062
Voltage: 12.00
Rotation: CW
Field Housing Outside Diameter: 4.449
Overall Length: 7.677 in.
Shaft Outside Diameter: 15.8 mm
Shaft Style: 6.2 mm Slot in End
Terminal 1 Size: 5/16 - 18
Weight: 19 lbs.

Notes: Double ball bearing. (2) 10.4 mm Mounting Holes in DE housing. Comes with Solenoid and connecting strap. Terminal 2 is ground terminal.

Cross References:
Prestolite: 46-3663, MCL-6509, MCL-6509S
Lester 10787
