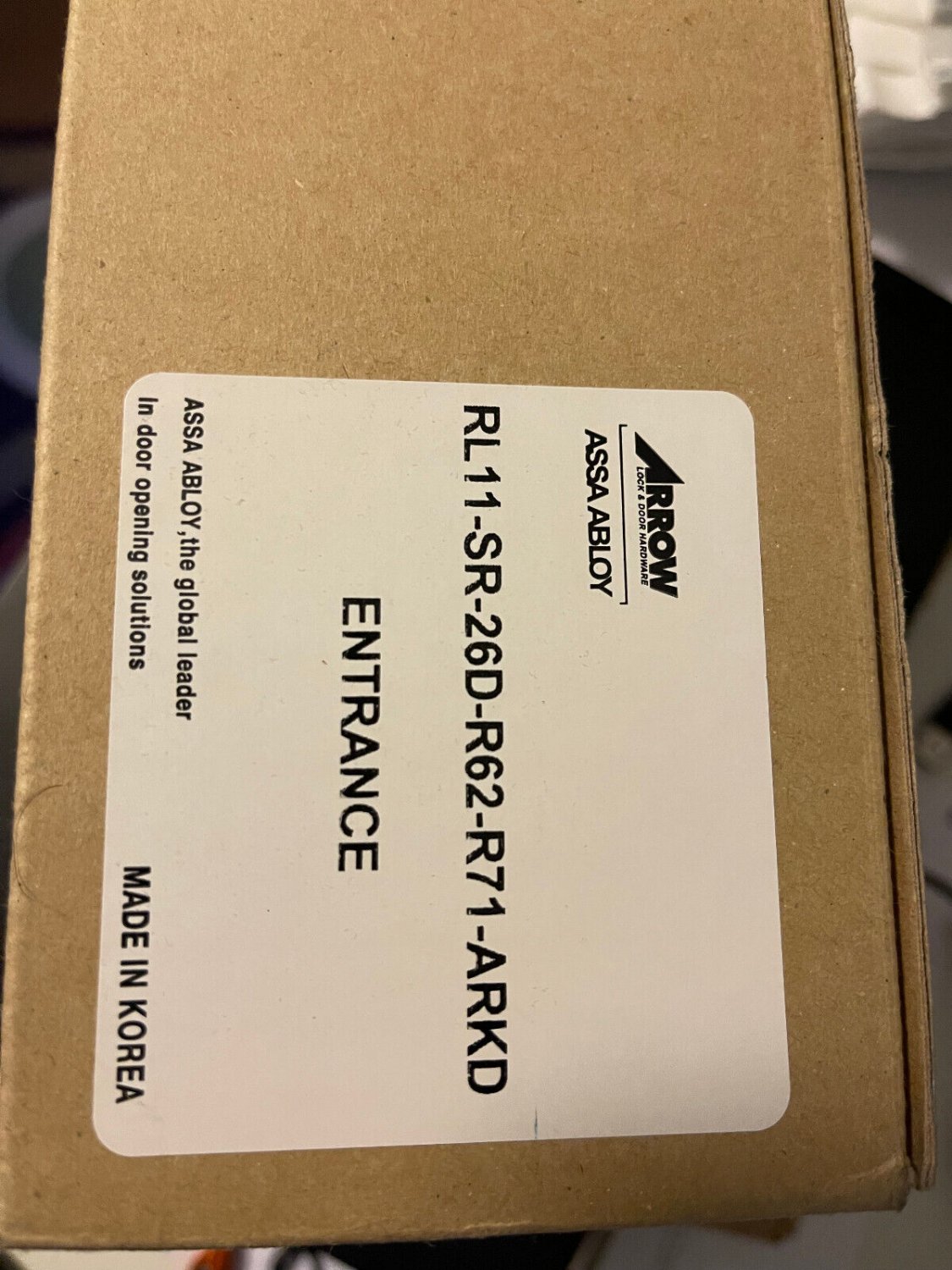

New in Box RL11-SR-26D-R62-R71-ARKD Arrow Arrow Storeroom Leverset ENTRANCE

New in Box RL-11-SR-26D-R62-R71-ARKD Arrow G Arrow Grade 2 Commercial Lever - ENTRANCE - AR1 - SILVER AVAILABLE IN 2-3/4" BACKSET ONLY. If you need to convert to a 2-3/8" backset, please purchase the Dead Latch separately. The RL Series has been enhanced to offer removable throughbolts and a wide variety of designs, finishes and functions. The RL Series cylindrical locksets are an economical value for a variety of applications. Perfect for multi-family housing markets as well as commercial applications. Function: Entrance / Office Cylinder: Solid brass 6 pin. Arrow AR keyway (AR1/AR4) Finish: 26D (Satin Chromium Plated) Backset: 2-3/4" Construction: Cold rolled steel with zinc dichromate finish for corrosion resistance. Requires standard 2-1/8" bore through door. Door Thickness: Fits 1-3/8" to 1-3/4" doors standard Latch: Brass 1/2" throw, UL Listed, guarded latchbolt on all locking functions Latch Front: 1-1/8" x 2-1/4" Exposed Trim: RL Levers are pressure cast zinc measuring 4-3/4" in length. RL Roses are wrought brass 3-3/8" diameter. Total projection from face of door is 2-1/2". Strike: 1-1/4" x 4-7/8", 1-1/4" lip, square corner Handling: Non-handed Thru-Bolts: Removable thru-bolts standard Warranty: Five Year Mechanical Warranty Keys: 2 brass keys Compare to: Cal-Royal SL-Series Corbin Russwin CL3851 Falcon W501 Falcon Y521 General Lock L280 Sargent 7G05 Sargent 65G05 Schlage AL53 US Lock 2052 Certification: The RL Series has been designed to meet the requirements of ANSI, A156.2, Series 4000, Grade 2 UL Listed for use on 3 hour, A label single swinging doors. RL Levers conform to ADA requirements.
