Corsair CX500 80 PLUS Bronze Power Supply - CP-9020047-NA


Originally: $79.99 USD + S&H



Brand: Corsair
Model Number: CX500

P/N: CP-9020047-NA
P/N: CP-9020047
P/N: CMPSU-500CX
P/N: 75-001667

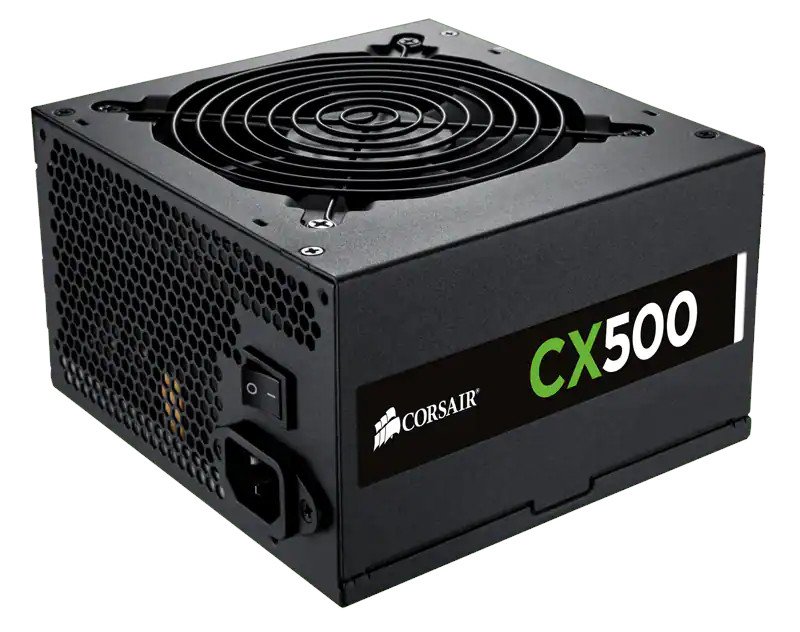

CX500 — 80 PLUS Bronze Certified Power Supply

The CX500 delivers the power needed for medium specification home or office PCs that do not have high numbers of components, while also offering high energy efficiency and low noise.

An ideal choice for value-conscious system builders and upgraders

CX Series power supply units are an excellent choice for basic system builds and desktop PC computer upgrades. CX Series PSUs are available in a variety of power configurations, and include features that are normally found only on premium power supplies.

Reliable and compatible
CX Series is built and tested to strict standards for trouble-free installation and smooth operation.

Good looks
The matte black finish, black-sleeved cables and black connectors help give your system a restrained, high-tech look.

Low noise
80 PLUS Bronze certified efficiency and clever fan design allow for little or no detectable fan noise during regular operation.

Corsair engineering and quality control
Every Corsair power supply is designed by our California engineering team and built to our exact specifications. The same care that goes into the design and testing of our renowned high-power enthusiast power supplies also goes into the CX Series, because you need confidence and reliability regardless of your build budget.

Ample connectors and long cables
Long cables make CX Series suitable for installation even in full-height tower cases, and the generous cable count allows you to power multiple components and storage devices.

Large-diameter, thermally controlled fan
Once you’ve installed a PSU, you shouldn’t have to think about it. Employing a thermally controlled fan makes the CX Series virtually silent at idle, and the large diameter reduces noise even when you’re pushing your system hard.

Black goes with everything
You’re building a PC, not a battleship, and appearance counts. The matte black finish and all-black sleeved cables and connectors help give your system a high-tech, restrained look.


ATX12V Version: v2.31

Continuous power: 500 Watts
Efficiency: 80 PLUS Bronze

Fan bearing technology: Sleeve Bearing
Fan size: 140mm

PSU Form Factor: ATX
Cable Type: Sleeved

ATX Connector: 1
EPS12V Connector: 1
Floppy Connector: 1
PCIe Connector: 2
SATA Connector: 5

Special Technology:
- OVP (Over Voltage)
- UVP (Under Voltage)
- SCP (Short Circuit)
- OTP (Over Temp)
- OPP (Over Power)

Continuous output rated temperature: 30°C
MTBF hours: 100,000 hours


UPC: 843591033442, 843591011457, 843591029360
EAN: 0843591033442, 0843591011457, 0843591029360

Condition: Item was pulled from a working environment and sold as-is. All sales are final. No returns are accepted for this Clearance Item.

Images are for reference only.

Power supply only, no other accessories are included.
