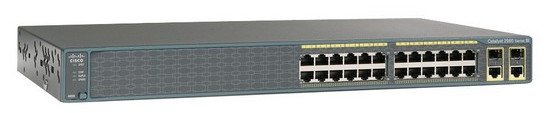

Cisco CATALYST 2960 24-port Ethernet Switch - WS-C2960+24TC-L, 800-32796-02



The Cisco Catalyst 2960-L Series switches are fixed-configuration, Gigabit Ethernet switches that provide entry-level enterprise-class Layer 2 access for branch offices, conventional workspace, and out-of-wiring closet applications.

Cisco Catalyst 2960-L Series switches provide support for the following features:
- 24 Gigabit Ethernet ports with line-rate forwarding performance
- Four Gigabit Small Form-Factor Pluggable (SFP/SFP+) uplinks
- Power over Ethernet Plus (PoE+) support with up to 120W of PoE budget and Persistent PoE
- Fanless operation with operational temperature up to 45°C for deployment outside the wiring closet
- Reduced power consumption and advanced energy management
- RJ-45 and USB Mini-Type B console ports
- USB Type A port supports file system

Product Code: WS-C2960+24TC-L
Enclosure Type: Rack-mountable 1U
Feature Set: LAN Base
Uplink Interfaces: 2 (SFP or 1000BASE-T)
Ports: 24 x 10/100 Ethernet Ports
Forwarding Bandwidth: 16 Gbps
Forwarding Performance: 6.5 Mpps
RAM: 128 MB
Flash Memory: 64 MB


CATALYST 2960 ETHERNET SWITCH, 24 PORTS 10/100 + 2PT 1000


Brand: Cisco
Model: CATALYST 2960 24-port Ethernet Switch

MPN: WS-C2960+24TC-L
MP/N: H67152
SKU: 800-32796-02

Product Family: CATALYST
Product Model: CATALYST 2960
Product Type: Ethernet Switch
Type: Ethernet Switch



Manufacturer Warranty: Limited lifetime warranty

Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47

Remote Management Protocols: SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, CLI

Device Type: Switch - 24 ports - managed
Dimensions (WxDxH): 17.7 in x 9.5 in x 1.7 in
Enclosure Type: Rack-mountable 1U
Features: Full duplex capability, BOOTP support, ARP support, VLAN support, Syslog support, DiffServ support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol: (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snoop
Jumbo Frame Support: 9018 bytes


Power: AC 120/230 V ( 50/60 Hz )
Subtype Fast Ethernet


Capacity
Active VLANs: 64

Authentication Method: RADIUS, TACACS+

Device Type: Switch - 24 ports - managed
Enclosure Type: Rack-mountable 1U
Features: Redundant Power System (RPS) connector
Flash Memory: 64 MB

Humidity Range Operating: 10 - 95% (non-condensing)
Humidity Range Storage: 10 - 95% (non-condensing)
Interfaces: 24 x 100Base-TX - RJ-45

Performance
Switching capacity: 16 Gbps
Ports:
24 x 10/100
2 x combo Gigabit SFP

Max Operating Temperature: 104
Max Storage Temperature: 158
Min Operating Temperature: 23
Min Storage Temperature: -13
MTBF: 667,000 hours

Power Consumption Operational: 18.6 Watt
Power Device: Internal power supply
RAM: 128 MB

Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, CLI

Software Included Cisco LAN Base software
Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system
Subtype Fast Ethernet
Voltage Required AC 120/230 V ( 50/60 Hz )

Depth 9.5 in
Height 1.7 in
Width 17.7 in

Package Weight 20 pounds


Service & Support
Limited warranty - advance parts replacement - lifetime - response time: next business day


UPC: 882658035005
EAN: 0882658035005


Item Condition: NEW-in-Box. Original Cisco box is open, but the product and accessories packages are FACTORY-SEALED.

Images for identification and reference only.

Item is sold as-is. All sales are final. No returns are accepted on this Clearance Item. Item comes in the manufacturer's original box.

NOTICE: Manufacturer-provided "Limited Lifetime Warranty" serviced by Cisco, not seller.
