HP p2-1394 Desktop PC + 3rd Gen i5 3.6GHz UPGRADED CPU + 8GB RAM - H3Z88AA#ABA

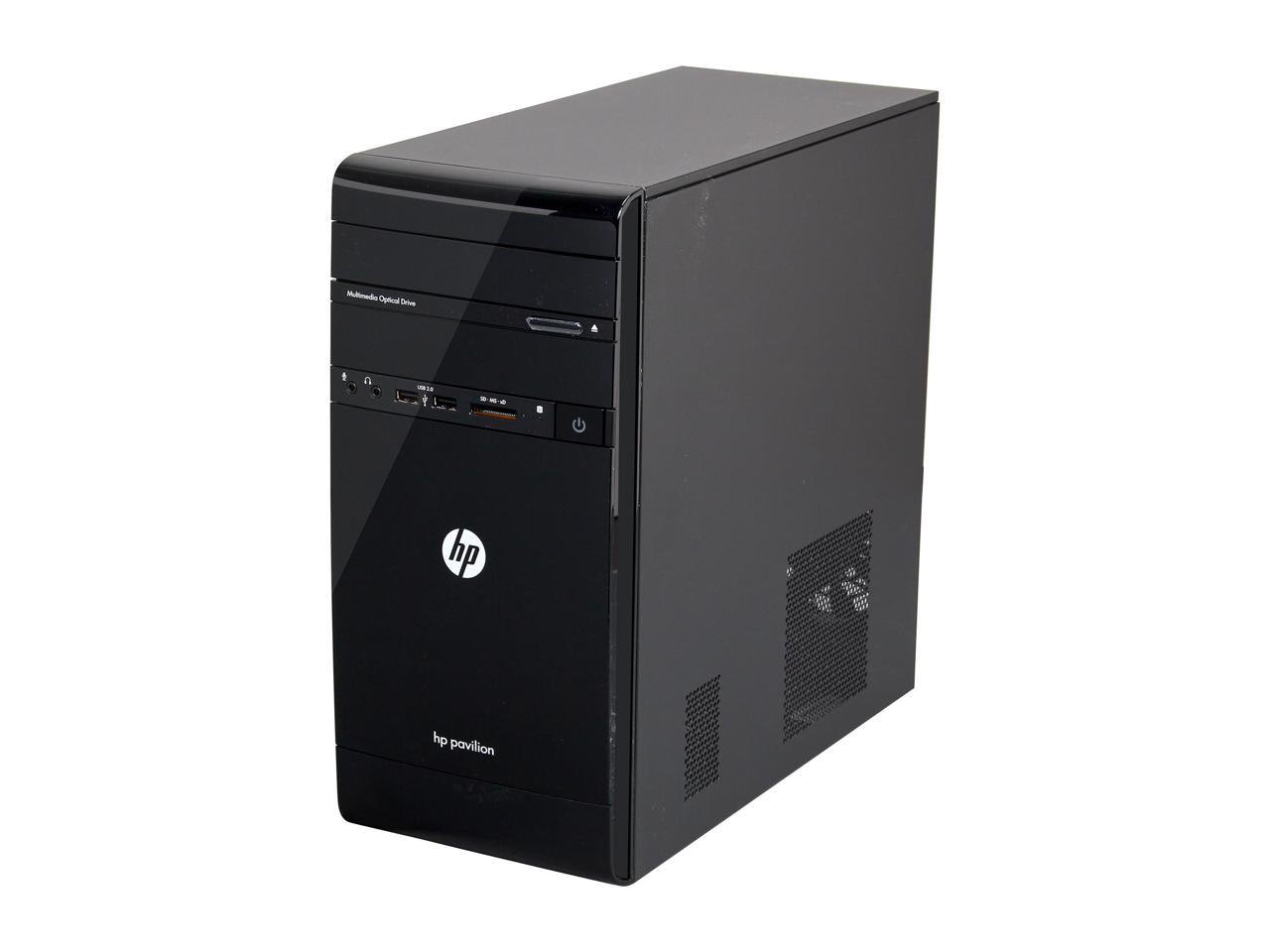

HP p2-1394 Desktop PC

Product number: H3Z88AA
Release date: 11-Oct-2012



Processor: Intel Core i5-3470T SR0RJ 2.90GHz (a $184 upgrade value!)
TDP: 35W
Operating speed: Up to 3.6 GHz
Number of cores: 2 / 4 Threads
Cache: 3.5 MB
Socket: LGA1155
Bus speed: DMI (Direct Media Interface) - 5GT/s

Processor upgrade information
Socket type: LGA 1155
TDP: 35 W (Only 35 W CPUs are supported with this motherboard)

Motherboard supports the following processor upgrades:
Intel Core i3-32xxT (Ivy Bridge) Dual Core
Intel Core i5-34xxT (Ivy Bridge) Dual Core
Intel Celeron G16xxT (Ivy Bridge) Dual Core
Intel Pentium G20xxT (Ivy Bridge) Dual Core
Intel Pentium G21xxT (Ivy Bridge)

Intel Core i3-21xx (Sandy Bridge) Dual Core
Intel Core i3-21xxT (Sandy Bridge) Dual Core
Intel Core i5-23xx (Sandy Bridge) Dual Core


Memory
Amount: 8 GB
Speed: PC3-10600

Memory upgrade information
Dual channel memory architecture
Two 240-pin DDR3 UDIMM sockets

Supports DDR3 UDIMMs
PC3-8500 (DDR3-1066)
PC3-10600 (DDR3-1333)
PC3-12800 (max DDR3-1600 with Ivy Bridge processors)
Non-ECC memory only, unbuffered
Supports up to 4 GB on 32-bit* systems
Supports up to 16 GB on 64-bit systems (with 8 GB UDIMMs)


Video graphics - Inter HD2500 GPU
Intel PCH Integrated Graphics
VGA connector on back I/O
DVI connector at back I/O


Motherboard: IPXSB-DM (Cork2)
Manufacturer: Pegatron
Form factor: Mini-ITX form factor: 17 cm (6.7 inches) x 19 cm (7.5 inches)
Chipset: Intel H61
Memory sockets: 2 x DDR3
Processor socket: LGA 1155


Sound/Audio
Integrated Realtek ALC662 Audio
6 channel audio
Realtek ALC662 CODEC

Networking
LAN: 10-Base-T
Technology: Atheros AR8152 Ethernet controller
Data transfer speeds: up to 10/100 Mb/s
Transmission standards: 10-Base-T Ethernet

Memory Card Reader
Multimedia card reader

Dimensions
Height: 35.5 cm (14 inches)
Width: 16.5 cm (6.5 inches)
Depth: 38.1 cm (15 inches)
Weight: 4.94 kg (10.89 lbs) - without packaging

Power Supply
External 90W (100V-240V)
Total wattage: 90W

Input voltage:
100-127V/3A (50-60Hz)
200-240V/2A (50-60Hz)

Output voltage: 19V

Front I/O ports
USB 2.0: 2
Microphone: 1
Headphone: 1

Back I/O ports
Figure : Back I/O panel
DC power
DVI-D port
VGA port
LAN
USB 2.0: 4
Audio: Line in
Audio: Line out
Audio: Microphone


Condition: Pulled from a working environment. Unit comes with 19V power adapter.

Images for reference only, images may differ from actual product.
Does not come in original box, hard drives, optical drives, or with any other accessories.

Item is sold as-is. All sales are final. No returns are accepted on this Clearance Item. Seller not responsible for compatibility issues.



Location: Shelf
