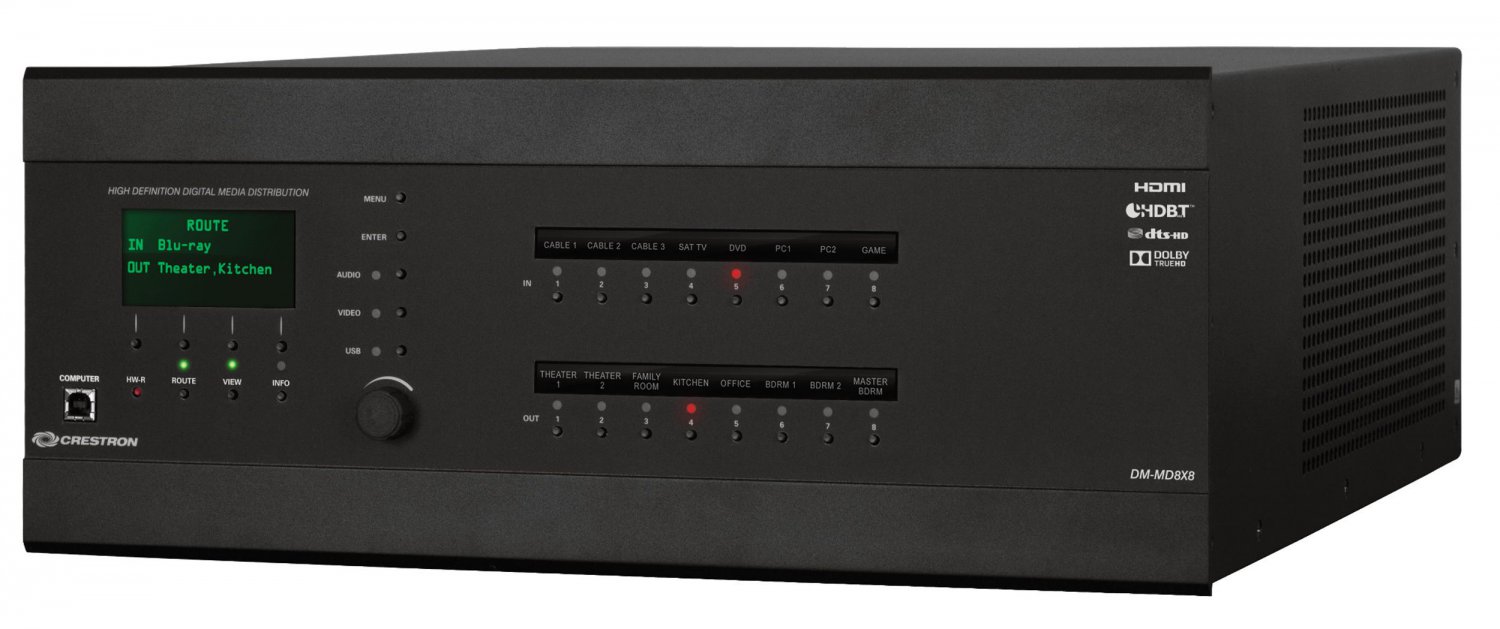

Crestron 8X8 Digital Media Switcher - DM-MD8X8



Crestron DM-MD8X8 8x8 DigitalMedia Switcher

A fully modular and expandable 8x8 DigitalMedia matrix switcher offering ultra-fast digital video and audio switching, and lossless HD multiroom signal distribution, for all types of AV sources. Provides complete management for SD, HD, UHD, 2K, 4K, and computer signals with advanced HDCP support, EDID resolution management, CEC signal management, USB signal routing, integrated Ethernet switch, simultaneous 7.1 and stereo audio, H.264 streaming, and a full range of selectable input and output types.


Key Features

Delivers a unified HD signal distribution solution incorporating both point-to-point wired and IP streaming technologies
Provides lossless HD AV signal routing over twisted pair copper wire or fiber
Integrates video, audio, networking, and control over one wire or fiber strand
Enables high-performance H.264 streaming from any input source up to 1080p or WUXGA
Affords full matrix switching with ultra high 12.5 Gbps backplane data rate
Handles HDMI with Deep Color, 3D, 4K, and high-bitrate 7.1 encoded audio
HDBase Certified — Enables direct connection to other HDBaseT certified equipment
HDCP 2.2 compliant via compatible 4K input and output cards
Distributes Full HD 1080p, Ultra HD, and 4K signals over CAT type twisted pair cable at distances up to 330 ft (100 m) via DM 8G+ and HDBaseT
Distributes 1080p and WUXGA signals over multimode fiber at distances up to 1000 ft (300 m) via DM 8G Fiber
Distributes 1080p and WUXGA signals over single-mode fiber at distances up to 7.5 miles (12 km) via DM 8G SM Fiber
Allows streaming of 1080p signals over an IP network with no distance limitations
Also supports all first-generation DM CAT and DM Fiber products
Configurable with up to eight DM, HDBaseT, and/or HDMI outputs
Configurable with up to four streaming outputs
Easy output expansion using multiple DM switchers
Modular inputs support a complete range of digital, analog, and streaming signal types
QuickSwitch HD technology manages HDCP keys for fast, reliable switching
Auto-Locking technology achieves rapid switching between disparate sources
Detects and displays detailed video and audio input information
Performs automatic AV signal format management via EDID
Allows independent scaling for every display through select output cards and DM receivers
Enables device control via CEC
Distributes and routes USB HID mouse and keyboard signals
Expanded USB routing capabilities available using USB over Ethernet Extenders
Allows full audio and USB breakaway switching
Supports analog audio embedding and de-embedding
Integrates with analog audio distribution systems
Enables simultaneous output of stereo and surround sound audio
Includes integrated Ethernet switch with Gigabit LAN port
Private Network Mode — requires just one IP address for the complete DM system
Provides easy setup and diagnostics tools via front panel or software
Half-million hour rated internal universal power supply
4-space 19-inch rack-mountable



Images for reference only. Item does not come in the manufacturer's original box.
Item Condition: Pulled from working system. Light, usual-use scuffs.

Item is sold as-is. All sales are final. No returns are accepted on this Clearance Item. Seller not responsible for compatibility issues.

Expansion cards not included.


Location: Rackmount
