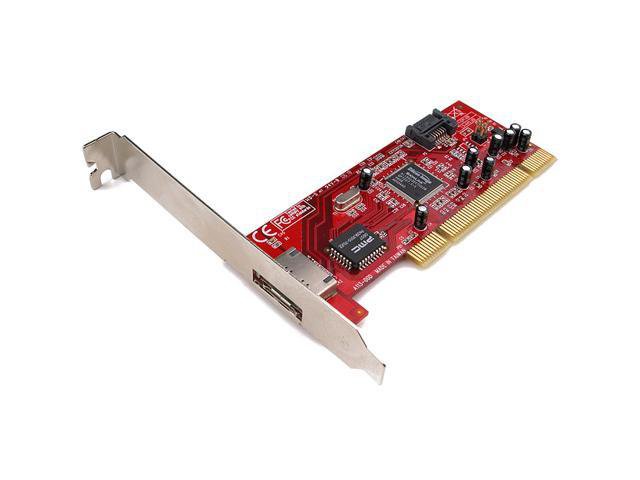

Rosewill RC-210 Silicon Image Internal SATA + External eSATA Low Profile Ready PCI Controller Card

Brand: Rosewill
Model: RC-210 Silicon Image Internal SATA + External eSATA Host Adapter Card
P/N: RC-210
ASSY:

Interface: PCI
Max Transfer Rate: 150MB/s

Internal Interfaces: SATA I
Type: Non-RAID Controller Card

Ports: 1 x SATA plus 1 x eSATA
Controller Chip: Silicon Image 3512 (un-RAID)

Features: Easy connecting eSATA enclosure




A quick, simple way to expand your system's capabilities is to insert an add-in card to it. The Rosewill RC-210 will provide the expansion you need. In addition to an internal SATA port, it includes an external port to allow for an external SATA device. The RC-210 is compliant with SATA 1.0a specifications so it will work on almost any compatible device. The controller card also provides an additional feature.
The RC-210 can be used with either a tower case or a low profile desktop chassis. The card can fit either a tower or a low profile desktop chassis; just make sure the motherboard has a free PCI slot. Last, but not least, the RC-205 includes drivers for most Windows operating systems including Windows 98SE/ ME/ NT 4.0/2000/XP/Vista.

SATA 1.5 Gb/s Compliant
The Rosewill RC-210 features hot-pluggable point-to-point SATA ports providing 1.5 Gb/s data transfer rates for optimum performance, efficiency, convenience and flexibility.

External SATA Port
With the external SATA port on the bracket panel for easy setup and hot-pluggability, backup photos, videos and more multimedia content in external devices with ease.


Brand Rosewill
Model RC-210

External Connectors 1 x eSATA
Internal Connectors 1 x SATA 150

Interface PCI
Transfer Rate 1.5 Gb/s (150 MB/s)

Operating Systems Supported Windows 98SE/ ME/ NT 4.0/ 2000/ XP/Vista/ Win7 32/64 bit
Dimensions 4.7" x 1.8"

Chipset: Silicon Image SiI 3512
Note: Need a floppy driver on PC if you want to install a new OS into a fresh HD attaching to this card (fresh installation)
Note: RC-210 might not work with some models of SATA optical drive such as DVD burner

Package Contents: (QTY=1) RC-210 card only. No accessories included.





Images for reference only.

Unit was pulled from a working system. This Clearance Item is sold as-is. All sales are final. No returns are accepted on this Clearance Item.


Location: ESB13
