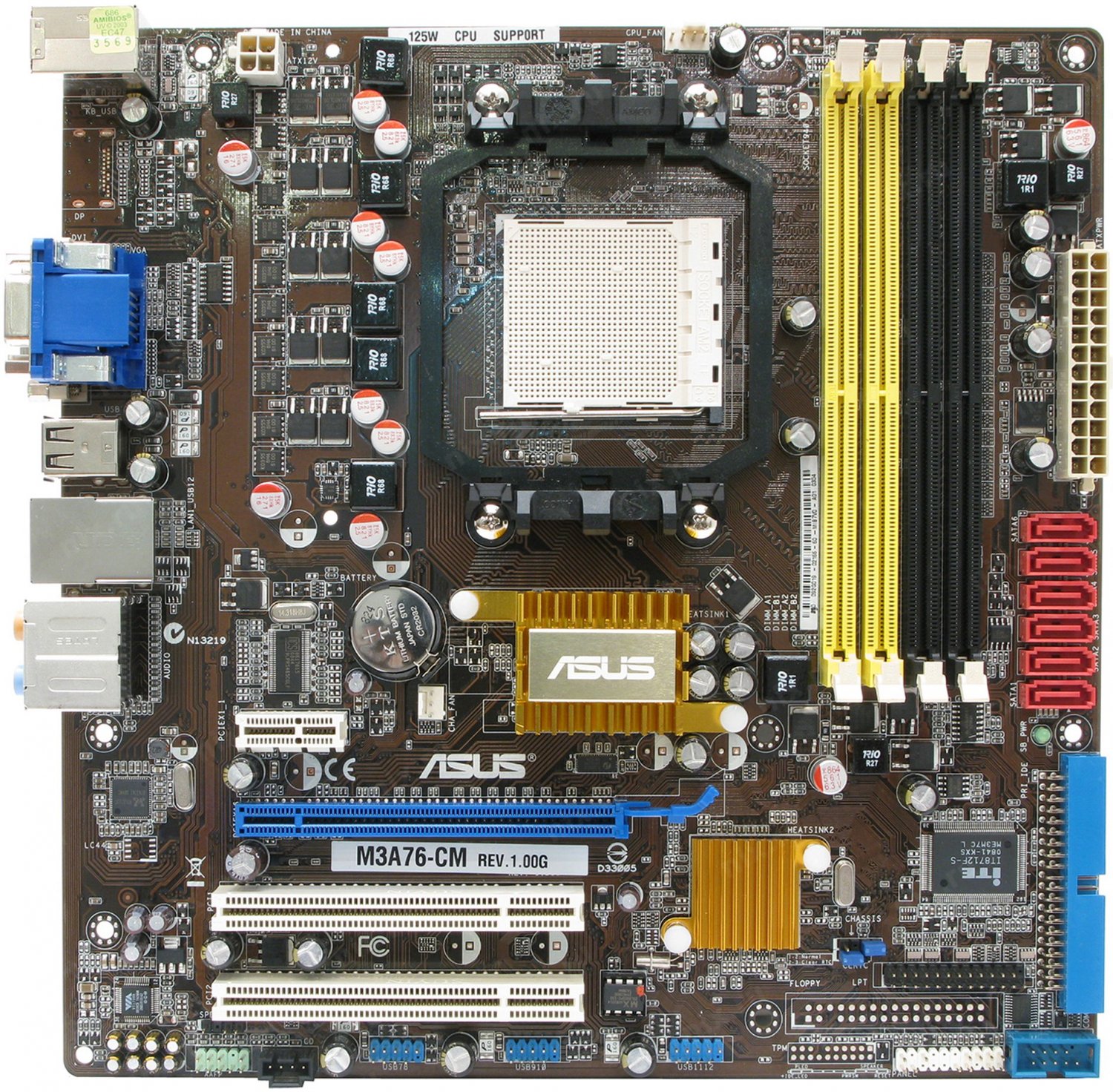

Asus M3A76-CM REV.1.00G motherboard - M3A76-CM REV.1.00G


Brand: Asus
P/N: M3A76-CM REV.1.00G
Model: ASUS M3A76-CM motherboard specifications

Form factor: micro-ATX
Dimensions: 9.6" x 9.6" / 24.4 cm x 24.4 cm

CPU socket type: Socket AM2+
Max CPU: AMD Phenom X4 9950, HD995ZXAJ4BGH, Quad-Core, 2.6 GHz, 125W

CPU support summary

Codenames: Agena, Brisbane, Callisto, Deneb, Heka, Kuma, Lima, Orleans, Propus, Rana, Regor, Sargas, Sparta, Toliman, Windsor
Technology: 0.045, 0.065, 0.09 micron
Cores/Threads: 1 - 4
Frequency: 1800 - 3400 MHz
L3 cache: 2048 - 6144 KB
TDP: 45 - 140.8 Watt

Chipset:
- AMD 760G
- AMD SB710

Motherboard features:
- CrashFree BIOS 3
- EZ Flash 2
- Express gate
- MyLogo 2
- Q-Fan

Overclocking features: CPU Parameter Recall
Memory: Dual-channel
Graphics: Maximum shared memory 256 MB

BIOS:
- AMI BIOS
- 8 MB Flash

Expansion slots:
- PCI x 2
- PCIe x1 x 1
- PCIe x16 x 1

Internal connectors:
- ATX 12V Power (4-pin) x 1
- CPU Fan x 1
- Chassis Fan x 1
- Chassis intrusion x 1
- IDE x 1
- S/PDIF Out x 1
- SATA x 6
- Serial x 1
- System Panel x 1

Rear panel ports:
- 8-channel Audio
- DVI x 1
- LAN RJ45 x 1
- USB 2.0/1.1 x 6
- VGA x 1



UPC: 610839169405
EAN: 610839169405



Condition: Unit was pulled from a working system but is otherwise untested. Stored in anti-static container. This Clearance Item is sold as-is. All sales are final. No returns are accepted on this Clearance Item.

Pictures for reference only.

Accessories: I/O shield.
Unit does not come with original box or other accessories.


Item for sale is not a kit. Single module only. Does not come in original box or with any other accessories.

Item is sold as-is. All sales are final. No returns are accepted on this Clearance Item. Seller not responsible for compatibility, performance, or description issues. Any warranties handled through manufacturer.

Location: ESB13
