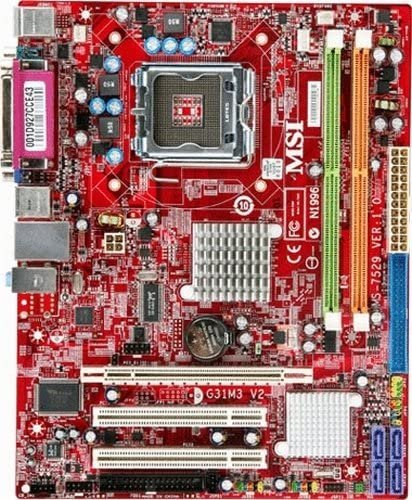

MSI G31M3-F V2 Motherboard - MS-7529


Also available: LGA-775 CPUs. See other listings.



Brand: MSI
Model: G31M3-F
P/N: MS-7529
Socket Type: LGA 775



CPU
- Intel Core 2 Quad, Core 2 Duo, Pentium and Celeron in the LGA775 package.

Chipsets
Intel G31 Chipset
- Supports FSB 800/1066/1333MHz.
- Supports dual channel, DDR2 667/800.
- Integrated Intel Graphics Media Accelerator (Intel® GMA 3100)
- Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:75Hz

Intel ICH7 Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 4 SATA ports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.


Main Memory
- Supports two unbuffered DIMM of 1.8 Volt DDR2 DRAM
- Supports up to 4GB memory size.
- Supports dual channel DDR2 memory architecture.
- Supports DDR2 667/800 memory interface.
- Due to the limitation of G31 chipsets, dual channel support must meet some requirement in the specification of memory modules. please refer to Test Reports for detailed description.


Slots
- 1 x PCI Express x16 slot (PCI Express Bus SPEC V1.0a compliant)
- 2 x PCI slots (support 3.3V/ 5V PCI bus Interface)


On-Board IDE/SATA
- One Ultra DMA 66/100 IDE controller integrated in ICH7
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.
- SATA controller integrated in ICH7
- Up to 3Gb/s transfer speed.
- Supports four SATA ports.


Audio
- Chip integrated by Realtek® ALC888
- Flexible 7.1-channel audio with retasking
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium SPEC


LAN
- Supports PCIE LAN 10/100/1000 Fast Ethernet by 8111C


TPM (Trusted Platform Module)
- The Trusted Platform Module Solution


On-Board Pinheaders/ Connectors
- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- CPU / System x 2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- Chassis intrusion switch connector
- 2 x USB 2.0 connector support additional 4 ports
- 1 x Floppy disk drive connector
- 4 x Serial ATA II connectors
- 1 x ATA133 IDE connector
- Clear CMOS jumper
- 1 x Serial port connector
- 1 x SPDIF-out header
- 1 x SPI Debugging connector
- 1 x TPM module header (optional)

Back Panel I/O Ports
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Parallel port
- 1 x Serial port (COM 1)
- 1 x Graphics Card port
- 1 x 3 in 1 audio jack
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack


BIOS
- The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
- The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.


Dimension
- 24.4cm(L) x 19.3cm(W) Micro-ATX Form Factor

Mounting
- 6 mounting holes.




Unit was pulled from a working system but is otherwise untested. This Clearance Item is sold as-is. All sales are final. No returns are accepted on this Clearance Item.

Pictures for reference only.

Unit includes I/O shield, does NOT come in original box or any other accessories.




Location: ESB1
