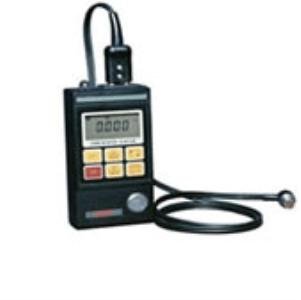

SA40 -Ultrasonic Wall Thickness Gauge, visit: www.testcoat-usa.com or call: 18006784370
Only 1 available
Details
Shipping: Australia: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
CALL:717 334 3372 or BUY ONLINE @ www.testcoat-usa.com.
Materials that can be measured including : aluminium, titanium, plastics, ceramics, glass and other good ultrasonic wave-conducting as long as the material has parallel top and bottom surfaces.
With uses in many areas of industry SA40 can perform precise measurements on various types of raw materials, components parts, and assembled machinery. It can also be used to monitor all types of pipes and pressure vessels for loss of thickness due to corrosion.
The SA40 is very easy to use, after a simple calibration to a known thickness or sound velocity, the gauge will give fast and accurate readings in millimetres.
Technical Specifications
Technique: pulse echo with dual probe
Display: 4 digits LCD with backlight
Measuring range: 0.8 to 225.0mm
Resolution : [email protected], [email protected]
Velocity range: 500-9999m/sec.
Display circle: 1 sec.
Coupling indication
Memory: 40 data can be stored and re-readable
Units: mm or inch
Low battery indicator on LCD
Auto shut-off: after 5 min. of non-use
Power: 2 ea. 1.5V AA alkaline cells
Operating temperature: 0-40 deg C
Operating humidity: 20-90%RH
Size: 124x67x30mm
Weight: 240g
Materials that can be measured including : aluminium, titanium, plastics, ceramics, glass and other good ultrasonic wave-conducting as long as the material has parallel top and bottom surfaces.
With uses in many areas of industry SA40 can perform precise measurements on various types of raw materials, components parts, and assembled machinery. It can also be used to monitor all types of pipes and pressure vessels for loss of thickness due to corrosion.
The SA40 is very easy to use, after a simple calibration to a known thickness or sound velocity, the gauge will give fast and accurate readings in millimetres.
Technical Specifications
Technique: pulse echo with dual probe
Display: 4 digits LCD with backlight
Measuring range: 0.8 to 225.0mm
Resolution : [email protected], [email protected]
Velocity range: 500-9999m/sec.
Display circle: 1 sec.
Coupling indication
Memory: 40 data can be stored and re-readable
Units: mm or inch
Low battery indicator on LCD
Auto shut-off: after 5 min. of non-use
Power: 2 ea. 1.5V AA alkaline cells
Operating temperature: 0-40 deg C
Operating humidity: 20-90%RH
Size: 124x67x30mm
Weight: 240g
