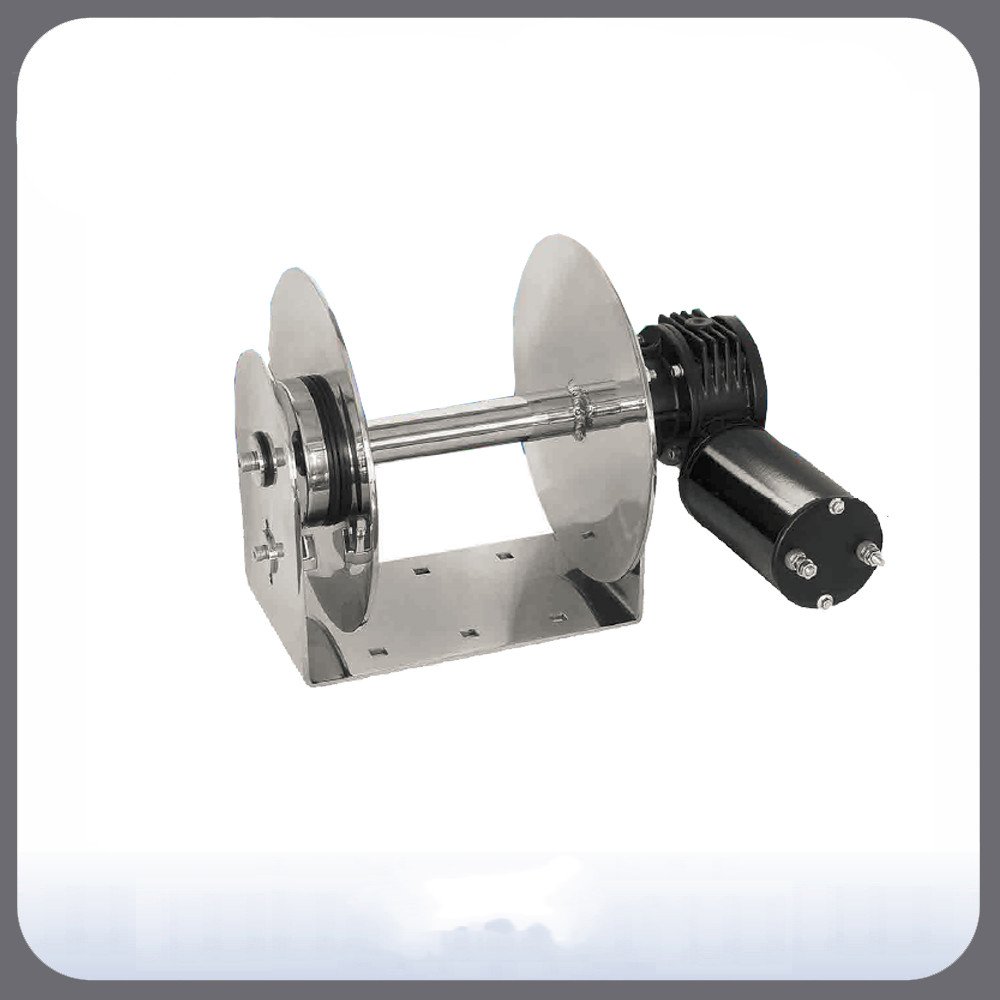

12V 24V 1400W Freefall Marine Boat Anchor Drum Winch Windlass For Boat From 49ft to 56ft DF1412
This winch has freefall funtion. Once activated, the winch will drop by freefall, it is much faster drop than even-speed-motor drop.
Features:
The D-series heavy duty style windlass.
Suitable for boats from 49ft to 56ft
With parts above the deck made of high polished stainless steel 316.
Powerfull and compact windlass made specially for the rigid conditions of the sea.
Suitable for the boat with adequate space underneath deck and with deck thickness less than 50mm(2 inch).
With motor/gear underneath deck offes this model a very smooth and silent operation.
Easy to vertically install, adjustable clutch, work with chain only or rope/chain combinations.
CE and RoHs certified
Specifications:
Model Number: DF1412
Motor(W): 1400W
Voltage(V): 12V or 24V
Current Draw(A): 120A
Max. Working Load: 480KG/1058LBS
Max. Power Pull: 900KG/1984LBS
Drop Speed Chain: 20meters/minute, 82 ft/minute
The winch can hold about 280 meters of 10mm rope or 190 metes of 12mm rope or 140 metes of 14mm rope.
Weight: 35.5KG/78LBS
Please see the winch dimenion photos for size details
The package includes:
1* windlass
1* solenoid
1* circuit breaker
1* anodized alloy switch panel
1* foot switch (1 pair)
1* windlass handle
1* Installation Guide
The listing price does not include any destination duties/taxes/custom fees/etc. that will be due when the product arrives at destination countries/regions. It is the customer's responsibility to pay for all custom duty/taxes/custom fees if any.
