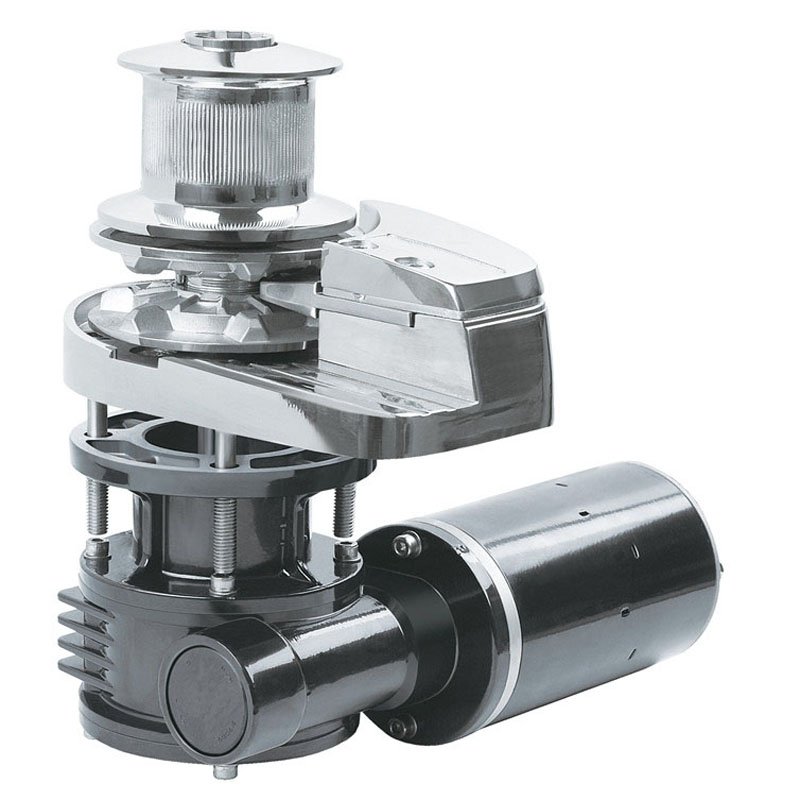

12V 900W Heavy Duty Highspeed Marine Boat Anchor Winch Windlass With Capstan For Boats From 20ft to 35ft C912C
Features:
The C-series heavy duty style windlass.
Suitable For Boats From 20ft to 35ft
With parts above the deck made of high polished stainless steel 316.
Powerfull and compact windlass made specially for the rigid conditions of the sea.
Suitable for the boat with adequate space underneath deck and with deck thickness less than 50mm(2 inch).
With motor/gear underneath deck offes this model a very smooth and silent operation.
Easy to vertically install, adjustable clutch, work with chain only or rope/chain combinations.
CE and RoHs certified
Motor gear case can be mounted all 4 directions.
Specifications:
Model Number: C912C, with capstan
Motor(W): 900W
Voltage(V): 12V
Current Draw(A): 55A
Max. Working Load: 220KG/484LBS
Max. Power Pull: 660KG/1452LBS
Drop Speed Chain: 40 meters/minute, 131 ft/minute
Gypsy Options:
Stanard: 6mm Chain DIN766
Optional: 7mm or 8mm Chain DIN766
Rope: 12mm, 1/2 inch
Weight: 9.1KG/20LBS
Please see the winch dimenion photos for size details
The package includes:
1* windlass
1* solenoid
1* circuit breaker
1* anodized alloy switch panel
1* foot switch (1 pair)
1* windlass handle
1* Installation Guide
The listing price does not include any destination duties/taxes/custom fees/etc. that will be due when the product arrives at destination countries/regions. It is the customer's responsibility to pay for all custom duty/taxes/custom fees if any.
