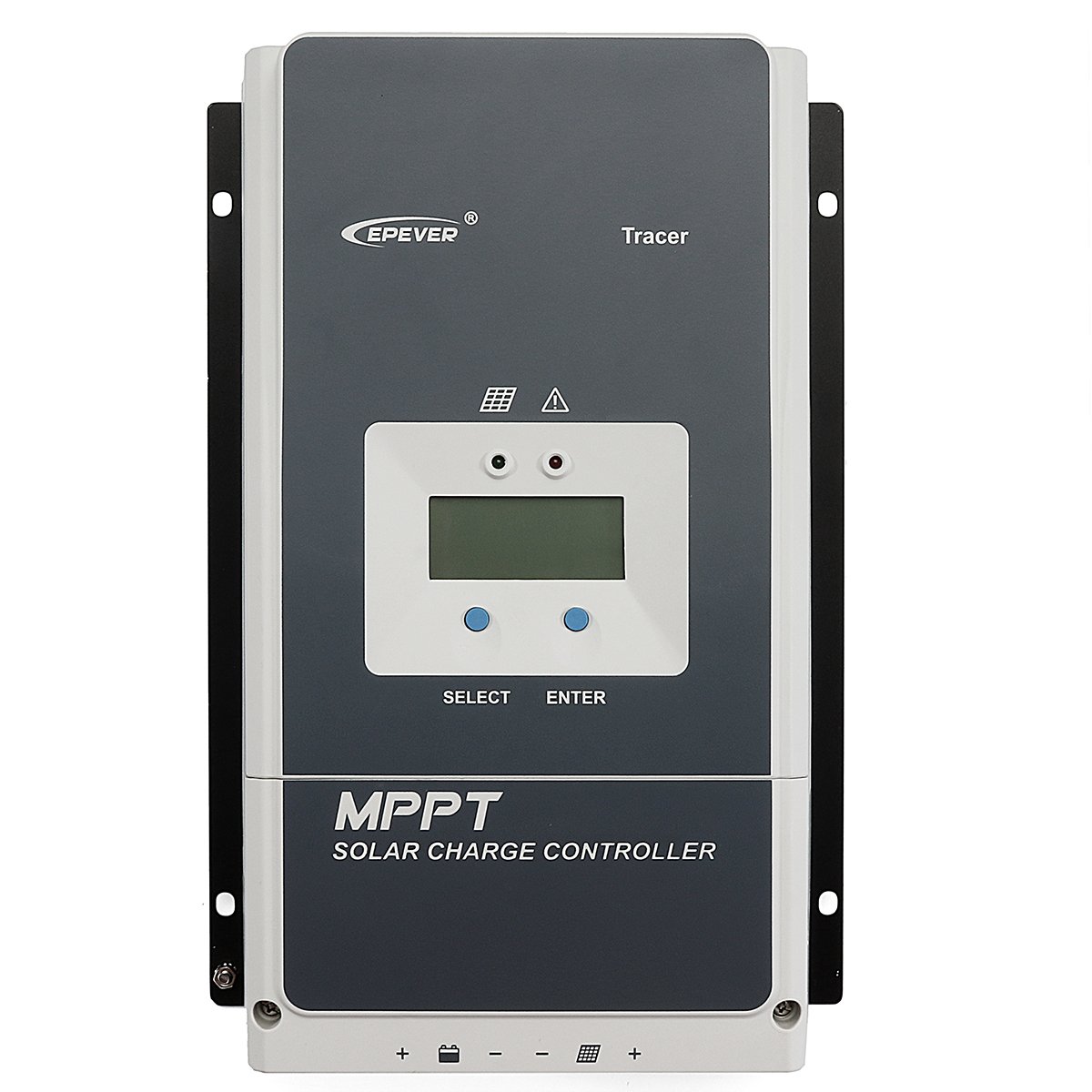

Specifications:Model: Tracer6415ANNominal System Voltage: 12/24/36/48VDC or AutoBattery Input Voltage Range: 8V~68VBattery Type: Sealed/Gel/Flooded/UserRated Charge Current: 60ARated Charge Power: 750W(12V) 1500W(24V) 2250W(36V)  3000W(48V)Max. PV Input: 150V (At minimum operating environment temperature)Circuit Voltage: 138V (At 25℃ environment temperature)Temperature Compensate Coefficient: -3mV/℃/2V (Default)Self-consumption: 98mA/12V;60mA/24V;50mA/36V;46mA/48VGrounding: Common negativeSize: Approx. 23.5x33.5x12cm / 9.25x13.19x4.72" Features:High quality and low failure rate components of ST and IR ensure the product’s service life100% charging and discharging in working environment temperature rangeMaximum DC/DC transfer efficiency as high as 98.7%Advanced MPPT technology & ultra-fast tracking speed guarantee tracking up to 99.5%Advanced MPPT control algorithm minimize the MPP loss rate and loss timeAccurate recognition and tracking of multiple-peaks maximum power pointWide MPP operating voltage rangeLimit the charging power and current over rated valueSupport 4 charging options: Sealed, Gel, Flooded and UserBattery temperature compensation functionReal-time energy statistics functionAutomatic over-temperature power reduction functionLoad relay control to realize diversified load work modesAuto-control of utility and generator relay designRemote temperature sensor and remote voltage sensor design, collect more accurate data of battery temperature and voltage valueIsolated RS-485 with 5VDC/200Ma protected output for no power devices, with MODBUS protocolMonitor and set the parameters via mobile phone APP or PC software Package Included:1 x Solar Charge Controller1 x User Manual

More details:
