Specification:
Material:Copper
Flow switch and auto switch
220V/50HZ. Direct voltage is available if require.

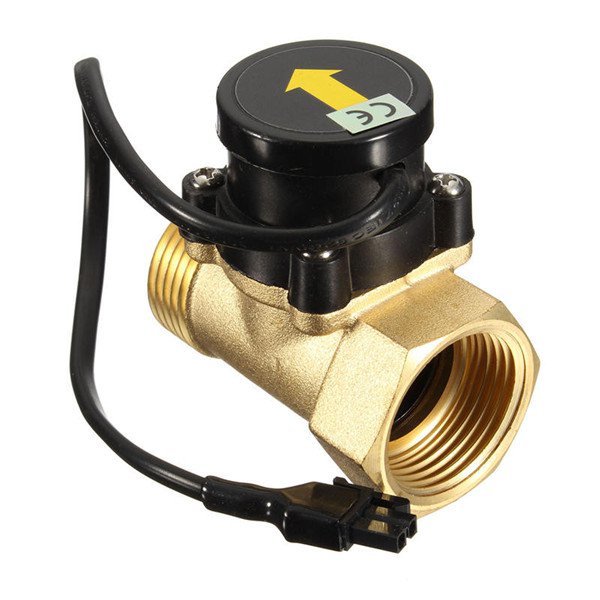

Size:as the picture show
Currect load:1.6A
Maximum load:800W
Hot water load power 200W
The starting pressure : 6-7L/min

Features:1. Stable performance: in the design of the induction chamber, magnetic control room, electronic components room separation, to avoid the iron material in the pipeline by magnetic material adsorption, so as not to switch failure.2. High temperature: the use of high temperature materials, the product can be used in hot and cold water conditions. The maximum temperature up to 70 в„ѓ.3. Low water pressure start: The return spring uses the stainless steel material, It can start when the water pressure> 0.03KG, achieved the low water pressure to open the water pump the function.4. Security: the use of electronic components as a control device, so that it is no spark in the work.5. Specifications:The use of media: tap water and similar physical and chemical properties similar to the liquid.Medium pressure: <0.6MpaMedium temperature: <70 в„ѓ
Note:
1.After turning on the tap the flow wil push the plate to rotate.
2.At a given positon the induction componet will be activated and the switch is on.
3.The pump starts.the spring will force the plate to rotate back after turning off the tap.the induction component will be shut off and the pump stops.

Package Included:
1×Water Pump Flow Switch

More Details:
