Description:

A wind generator is a device that converts the wind's kin-etic energy into electrical energy. Vertical-ax-is wind generators (or VAWTs) have the main rotor shaft arranged vertically. One advantage of this arrangement is that the generator does not need to be pointed into the wind to be effective, which is an advantage on a site where the wind direction is highly variable. It is also an advantage when the generator is integrated into a building because it is inherently less steerable. Also, the generator and gea-rbox can be placed near the ground, using a direct drive from the rotor assembly to the ground-based gea-rbox, improving accessibility for maintenance.Superiority:1. The lantern style is more three-dimensional and unique with it's compact shape, features the lowest start up wind speed, windward area is much larger, enabling it to generate power at lower wind speeds.
2. High-quality nylon fiber blades, durable, anti corrosion and reliable, have stronger wind resistance.
3. Humanized and convenient flange design, easy to install and maintain.
4. The use of dual-bearing fixed, fan movement is more stable. Low vibration and low noise.
5. Generator using the three-phase permanent magnet AC synchronous generator. High power and low loss.
6. With a special rotor design, reducing the resistance of the generator and increasing the revolving speed of the blades.
7. Using high-power tracking intelligent microprocessor control, effective regulation of current and voltage. Making a better matching between wind wheel and generator.Application:1. For home use
2. For monitoring use
3. For boat/ marine use
4. For wind solar hybrid streetlight useSpecifications:
Color: Red, WhiteNumber of blades: 5Rated voltage: 12V/24VRated power: 800WWheel diameter: 90cmRated wind speed: 11m/sSafe wind speed: 45m/sStart-up wind speed: 2m/sBlades material: Nylon fiberGenerator case: Casting aluminum alloyControl system: Electromagnet/wind wheel yawSpeed regulation: Automatically adjust windward directionGenerator: Three phase permanent magnet ac synchronous generatorWorking temperature: -40в„ѓ-80в„ѓ

Features:

1. Low wind speed start-up(2m/s), high wind power utilization, light,cute, low vibration.
2. Human-friendly design,easy to install and maintain.
4. Blades using reinforced glass fiber, helped with optimized structure and aerodynamic shape, it enhanced wind power coefficient and power generating capacity.
5. Using patented permanent magnet generator and special stator, it effectively reduces torque resistance and guarantees the stability .

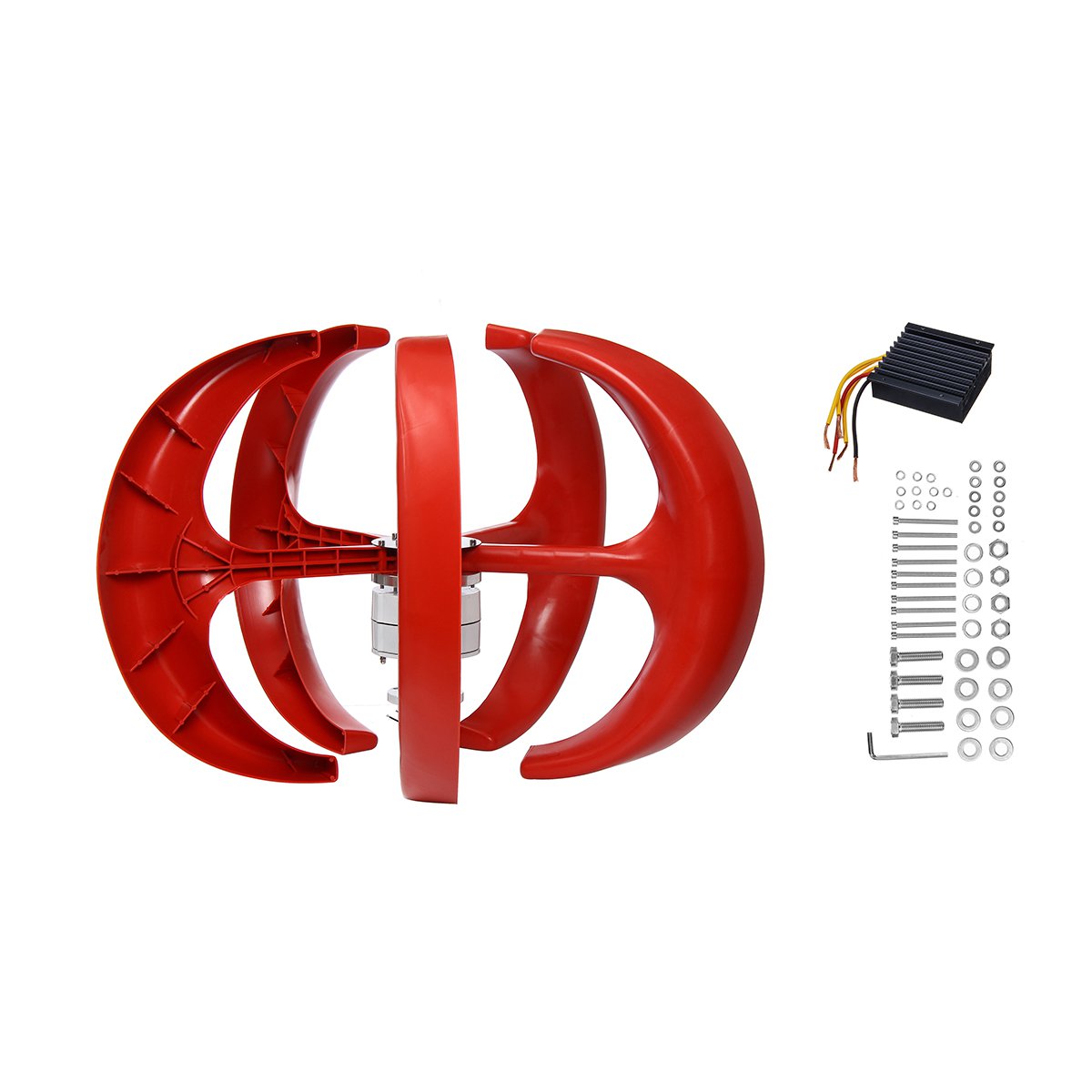

Packaged included:

1X Wind Generator
1X Controller
1X Mounting Accessories Bag
