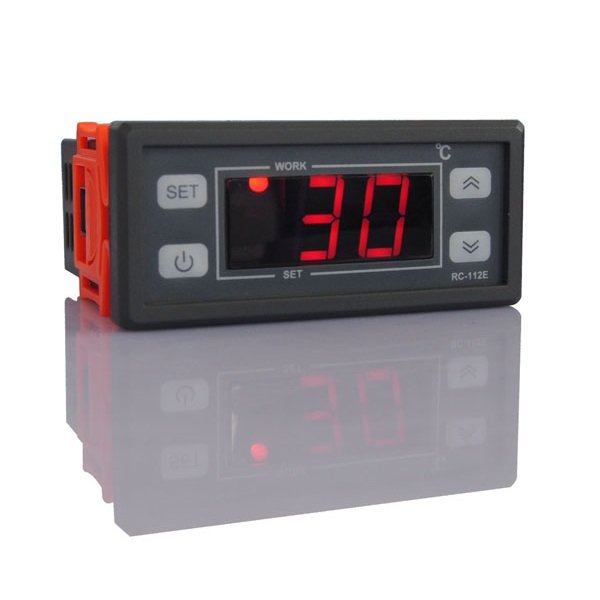

RC-112 220V/110V 10A Digital LCD Thermostat Regulator Temperature Controller
More than 10 available
Details
Shipping: Australia: $4.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Features :
A mini temperature controller.
With large and clear LCD display for better readability.
Wide temperature measuring range.
Heating and cooling control.
Temperature calibration function.
Delay protection function.
All parameters can be set to default setting after short circuit.
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, bolier, steamer, industrial equipments and other temperature-controlled systems.
Specifications :
Temperature measuring and controlling range : -40 - 99°C
Relay capacity of Compressor options : 10A
Power options : 220VAC, 110VAC
Input : 1 NTC sensor; sensor wire : 2m(standard)
Accuracy : ±1°C; Resolution : 1°C
Consumption : ≤3W
Cut-out size : 71 x 29(mm)
Ambient requirements : temperature : -10 - 60°C; humidity : 20 - 85% (No condensate)
CodeFunctionSetting rangeDefaultUnitHCMode optionC : refrigeration H : heatingC/DControlling-temp. differential1 - 153в„ѓLSLower Temp.limit-40 - settung Temp.-40в„ѓHSUpper Temp.limitSetting Temp. - 9999в„ѓCATemp. calibration-5 - 50в„ѓPTCompressor delay0 - 153Min
Package includes :
1 x RC-112 Temperature Controller (110V, 220V for optional~)
1 x 2M NTC sensor
1 x User manual
Download E-User Manual вњвњвњ
Details pictures :
A mini temperature controller.
With large and clear LCD display for better readability.
Wide temperature measuring range.
Heating and cooling control.
Temperature calibration function.
Delay protection function.
All parameters can be set to default setting after short circuit.
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, bolier, steamer, industrial equipments and other temperature-controlled systems.
Specifications :
Temperature measuring and controlling range : -40 - 99°C
Relay capacity of Compressor options : 10A
Power options : 220VAC, 110VAC
Input : 1 NTC sensor; sensor wire : 2m(standard)
Accuracy : ±1°C; Resolution : 1°C
Consumption : ≤3W
Cut-out size : 71 x 29(mm)
Ambient requirements : temperature : -10 - 60°C; humidity : 20 - 85% (No condensate)
CodeFunctionSetting rangeDefaultUnitHCMode optionC : refrigeration H : heatingC/DControlling-temp. differential1 - 153в„ѓLSLower Temp.limit-40 - settung Temp.-40в„ѓHSUpper Temp.limitSetting Temp. - 9999в„ѓCATemp. calibration-5 - 50в„ѓPTCompressor delay0 - 153Min
Package includes :
1 x RC-112 Temperature Controller (110V, 220V for optional~)
1 x 2M NTC sensor
1 x User manual
Download E-User Manual вњвњвњ
Details pictures :
