Feature:
Applicable power supply: DC 6V
Working environment: temperature 0-40 ° C, relative humidity <80%
Media flow direction: the flow direction of the peristaltic pump depends on the positive and negative connection of the power supply, and the terminal can be arbitrarily selected positive and negative.
With pump tube (IDxOD): 1X3/2X4/3X5 (inner diameter X outer diameter)

Flow range: 23ml/min -150ml/min
Type1:1X3 23ml/min
Type 2:2X4 65ml/min,
Type 3:3X5 150ml/minSpeed range: 0.1-60 RPM
Current: 250-300mA
Motor ruler: diameter 32 x height 23 (mm)
Installation hole center distance: 48.5mm

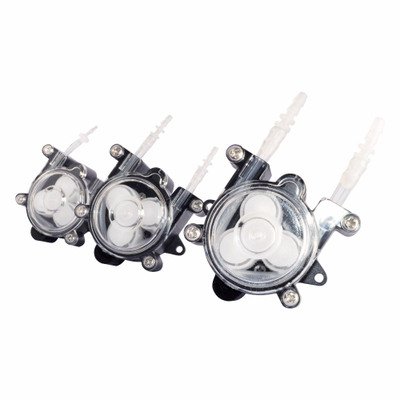

Miniature peristaltic pump full set weight: 0.15Kg

The Peristaltic Dosing Pump has been widely used in experiments, biochemical analysis, pharmaceutical, fine chemicals, bioengineering, pharmaceutical filling, food, paper, ceramics, water treatment, environmental protection, powder and other fields.

Applications:вњ” Food: liquid packing, fillingвњ” Factory: liquid packing, fillingвњ” Family: flowers watering, bonsai irrigationвњ” Printing: ink transmission, pipeline cleaningвњ” Chemical Industry: liquid transmission, sampling, fillingвњ” Environmental Protection: sewage sampling, transmissionвњ” Experiment: liquid packing, distribution, quantitative extraction, fillingвњ” Medical Care: matching with equipment, liquid transmission, sampling, filling

Package included:
1XPump
