Description:

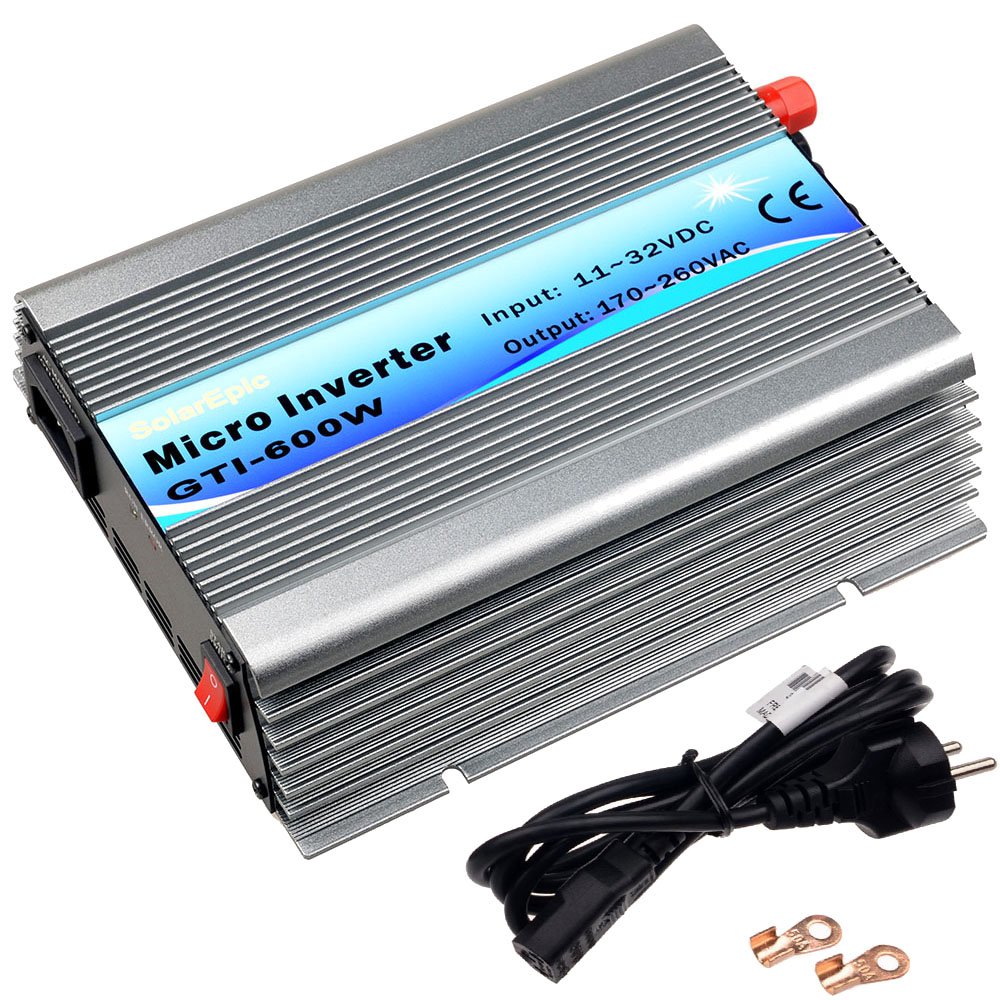

* Solar Grid Tie Inverter is a device that directly converts DC power into a sine wave current in phase with the same frequency of the grid and feeds this power into the grid. It is the key equipment of solar power generation system. The micro-inverter is specifically designed to accommodate component-level modular power generation systems, covering mainstream 18V photovoltaic panels, 24V photovoltaic panels, 36V single crystal or polycrystalline photovoltaic panel applications. The product is stable and reliable with high conversion efficiency and is the preferred equipment for photovoltaic power generation systems.

Specification:
Type A: DC18V to AC110V (10.8-30V Available)Rated Power:600WDC Input Range:10.8-30VMPPT Voltage:15-22V DCAC Output:110VFrequency:50Hz/60Hz(Automatic detection)
Net Weight: 1.3kgSize: Approx.29.5 x 20.5 x 11.5cm
Working temperature: -25 ° C to 65 ° CCooling method: FanProtection: Island protection, short circuit protection, reverse connection protection, low voltage protection, high voltage protection, high temperature protection, etc.
(Island protection: If there is an accident during power consumption, the inverter will be protected and will not be damaged.)
 Type B: DC18V to AC220V (11-32V Available)Rated Power:600WDC Input Range:22-60VMPPT Voltage:15-22V DCAC Output:220VFrequency:50Hz/60Hz(Automatic detection)Net Weight: 1.3kgSize: Approx.29.5 x 20.5 x 11.5cm
Working temperature: -25 ° C to 65 ° CCooling method: FanProtection: Island protection, short circuit protection, reverse connection protection, low voltage protection, high voltage protection, high temperature protection, etc.
Type C: DC24/36V to AC110V (20-45V Available)Rated Power:600WDC Input Range:24/36VMPPT Voltage:24-39V DCAC Output:110VFrequency:50Hz/60Hz(Automatic detection)
Net Weight: 1.3kgSize: Approx.29.5 x 20.5 x 11.5cm
Working temperature: -25 ° C to 65 ° CCooling method: FanProtection: Island protection, short circuit protection, reverse connection protection, low voltage protection, high voltage protection, high temperature protection, etc.
Type D: DC24/36V to AC220V (120-45V Available)Rated Power:600WDC Input Range:24/36VMPPT Voltage:24-39V DCAC Output:220VFrequency:50Hz/60Hz(Automatic detection)Net Weight: 1.3kgSize: Approx.29.5 x 20.5 x 11.5cm
Working temperature: -25 ° C to 65 ° CCooling method: FanProtection: Island protection, short circuit protection, reverse connection protection, low voltage protection, high voltage protection, high temperature protection, etc.

Features:
1. Unique circuit design, using imported industrial grade electronic components, the product application efficiency is higher, the performance is more stable;2. The original MPPT technology, the efficiency is >99%, the reaction is more sensitive, and the maximum power point locking is more secure.3. Parallel modular design, small size, distributed installation. Convenient system configuration, flexible combination, and strong system scalability.4. Use isolated high frequency transformer, high efficiency and high safety.5. Complete electrical protection function.6. Aluminum alloy casing, no rust, heat and cold resistance, anti-corrosion.7. Has a number of core technology patents for electronic circuit design, design and other products.

Package Included:
1 x Solar Grid Tie Inverter1 x AC Cord
