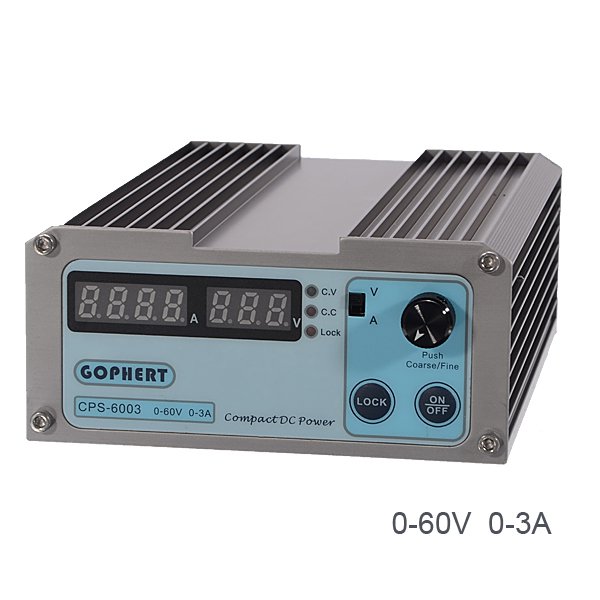

Description: CPS-6003 60V 3A DC 110V/220V High Precision Compact Digital Adjustable Switching Power Supply Features:  Top performance cost ratio
High power density, smallest and compact
Aluminum shell, lower EMI
The microprocessor(MCU) control
Using Encoder to set the voltage and current
Four digital volt meter and three digital current meter
The current meter displays mA automatically when current below 1A

High efficiency, up to 88%.
Low Ripple & Noise: ≤ 30 mVp-p.
Output ON/OFF
LOCK switch
110V/220V main AC power input selectable
Intelligent protection: Tracking OVP, Tracking OCP, OTP, Output short circuit protection Specification:

ModelCPS-6003Operation Voltage Range95-132Vac OR
198 – 264VacOperation Frequency Range45 – 65HZOutput Voltage Range0 – 60VOutput Current Range0 – 3AEfficiency (220Vac/full load)≥ 87%Full Load Input Current(220Vac)≤1.4ANo Load Input Current(220Vac)≤ 80mAVolt Meter Accuracy≤ 0.3% + 1 digitsCurrent Meter Accuracy≤ 0.3% + 2 digitConstant Voltage Load Regulation (0-100%)≤ 30mVLine Regulation(198-264Vac)≤ 10mVRipple & Noise (Peak-Peak)≤ 30mVRipple & Noise (r.m.s)≤ 3mVSet Accuracy≤ 0.3% + 10mVTransient Response Time (50%-100% rated Load)≤ 1.0msConstant Current Load Regulation(90%-10% Rated Voltage)≤ 50mALine Regulation (198-264Vac)≤ 20mARipple & Noise (Peak-Peak)≤ 30mAp-pSet Accuracy≤ 0.3% + 20mASize(width× height× depth)120×55×168mmNet Weight0.85KG Package includes:  1 x Adjustable Switching DC Power Supply1 x AC Power cable Details pictures:
