Product description

Features:

• Plug and Play, no installation required！
• Function: Bluetooth V5.0
• Bluetooth Function (Blue led indicator mode):
*Bluetooth A2DP music streaming to Mercedes-Benz MMI MDI system
*Supports pairing with two bluetooth device to play music
*Pair your Smartphone,pad,etc with the bluetooth module and choose AUX in Audio selection.
*You can only track up and down from Phone or Pad, not from car.
• USB function (Red led indicator mode):
*Play USB flash musics via Mercedes-Benz MMI MDI system
*Displays song info and control tracks via MMI system
*Charge smart phone via USB connection
• Cable Length:35CM

NOTE:
• Please make sure your car comes with an MMI MDI interface before placing your order. The original box/Connector of MMI MDI must be there/installed in original audio host, and which is usually in glove box or center armrest box, (With MMI Plug for iPod, This cable only interfaces the audio all other controls must be made on the audio device itself.)

• In bluetooth mode, no content is displayed on the head unit screen. Can not be controlled the music from wheel steering.

Support Models:

2009-2016 S-Class, SL-Class, CLS-Class, CL-Class,SLK-Class, C-Class(NOT FOR C300) ,E-Class, GLK-Class,ML-Class and R-Class, also compatible with other Mercedes car with AMI Media Interface.

User instruction:

Function keys
Mode button: press once to enter Bluetooth mode, then press again to enter USB flash drive mode

indicator light
Mode Indicator: In Bluetooth mode, the blue light is on, before no pairing, the blue interval flashes; after successful pairing, the blue light is always on.

Interface
USB port: in USB flash drive mode, the red light is always on; after inserting the USB flash drive, the wait time for reading is about 10 seconds.

Function Description.
Connecting a mobile phone, first connect the Bluetooth music adapter to your car, while the car DVD or CD player is working. Please adjust the car DVD/CD to AUX mode. Bluetooth music adapter is in working mode, the indicator light turns blue and will blink intermittently, wait for the connection with the phone pair. Turn on your phone's Bluetooth, click on Search Bluetooth devices until the phone finds "BT Speaker", click on pairing, the blue light will blink, and wait for the phone to pair with it. The light always on means pairing is successful.
Note: When the red light is on, you need to wait for the radio to read the files on the USB flash drive, which takes 10-15 seconds, please wait patiently. In addition, Bluetooth mode does not support the radio to control the phone function, USB flash drive mode supports the radio to control the up and down selection of songs.

Package included:

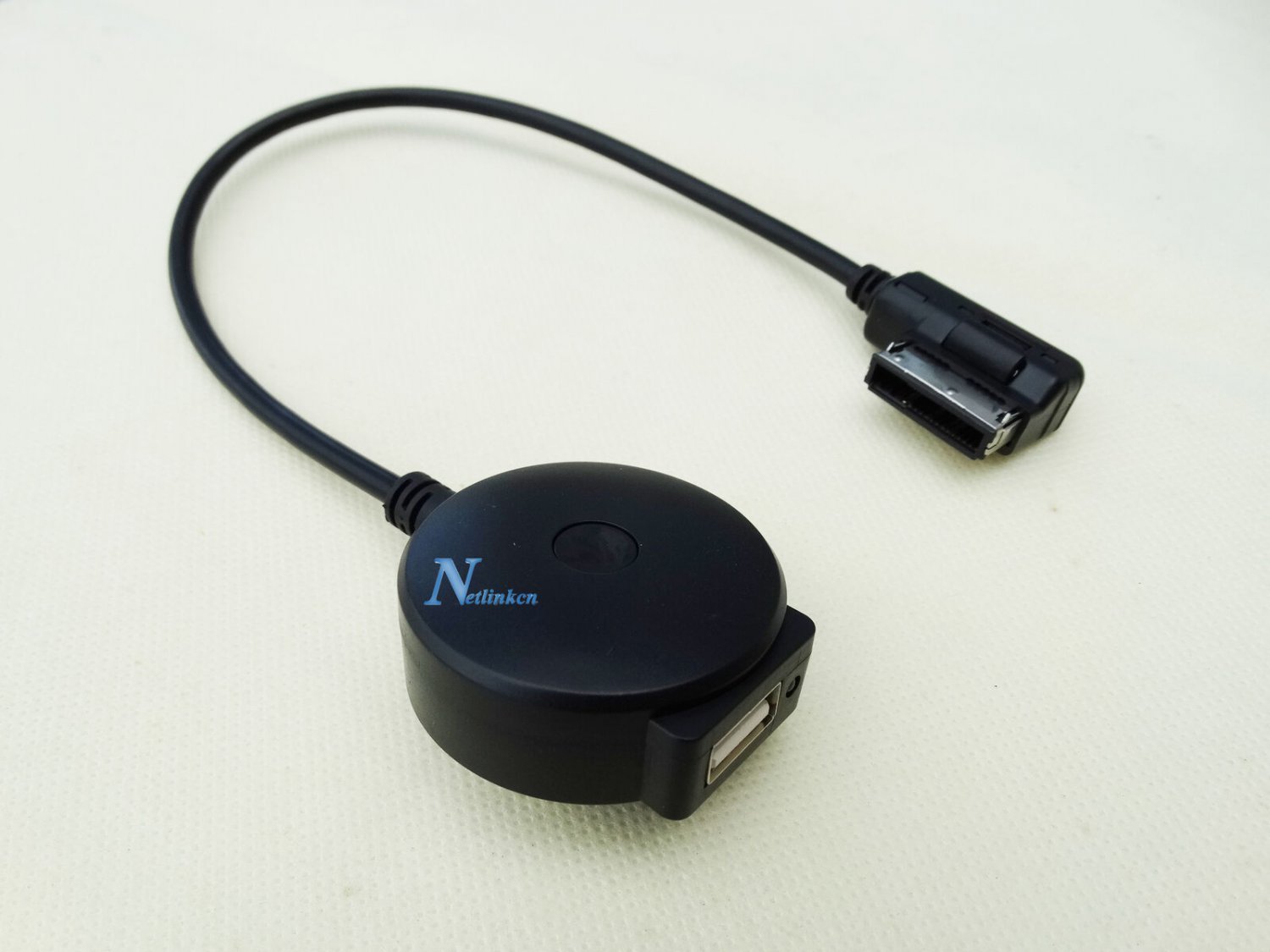

1 x Mercedes Benz BLUETOOTH ADAPTER

************************************************************************************************
