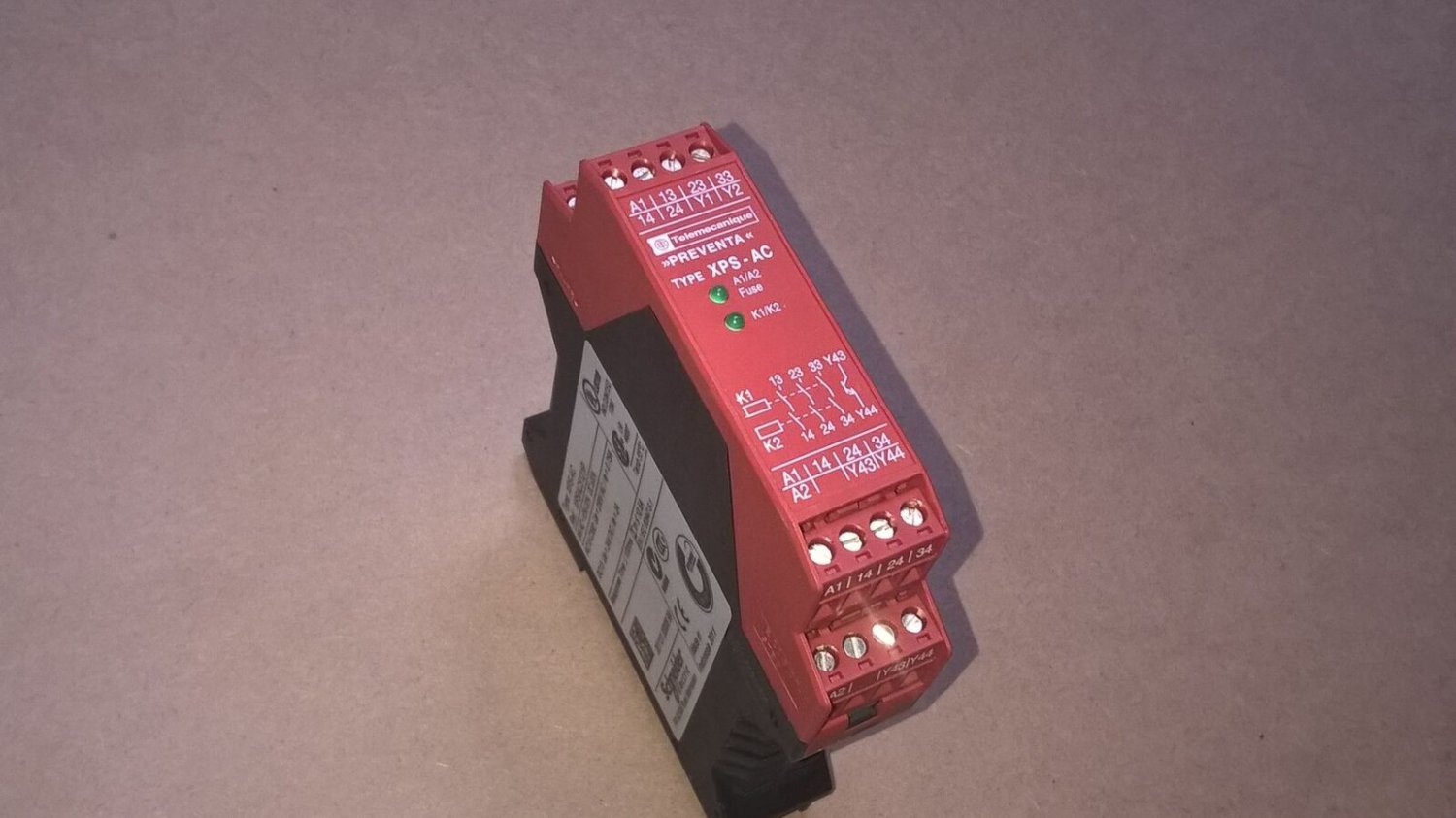

Telemecanique Schneider Preventa XPSAF5121P 24 V AC/DC Safety Relay XPS-AF

Telemecanique Schneider Preventa XPSAF5121P 24 V AC/DC Safety Relay XPS-AF We gladly ship worldwide*! Module XPSAC - Emergency stop - 24 V AC DC range of product Preventa Safety automation product or component typePreventa safety module safety module nameXPSAC safety module application For emergency stop and switch monitoring function of moduleEmergency stop Switch monitoring safety level Can reach PL e/category 4 conforming to EN/ISO 13849-1 Can reach SILCL 3 conforming to EN/IEC 62061 safety reliability data DC > 99 % conforming to EN/ISO 13849-1 MTTFd = 210.4 years conforming to EN/ISO 13849-1 PFHd = 3.56E-9 1/h conforming to EN/IEC 62061 type of startUnmonitored connections - terminals Captive screw clamp terminals, removable terminal block, clamping capacity: 2 x 0.5...2 x 1.5 mmflexible cable with cable end, with double bezel Captive screw clamp terminals, removable terminal block, clamping capacity: 1 x 0.2...1 x 2.5 mmflexible cable with cable end, with double bezel Captive screw clamp terminals, removable terminal block, clamping capacity: 1 x 0.2...1 x 2.5 mmsolid cable with cable end, with double bezel Captive screw clamp terminals, removable terminal block, clamping capacity: 1 x 0.25...1 x 2.5 mmflexible cable with cable end, with double bezel Captive screw clamp terminals, removable terminal block, clamping capacity: 2 x 0.2...2 x 1 mmsolid cable with cable end, with double bezel Captive screw clamp terminals, removable terminal block, clamping capacity: 2 x 0.2...2 x 1.5 mmflexible cable with cable end, with double bezel Captive screw clamp terminals, removable terminal block, clamping capacity: 2 x 0.25...2 x 1 mmflexible cable with cable end, with double bezel output type Relay instantaneous opening 3 NO, volt-free number of additional circuits 1 solid state output [Us] rated supply voltage 24 V AC (- 20...10 %) 24 V DC (- 20...20 %) Complementary supply frequency 50/60 Hz power consumption in W power consumption in VA [Uc] control circuit voltage24 V breaking capacity C300: 180 VA, AC-15 (holding) relay output C300: 1800 VA, AC-15 (inrush) relay output breaking capacity 1.5 A at 24 V (DC-13) time constant: 50 ms for relay output output thermal current 6 A per relay relay output [Ith] conventional free air thermal current 10.5 A associated fuse rating 4 A fuse type gG or gL for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 6 A fuse type fast blow for relay output conforming to EN/IEC 60947-5-1, DIN VDE 0660 part 200 minimum output current 10 mA relay output minimum output voltage 16 V for relay output response time on input open [Ui] rated insulation voltage 300 V (degree of pollution: 2) conforming to DIN VDE 0110 part 1 300 V (degree of pollution: 2) conforming to IEC 60947-5-1 [Uimp] rated impulse withstand voltage 4 kV overvoltage category III conforming to IEC 60947-5-1 4 kV overvoltage category III conforming to DIN VDE 0110 part 1 local signalling 2 LEDs current consumption 40 mA at 24 V DC (on power supply) 90 mA at 24 V AC (on power supply) mounting support 35 mm symmetrical DIN rail product weight 0.35 lb(US) (0.16 kg) Environment standards EN/IEC 60947-5-1 EN/ISO 13850 EN 60204-1 EN 1088/ISO 14119 product certifications UL T CSA IP degree of protection IP20 (terminals) conforming to EN/IEC 60529 IP40 (enclosure) conforming to EN/IEC 60529 ambient air temperature for operation 14...131 (-10...55 ) ambient air temperature for storage -13...185 (-25...85 ) Ordering and shipping details Category 22477 - SAFETY MODULES (PREVENTA) Discount Schedule SAF2 GTIN 00785901297581 Nbr. of units in pkg. 1 Package weight(Lbs) 0.41999999999999998 Returnability Y Country of origin ID Don't forget to place your buy. By looking on this product you agree to the following terms: Shipping Terms: Buyer pays all shipping costs. Let us know if there is an issue with the shipping costs, as they are automatically calculated by eCRATER. Shipments made to California must include 7.75% sales tax unless we are provided with a valid resale certificate. We reserve the right to ship with Fedex ground, USPS and any other carrier in the best interests of the buyer and seller. The Parcel post option is only available to alaska, Hawaii, and US territories only. If you select parcel post and you live in the lower 48 states you package may be sent by another carrier and/or an additional shipping amount may be required. If the shipping cost quoted is over $150, that means it will be shipped freight, and the price quoted is for pickup at a freight terminal nearby your location (usually within 25 mi if you are in a major US city). if you need residential delivery, or if you don't have a forklift/loading dock the price will be higher in some cases. Payment Terms: Payment is to be made by PayPal Please contact us if you have any questions about eCRATER's recent payment policy change. Payment is to be received within ten days of close of product. Should payment not be received within ten days the item will be re-listed and high buyder will forfeit. International Terms: (These terms only apply to international shipments.) Buyer is responsible for all brokerage, customs, and or duty charges. *Not all items are available for international shipment due to import/export regulations. In the event that we are unable to ship to buyers country, buyer will receive a full refund. Payment must be made in US Dollars. Money must be drawn against a US bank. Warranty Terms: No warranty nor guarantee is expressed or implied regarding: usability, functionality, merchantability, or cosmetic appearance of the item(s) in product. What you see in the picture(s) is what you get nothing more nothing less. Test results of item(s) in product are described to the best of our ability in the ad. The results of all tests that are performed are disclosed in the ad. Items sold as "Untested" are simply that we have been unable to test the item(s) due to missing cables/adapters/toner cartridge/ksu/etc, lack of time, or other restrictions, Such as when we sell a laptop that we don't have an AC adapter for. Our only guarantee is that you will receive the make and model listed in the ad. The maximum liability of BigonBusiness (the seller) is the high buy of the product. Return Terms: Returns are only allowed under cases of gross misrepresentation in the ad, such as when we describe a monitor as a fax machine. Such claims of misrepresentation must be filed within three days of receipt of shipment. Best Stuff To You reserves the right to replace the item(s) or refund the high buy solely at our discretion. Item must be returned in the original box and packaging. buyder must request a RMA number before returning item(s). Packages returned without a RMA number will become property of Best Stuff To You ten days after receipt unless buyer has paid return shipping within the ten day period. Shipping Damage Terms: Seller will file a shipping claim(s) upon behalf of the buyer with common carrier in the event shipment(s) is/are damaged during shipping, provided buyder has purchased insurance. Not retaining the original box and packaging may affect the carriers decision on a claim. Seller will commence filing the claim once buyer has filed the damage report with the seller. Buyer must notify seller within 48 hours of receipt of a damaged shipment. Medical Equipment Terms: The sale of these items may be subject to regulations by the U.S. FDA and state and local regulatory agencies. If so, you may not be able to buy on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item. Seller: Daniel Rydell San Diego, CA contact via eCRATER messages. If any provision of this product Contract is held unenforceable, All remaining provisions of this Contract shall remain in full force and effect. Copyright 2017 BigonBusiness - All Rights Reserved.
