$23.27
On Hold

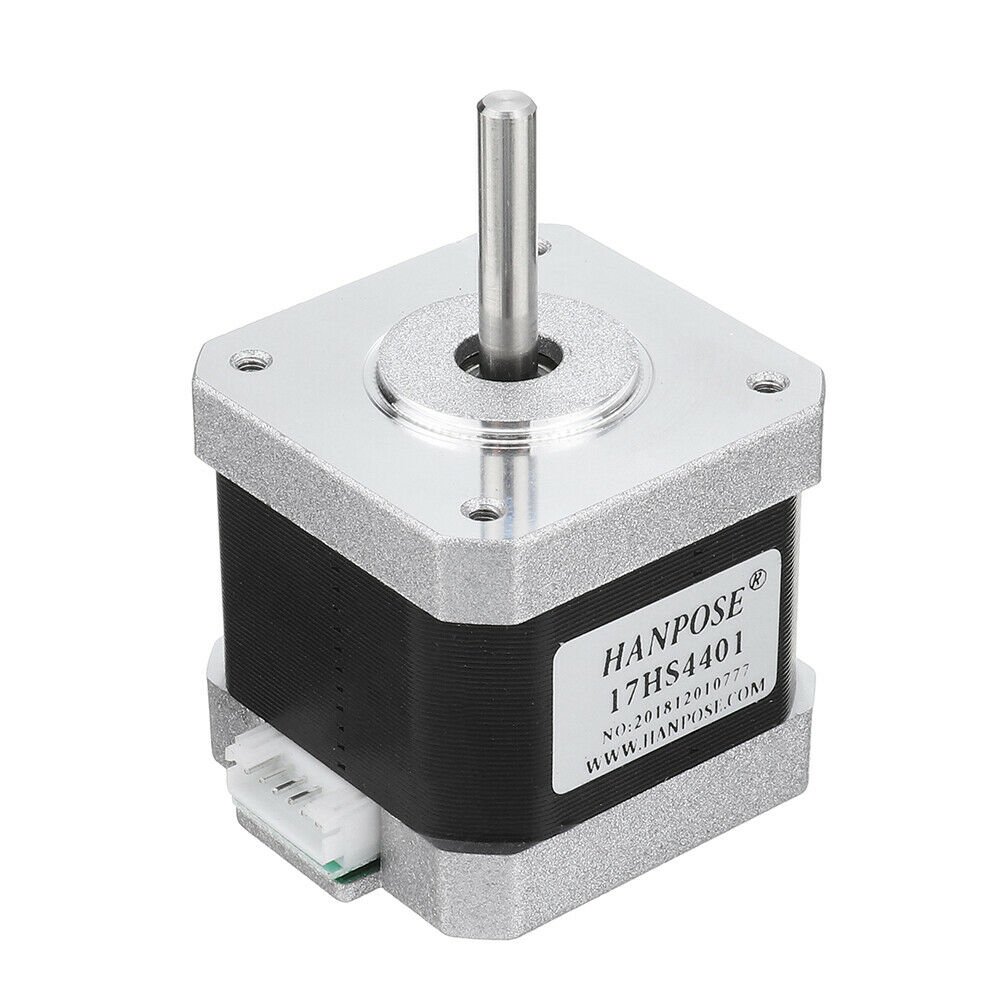

HANPOSE 17HS4401 40mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.7A 40N.cm 4-lead
2 available
Details
Shipping: Australia: free (more destinations)
Condition: Brand new
Returns: 7 days, buyer pays return shipping (more)
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Description: HANPOSE 17HS4401 40mm Nema 17 Stepper Motor 42 Motor 42BYGH 1.7A 40N.cm 4-lead For CNC 3D printer Certification: CE, ROSH, ISO, FCC Specification: Model 17HS4401 Phase 2 Step Angle 1.8° Motor Size 42 x 40mm Shaft "D" shaft 21 x Ф5mm Outlet way "4" plug line Motor leads Dupont line(1M) Adapter drive Two-phase step drive Scope 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, Laser engraving, Automation Equipment, Non-standard Equipment, Placement machine ect. Electrical Specifications: Model No. Step Angle Motor Length Rated Current Resistance /Phase Inductance /Phase Holding Torque Couple Relaxing Inertia Of Rotor Lead ( °) (L)mm (A) (Ω) (mH) (N.cm) (N.cm) (G. cm²) (No.) 17HS4401 1.8 40 1.7 1.5 2.8 40 2.2 54 4 General Specification: Precision angle step ±5% (full step, no charge) Resistance accuracy ±10% Precision inductance ±20% Temperature rise 80deg Max (rated current, 2 phase on) Ambient temperature ( - 20°)-(+ 50°) Insulation resistance 100MΩ Min, 500VDC Insultion Force 500VAC for a minute Features: 1. Low noise. 2. Low heat. 3. Smooth operation. 4. Good acceleration performance. Package Included: 1 X 17HS4401 Stepper Motor More Details:
