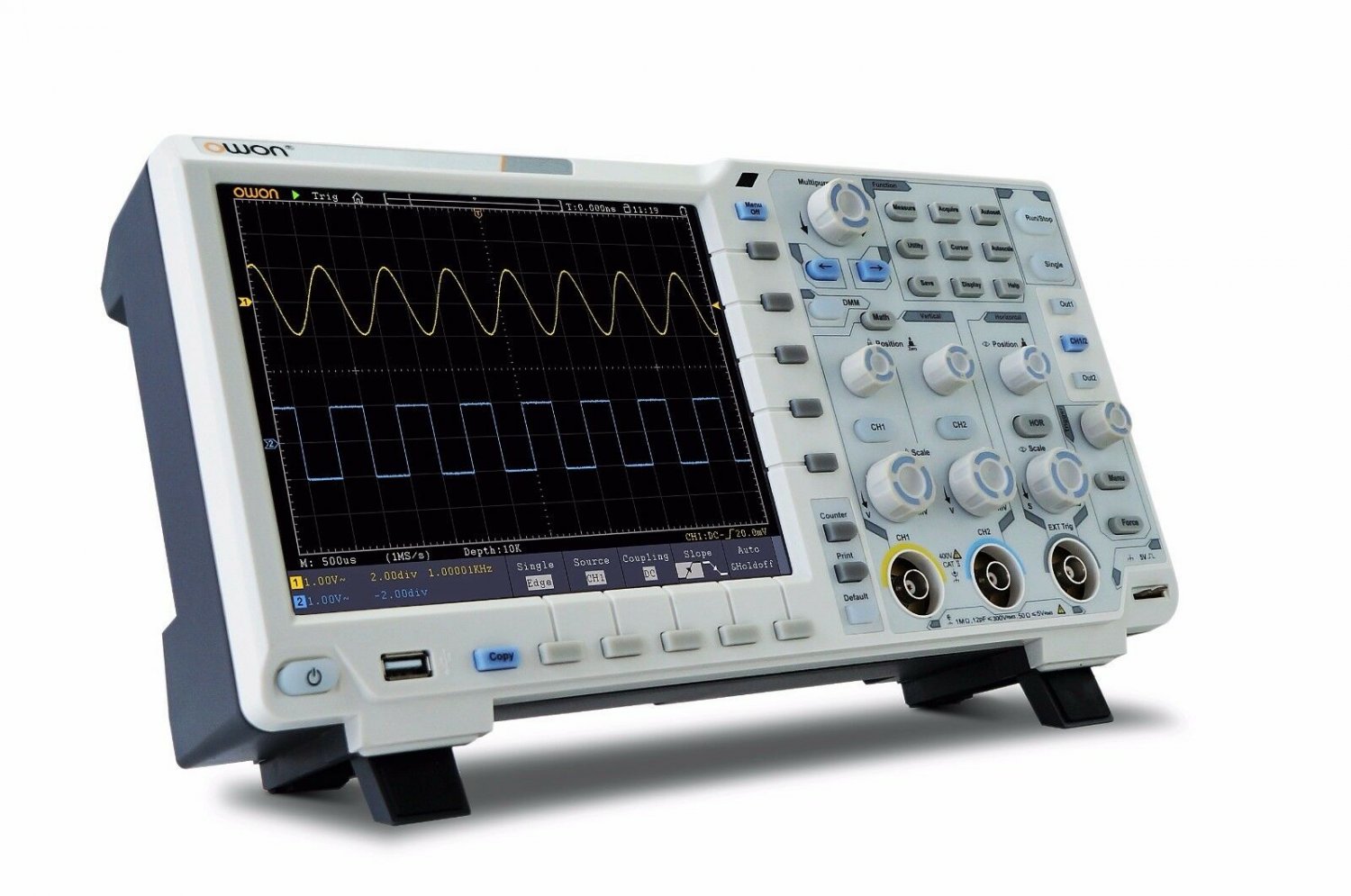

Model :OWON XDS3102AOWON XDS3102A 100Mhz/1G12B Oscilloscope + VGA +Battery+ I2C, SPI, RS232 and CAN + 25M 2channel AWG Main FeaturesGreat Surface Mount Components Organizer,- 12-bit high resolution ADC, restoring the waveform detail fully- 100 MHz bandwidth, 1GS/s sample rate- low background noise, vertical sensitivity in 1 mV/div - 10 V/div- based upon the 3rd generation technology platform - Xvisual- multi- trigger, and bus decoding function- functions as n-in-1 : data logger, multimeter, waveform generator, and digital storage oscilloscope- 8 inch 800 x 600 high resolution LCD Application　electronic circuit debugging circuit testing design and manufacture education and training ModelXDS3062AXDS3102A XDS3102XDS3202AXDS3202Bandwidth60MHz100MHz200MHzSample Rate1GS/s2GS/sVertical Resolution (A/D)12 bits8 bits12 bits8 bitsRecord length40MWaveform Refresh Rate75,000 wfms/sHorizontal Scale (s/div)2ns/div - 1000s/div, step by 1 - 2 - 51ns/div - 1000s/div, step by 1 - 2 - 5Rise Time (at input, typical)≤3.5ns≤1.7nsChannel2 + 1 (external)Display8" color LCD, 800 x 600 pixels (optional 1024 x 768 pixels IPS display)Input Impedance1MΩ ± 2%, in parallel with 15pF ± 5pF; 50Ω ± 2%Channel Isolation50Hz : 100 : 1, 10MHz : 40 : 1Max Input Voltage1MΩ ≤ 300Vrms; 50Ω ≤ 5VrmsDC Gain Accuracy±3%DC Accuracyaverage≥16：±(3% reading + 0.05 div) for △VProbe Attenuation Factor0.001X - 1000X, step by 1 - 2 - 5LF Respond (AC, -3dB)≥5Hz (at input, AC coupling, -3dB)Sample Rate / Relay Time Accuracy±1ppmInterpolationsin(x) / xInterval (△T) Accuracy (full bandwidth)Single: ±(1 interval time + 1ppm x reading + 0.6ns); Average > 16: ±(1 interval time + 1ppm x reading + 0.4ns)Input CouplingDC, AC, and GNDVertical Sensitivity1mV/div - 10V/div (at input)Trigger TypeEdge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (optional)Bus DecodingI2C, SPI, RS232, and CAN (optional)Trigger ModeAuto, Normal, and SingleTrigger Level±2000div (1mv/div), ±1000div (2mv/div), ±400div (5mv/div), ±200div (10mv/div), ±100div (20mv/div), ±40div (50mv/div), ±200div (100mv/div), ±100div (200mv/div), ±40div (500mv/div), ±20div (1v/div), ±100div (2v/div), ±40div (5v/div), ±20div (10v/div)Line / Field Frequency (video)NTSC, PAL and SECAM standardCursor Measurement△V, and △T between cursors, △V and △T between cursors, auto-cursorAutomatic MeasurementVpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge CountWaveform Math＋, －, ×, ÷, FFTWaveform Storage100 waveformsLissajou's FigureBandwidthfull bandwidthPhase Difference±3 degreesCommunication InterfaceUSB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)Frequency CounteravailablePower Supply100V - 240V AC, 50/60Hz, CAT IIPower Consumption＜15WFuse2A, T class, 250VBattery (optional)3.7V, 13200mADimension (W x H x D)340 x 177 x 90 mmWeight2.60 kg+ Multimeter (optional) SpecificationsFull Scale Reading3¾ digits (max 4000 count)Diode0V -1.5VInput Impedance10MΩContinuity Test
