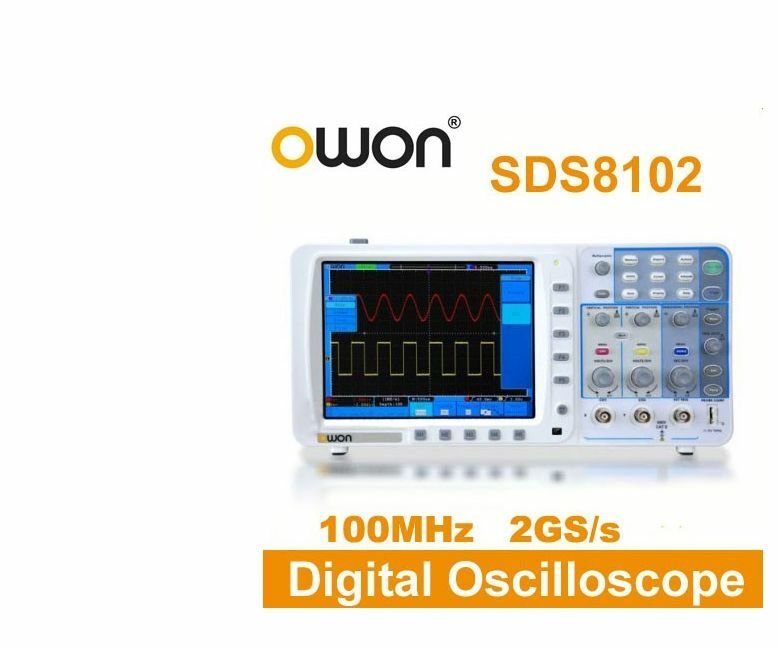

OWON SmartDS Series digital oscilloscope Product Series : Portable DSO SDS8102 Main Features- Bandwidth :100MHz- Sample rate : 2GS/s- 10M record length for each channel- Multi-function : auto-scale, Pass / Fail, and current-measuring- LAN remote control- Newly supported SCPI- Smart design with easy portability- Large 8 inch 800 x 600 pixels display- Optional battery availableApplicationelectronic circuit debugging circuit testing design and manufacture education and trainingautomobile maintenance and testingModel SDS6062 SDS7202SDS8102 SDS8202 SDS8302 SDS9302 Bandwidth 60MHz 200MHz 100MHz 200MHz 200MHz 300MHzSample rate(Real time) 500MS/s1GS/s2GS/s2GS/s2.5GS/s3GS/s Horizontal Scale(S/div) 5ns/div~100s/div, step by 1~2~5 2ns/div~100s/div,step by 1~2~51ns/div~100s/div, step by 1~2~5 Rise time (at input, typical) ≤5.8ns ≤3.5ns ≤1.7ns ≤1.7ns Channels Dual Display 8" color LCD,TFT display,800x600 pixels,65535 colors Dimension 340mm×155mm×70mm Weight Model SDS6062 SDS7102 SDS8102 SDS8202 SDS8302/9302 Vertical SystemVertical resolution (A/D) 8 bit Resolution (2 channels simultaneously )Vertical sensitivity 2mV/div~10V/div(at input)Displacement ±10div(5mV~10v) ±1V(2mV~200mV), ±10V(500mV~1V),±100V(2V~10V)Analog Bandwidth 60MHz 100MHz 200MHz 300MHzSingle bandwidth Full bandwidthlow frequency ≥ 5HzRise time (at input, typical) ≤5.8ns ≤3.5ns ≤1.7ns ≤1.17nsDC gain accuracy ±3%DC accuracy(Average) Average>16: ±(3% rdg + 0.05 div) for ΔV Measurement Cursor measurement ΔV and ΔT between cursors Automatic measurement Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time,Fall Time, DelayA→B , DelayA→B , +Width, -Width, +Duty, -Duty Waveform Math +, -, ×, / ,FFT Waveform storage 15 waveforms Lissajou’s figure Bandwidth Full bandwidth Phase difference ±3 degrees Communication interface USB, support USB flash disk storage USB,support USB flash disk storage,LAN Trigger Trigger level range ±6 divisions from screen center Trigger level accuracy ±0.3div Horizontal Trigger displacement Pre-trigger: 655 div,Post-trigger: 10 div Trigger Holdoff range 100ns~10s Edge trigger Rising, Falling Pulse Trigger Trigger status Positive pulse: >, , , ,
