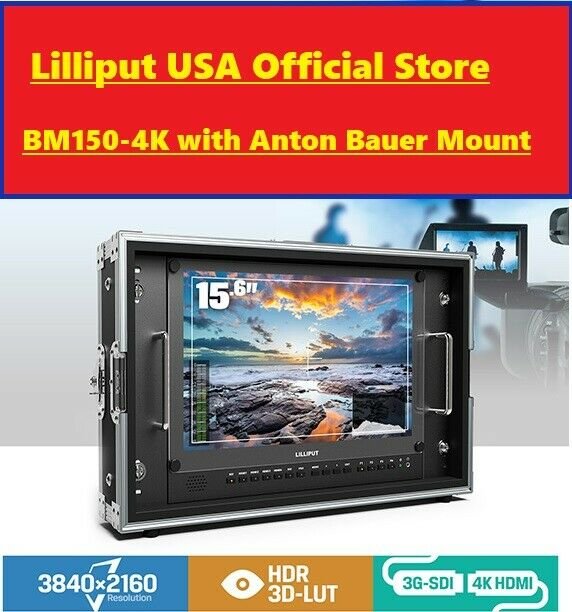

BM150-4KS With Anton Bauer Mount plate 15.6" Carry-on/Rackable 4K Broadcast Director Monitor with HDR, 3D-LUT, Color space & Peaking funcions.Carry-on 4K monitor4K (3840*2160) Ultra-HD native resolution , 15.6" perfect size for both suitcase & rackmount,HDR, 3D-LUT & Color space, Peaking, False color & Time code,High contrast: 1000:1,176° Ultra high viewing angle,Rich interfaces: 3G-SDI, HDMI, DVI, VGA, AV input,Wide voltage: DC12-24V. FEATURESØ Support multiple signal inputs 3G-SDI, HDMI, DVI and VGA.Ø Multiple View Display supports quad view split from different input singles simultaneously. Ø Ultra HD 4K screens containing 8.3 million pixel (3840×2160), so the resolution is four times that of Full HD.Ø 3D LUT for Accurate Color Reproduction and Color space display(Native/Rec.709/User1~User3).Ø Support to upload 3D LUT table via USB port.Ø Equip HDR function.Ø Image flip offers great convenience for user’s user to place the monitor with various mounting methods under different conditions. Users can view the monitor normally no matter what mounting angles. Ø Perfect size for both suitcase and rack mount. MENU SETTINGPlease check whether the device is connected well or not.3-1. F1~F4 user definable shortcut buttonsLong keep pressing any one of the 4 buttons for 3-5 seconds to activate shortcut menu setting. Option selected will be highlighted as white. option will be highlighted as yellow, unavailable option will be highlighted as gray. Select option via "◄/►" buttons.Then press "MENU" button to confirm to set as default option.Shortcut functions can be customized to meet user’s needs as following: NO. Shortcut Menu when long press any F shortcut button 1 Center Marker 2 Safety Marker 3 Aspect Marker 4 Aspect 5 Underscan 6 Check Field 7 Freeze 8 Pixel to Pixel 9 Peaking 10 False Color 11 Exposure (Only available under SDI mode) 12 Histogram(Only available under SDI mode) 13 Time Code (Only available under SDI mode) 14 Display Mode 15 Disp Mirror 16 Color Space Default options:F1：Color Space F2：Display Mode F3：Safety Marker F4：Aspect3-2. ◄ / ► Buttons OperationUnder non menu screen, press "◄/►" buttons to activate volume bar,Use "◄ / ►" buttons to select the desired option.Press the "MENU" button to select Volume, Brightness, Contrast, Saturation, Hue, Sharpness.3-3. MENU OperationWhen power on, press "MENU" on the device, the menu of function setting will display on the screen.Press "◄ / ►" button to choose menu；Then press "MENU" button to confirm；Press "EXIT" button to return / exit menu. 3-3-1. Picture Picture Brightness 0~100 Contrast 0~100 Saturation 0~100 Hue 0~100 Sharpness 0~4 Color Space Native/Rec.709/User1~User3 HDR Off/Auto/HDR10 Backlight Mode Standard/Outdoor/User Backlight 0~100 Temperature 9300/7500/6500/5800/User Red Gain 0~256 Note: Available only under “User” mode. Green Gain 0~256 Blue Gain 0~256 BrightnessAdjust the general brightness of the LCD. For example, if it uses outside in bright conditions, increase the LCD brightness to make it easier to view. ContrastIncrease or decrease the range between the bright and dark areas of the image. High contrast can reveal detail and depth in the image, and low contrast can make the image appear soft and flat.SaturationAdjust the color intensity. Press "◄/►" buttons to increase or decrease the color intensity.HueIt means tint. Use this setting to choose the tint from 0 to 100.SharpnessIncrease or decrease the sharpness of the image. When the sharpness of image is insufficient, the value of sharpness can be increased to make the image clearer.Color SpaceSelects the color space from among [Native], [Rec.709] [User1~User3]：l Saturation/Hue/Color Temperature is only available under Native mode.l Select [AUTO] or [HDR10] mode under HDR function, the color space will be saved as Native mode automatically. It can be only changed to other color space mode by hand.l It supports to upload user-defined Lut table "User1~User3". - User-defined Lut table only support RGB format. If the format is not correct, please transform it to the correct format by using tool "Lut Converter" (See appendix 1 for details) and named as User1.cube, User2.cube or User3.cube. - Copy the User-defined Lut table to flash disk and insert it to the device, the screen displays a prompt message to show whether to upgrade. Select upgrade, the device will be loading automatically in a black screen and then restart after finishing loading. n Requirements for flash diskFormat: FAT32Memory:
