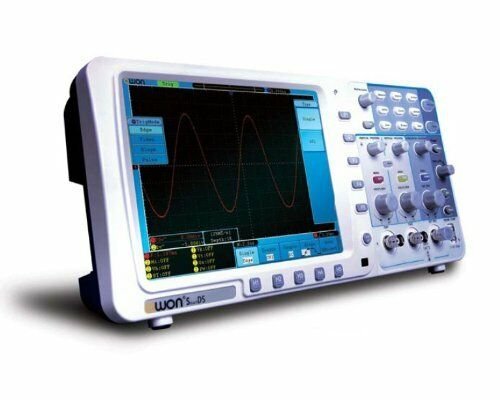

Model No.: SDS7102-V Product Features - Bandwidth : 100MHz - Sample rate : 1GS/s - 10M record length for each channel - Multi-function : auto-scale, Pass / Fail, and current-measuring - LAN remote control - Supported SCPI and labVIEW - Smart design with easy portability - Large 8 inch 800 x 600 pixels display - VGA port - Optional battery Product description OWON SDS series has ever been very popular model for its thin body, large clear 8 inch screen, deep record length and optional useful VGA port as well as battery. Large screen makes users easy to read the waveform, high record length can store much more signal details. VGA port are widely used in educational area, which can connect with large display and show waveform on both screens synchronously. This series can support optional Li-ion battery, which makes float measurement available, to reduce influence from the ground, safe and convenient. Package: Power cord (1pc) CD Rom (1pc) Quick Guide (1pc) USB Cable (1pc) Probe (2pcs) Probe adjust (1pc)Free Gifts: Battery and soft bag Dimension: 340x155x70mm Weight: 1.8kg Product Features:10M Record length1GS/s sample rateAutoScale function to simplify the operationSmart design body with easy portability8 inch display (800 x 600 pixels)Pass/Fail function Model Vertical SystemVertical resolution (A/D)8 bits Resolution (2 channels simultaneously )Vertical sensitivity2mV/div～10V/div(at input)Displacement ±1V(2mV～100mV),Analog Bandwidth 100MHz Single bandwidthFull bandwidthlow frequency≥ 5HzRise time (at input, typical) ≤3.5ns DC gain accuracy±3%DC accuracy(Average)Average﹥16: ±(3% rdg + 0.05 div) for △VMeasurementCursor measurement△V and △T between cursorsAutomatic measurementVpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time,Fall Time, DelayA→B , DelayA→B , +Width, -Width, +Duty, -DutyWaveform Math＋, －, ×, / ,FFTWaveform storage15 waveformsLissajou’s figureBandwidthFull bandwidthPhase difference±3 degreesCommunication interfaceUSB, support USB flash disk storage, SVGATriggerTrigger level range±6 divisions from screen centerTrigger level accuracy±0.3divHorizontal Trigger displacementPre-trigger: 655 div,Post-trigger: 10 divTrigger Holdoff range100ns～10sEdge triggerRising、FallingPulse TriggerTrigger conditionPositive pulse：＞、＜、＝ negative pulse：＞、＜、＝Pulse width range24ns～10sVideo TriggerNTSC、PAL、SECAMSlope TriggerTrigger conditionPositive pulse：＞、＜、＝ negative pulse：＞、＜、＝Time setting24ns～10sAlternate TriggerEdge, Pulse, Video, SlopeWaveform recordWaveform quantity1～1000Interval time1ms～1000sDisplay8" color LCD,TFT display,800x600 pixels,65535 colorsPower Supply100～240VAC RMS, 50/60Hz, CAT IIPower consumption< 18WDimension Weight340mm(L)×155mm(H)×70mm(W) 1.8kg (without battery)
