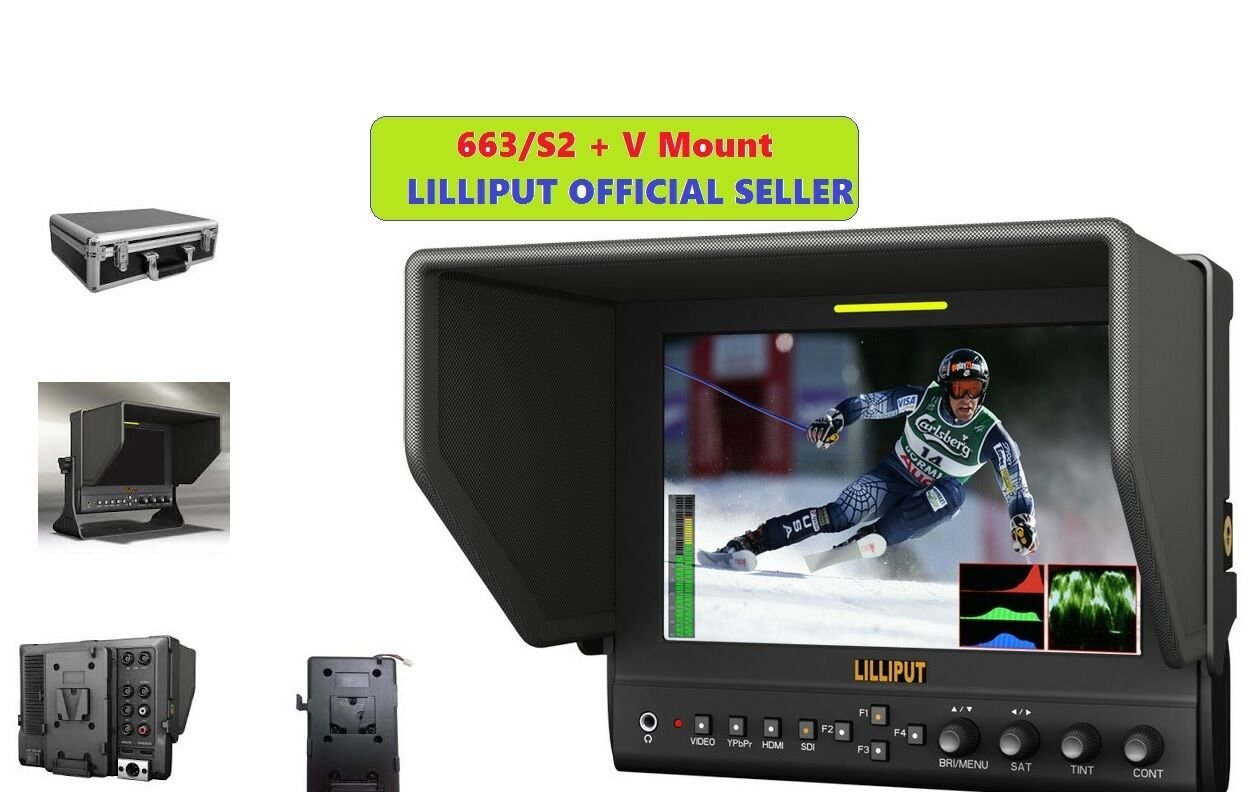

Model: 663/O/P/S2 (663/S2) Lilliput 7" 663/S2 1280X800 IPS Peaking Focus SDI HDMI In&out + V mount plate +Gimbal Stand7" 3G-SDI MonitorThe Lilliput 663/O/P/S2 monitor is a 7 inch 16:9 metal framed LED field monitor with HD-SDI IN&OUT ,HDMI IN&OUT , YPbPr (via BNC), Composite video and collapsible sun hood. Optimised for DSLR cameras.Color/RGB histogram, waveform, vector scope & Audio level meter, IPS panel 178° wide viewing angles, High resolution: 1280×800, High brightness: 400cd/㎡, High contrast: 800:1, Metal housing, TALLY interface with indicating light, POP-UP shortcut menu. 663/O/P/S2 (with new advanced Functions, With SDI IN&OUT ,with HDMI input & output) DISPLAY Panel 7" IPS Physical Resolution 1280×800, support up to 1920×1080 Aspect Ratio 16:9 Brightness 400cd/㎡ Contrast 800:1 Viewing Angle 178°/178°(H/V) INPUT HDMI 1 YPbPr 3(BNC) VIDEO 1 AUDIO 2(L/R) OUTPUT HDMI 1 AUDIO Speaker 1(built-in) Ear Phone Slot 1 POWER Current 900mA Input Voltage DC 7-24V(XLR) Battery Plate V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 Power Consumption ≤11W ENVIRONMENT Operating Temperature -20℃～60℃ Storage Temperature -30℃～70℃ DIMENSION Dimension(LWD) 191.5×152×31 / 141mm (with cover) Weight 760g / 938g (with cover)/ 2160g (with suitcase) PRODUCT DESCRIPTION 1．TALLY (indicator light). 2．Earphone jack. 3．Power indicator light: ON/OFF (Light turns to red when power on.) 4．VIDEO: Indicator lights up when signal switch to video state. 5．YPbPr: Indicator lights up when signal switch to YPbPr state. 6．HDMI: Indicator lights up when signal switch to HDMI state. 7．SDI: Indicator lights up when signal switch to SDI state (optional). 8．F1、F2、F3、F4：User-definable buttons. Default functions: F1 Peaking F2 False Color F3 Exposure F4 Histogram （function customized to meet your needs） 9．Knob BRI/MENU: Press the knob to access the menu function, pressing the knob in the menu to return to the previous page or exit the menu. Rotate knob to select an option. Default as Brightness function.10．Knob SAT: Press the knob to select main MENU options; rotate knob to confirm the selection and adjust parameter values. Default as Saturation function.11．Knob TINT: Default as Tint function. 12．Knob CONT: Default as Contrast function. Package Included: - 7" TFT LCD (no touch screen,WITH HD-SDI,with HDMI out) 1. Foldable Sun Shade 2. Hot Shoe Stand Mount for Camera (Not for Sony/Minolta camera) 3. DV battery adapter (for Canon LP-E6 battery) DV battery adapter (for SONY F970 battery) 4. HDMI to mini HDMI Signal Cable 5. DC 12V Home Power Adapter for Monitor 6. Powe and TALLY cable 7. Operation Manual 8 .Metal suitcase 9. Gimbal Stand 10. Sony V-lock mount
