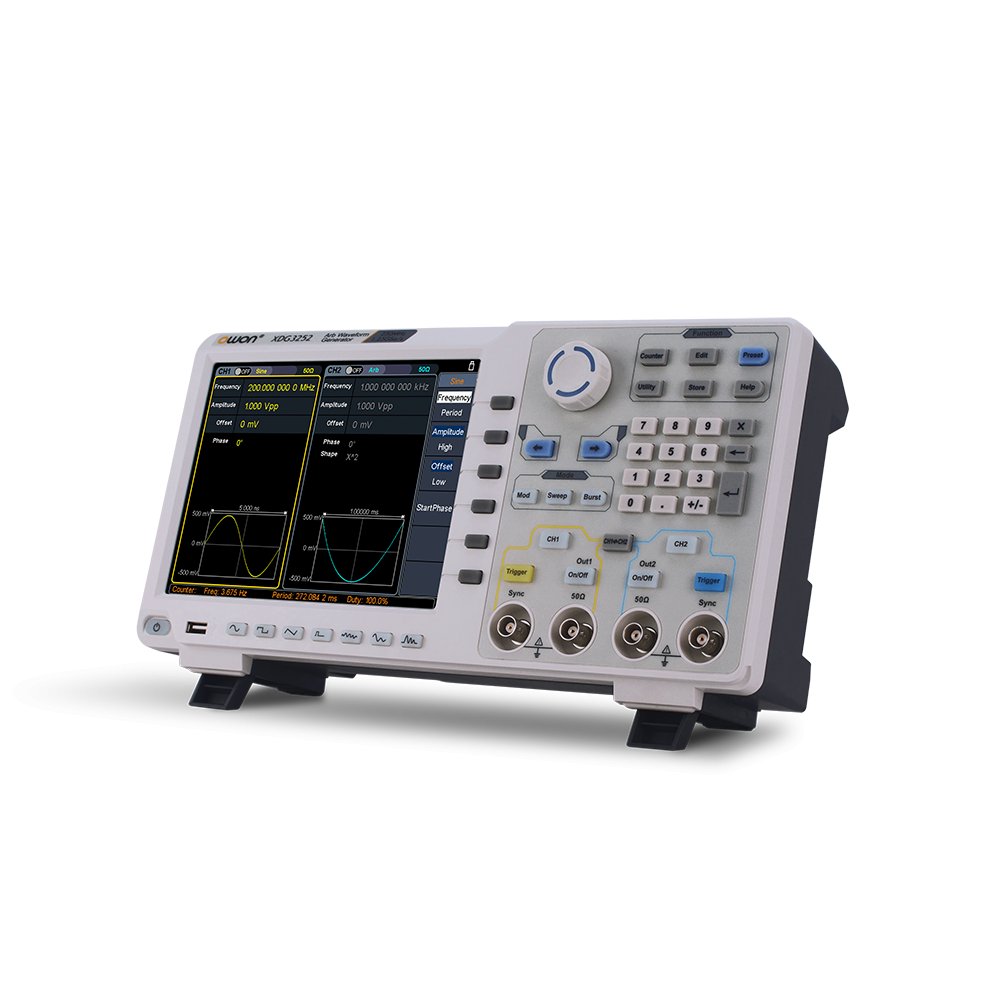

XDG3202,200MHz Touch Screen Arbitrary Waveform Generator8" 800*600 pixels touch screen LCD200MHz frequency output with dual channel1.25GS/s sampling rate and 1μHz frequency resolution1M arbitrary waveform length and 14 bits vertical resolutionComprehensive waveform output: 6 group basic waveforms and 152 group built-in arbitrary waveformsComprehensive modulation options: AM, FM, PM, FSK, 3FSK, 4FSK, PSK, OSK, ASK, BPSK, PWM, sweep and burst100mHz to 200MHz frequency counter integratedSupported SCPI and LabVIEWStandard Waveformsine, square, pulse, ramp, noise, and harmonic Arbitrary Waveformexponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform Sine1μHz - 80MHzSquare1μHz - 30MHzPulse1μHz - 25MHzRamp1μHz - 5MHzHarmonic 1μHz - 40MHzNoise120MHz (-3dB, typical)Arbitrary Waveform built-in waveform: 1uHz - 15MHzuser-defined waveform: 1uHz - 50MHzAccuracy ±1ppm, 0°C - 40°CAmplitudeinto 50Ω load1mVpp - 10Vpp (≤40MHz); 1mVpp - 5Vpp (≤80MHz) 1mVpp - 2.5Vpp (≤120MHz); 1mVpp - 1Vpp (≤250MHz)into open circuit or high-Z2mVpp - 20Vpp (≤40MHz); 2mVpp - 10Vpp (≤80MHz); 2mVpp - 5Vpp (≤120MHz); 2mVpp - 2Vpp (≤250MHz)Frequency CounterFunctionfrequency period, +width, -width, +duty, and -dutyFrequency Range100mHz - 200MHzFrequency Resolution 7 digitsInput / OutputTypefrequency counter, external modulation input, external trigger input, external reference clock input / outputCommunication InterfaceUSB Host, USB Device, and LANDimension (W×H×D)340 x 177 x 90 (mm)Weight (without package)2.50kgSpecificationsModelXDG3252XDG3202XDG3162XDG3102XDG3082Channel2Frequency Output250MHz200MHz160MHz100MHz80MHzSample Rate1.25GSa/sVertical Resolution14 bitsWaveformStandard Waveformsine, square, pulse, ramp, noise, and harmonicArbitrary Waveformexponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveformFrequency (resolution 1μHz)Sine1μHz - 250MHz1μHz - 200MHz1μHz - 160MHz1μHz - 100MHz1μHz - 80MHzSquare1μHz - 50MHz1μHz - 40MHz1μHz - 30MHzPulse1μHz - 25MHzRamp1μHz - 5MHzHarmonic1μHz - 125MHz1μHz - 100MHz1μHz - 80MHz1μHz - 50MHz1μHz - 40MHzNoise120MHz (-3dB, typical)Arbitrary Waveformbuilt-in waveform: 1uHz - 15MHz user-defined waveform: 1uHz - 50MHzAccuracy±1ppm, 0°C - 40°CAmplitudeinto 50Ω load1mVpp - 10Vpp (≤40MHz); 1mVpp - 5Vpp (≤80MHz) 1mVpp - 2.5Vpp (≤120MHz); 1mVpp - 1Vpp (≤250MHz)into open circuit or high-Z2mVpp - 20Vpp (≤40MHz); 2mVpp - 10Vpp (≤80MHz); 2mVpp - 5Vpp (≤120MHz); 2mVpp - 2Vpp (≤250MHz)Resolution1mV or 4 digitsDC OffsetRange (50Ω)±(5 Vpk - Amplitude Vpp/2)Range (high-Z, open circuit)±(10 Vpk - Amplitude Vpp/2)Accuracy±(1% of |setting| + 1mV + Amplitude Vpp x 0.5%)Resolution1mV or 4 digitsLoad Impedance50Ω (typical)Accuracy±(1% of setting + 1 mVpp) (typical, 1kHz sine, 0V offset) Sine Wave Spectrum PurityHarmonic Distortion Typical (0dB)DC - 1MHz:
