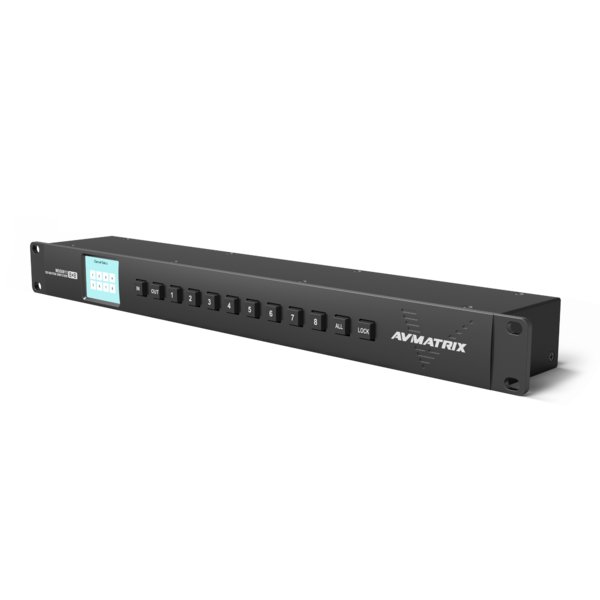

1RU 8×8 3G-SDI Matrix Switcher The compact SDI routing switcher MSS0811 has 8 inputs and 8 outputs, supports standard 3G/HD/SD SDI rates, automatic bypass of non-standard rates between 20 Mbit/s and 3 Gbit/s, and passes all SDI embedded audio/ancillary data. It’s conveniently control by front panel button, keyboard via USB and PC software via LAN/RS-232.8 x 8 Channels 3G-SDI Matrix Switcher1U Standard RackmountSeamless Signal Switching - no black screen or snowPluggable modular cards, flexible configurationPowerful Signal RoutingThis matrix includes multi format technology so it can auto detect multiple video format sources of SD/HD/3G-SDI (level A & B) and DVB-ASI signals at the same time and route the multiple video destination in NTSC and PAL SD, 720, 1080 at any frame rate. Multiple Control Methodsfront PanelMSS0811 matrix switcher enables full control from the front panel. The current channel status can be viewed visually from the 2.2 inch LCD screen. Besides, the LOCK button perfect avoid accident.pC SoftwareWith a free PC control software, you can control the matrix switcher via Ethernet. Also you can use the software control via the serial port RS-232 connecting your PC.USB KeyboardThere is another smart control method that connecting a USB keyboard from the USB port to realize a quick and easy configuration.Redundant PowerThe use of premium components coupled with dual redundant power supplies ensures the highest signal quality and maximum uptime even in the unexpected event of a power supply failure.Compact DesignThe super-compact 1RU format is just a few inches deep, making them a perfect fit for any broadcast, production, or post production environment, from mobile sports trucks and edit suites, through to corporate video installations or live theatrical A/V rigs . Product descriptionThe AVMatrix MSS0811 is an 8 x 8 3G-SDI Matrix Switcher (YUV). It accepts 8 channels of input, and can drive them to 8 separate output feeds, controlled by manual switches on the front of the device.8 x 8 Channels 3G-SDI Matrix SwitcherYUV Color Space1U Standard RackmountSeamless Signal Switching - no black screen or snowPluggable modular cards, flexible configurationLCD screen for system statusFront panel button controlRS232/4585/RJ45 port for remote controlOutput supports up / down scaling and frame rate conversionEquanlization and reclocking with professional rejitter Automatic test pattern generatorSDI InputNo. of Inputs8xBit Rate270Mbps - 2.97GbpsConnector (SDI)BNC Compliant to IEC169-8 StandardsSignal Amplitude (SDI)800mV +- 10% (75 Ω)Impedance (Input)75ΩSDI OutputBit Rate270Mbps - 2.97GbpsConnector (SDI)BNC Compliant to IEC169-8 StandardsNo. of Outputs8xSignal Amplitude (SDI)800mV +- 10% (75 Ω)Common ParametersOperating VoltageAC 110-250VPower
