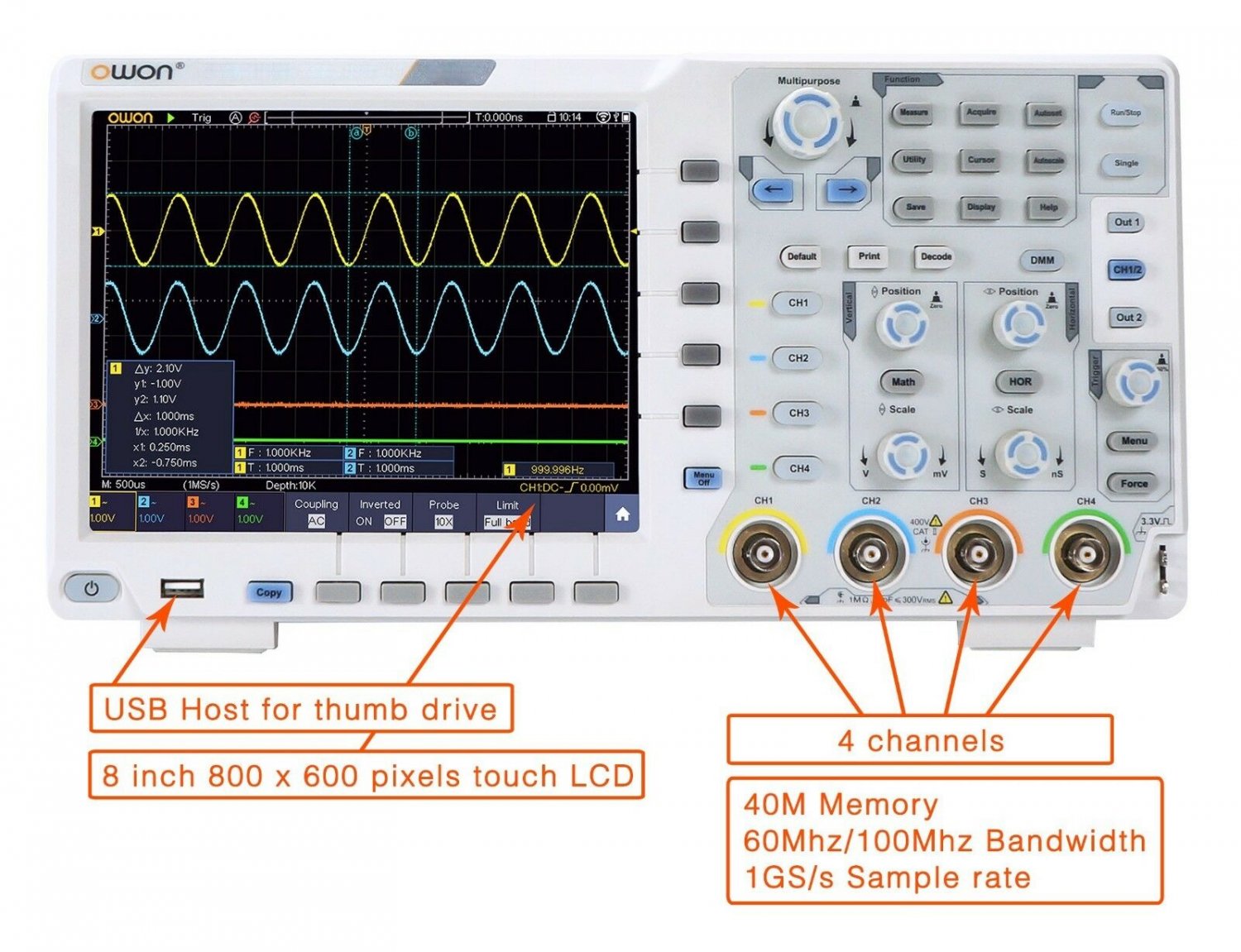

XDS3204AE 4CH DSO Model XDS3204AE Bandwidth 200MHz Sample Rate 1GS/s Vertical Resolution (A/D)) 14 bits Record length 40M Waveform Refresh Rate 70,000 wfms/s Horizontal Scale (s/div)) 2ns/div - 1000s/div, step by 1 - 2 - 5 Rise Time (at input, typical) ≤1.7ns Channel 4 Display 8" color LCD, 800 x 600 pixels display Input Impedance 1MΩ ± 2%, in parallel with 15pF ± 5pF Channel Isolation 50Hz : 100 : 1, 10MHz : 40 : 1 Max Input Voltage 1MΩ ≤ 300Vrms; DC Gain Accuracy ±3% DC Accuracy average≥16：±（3% +0.05div) for △V Probe Attenuation Factor 0.001X - 1000X, step by 1 - 2 - 5 LF Respond (AC, -3dB) ≥5Hz Sample Rate / Relay Time Accuracy ±2.5ppm Interpolation (sinx) / x，x Interval (△T) Accuracy (full bandwidth) Single: ±(1 interval time + 1ppm x reading + 0.6ns); Average > 16: ±(1 interval time + 1ppm x reading + 0.4ns) Input Coupling DC, AC, GND Vertical Sensitivity 1mV/div - 10V/div (at input) Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, Bus Decoding(optional) I2C, SPI, RS232, CAN Trigger Mode Auto, Normal, and Single Vertical Range ±2V(1mV/div～50mV/div)；±20V(100mV/div～1V/div)；±200V(2V/div～10V/div) Line / Field Frequency (video) NTSC, PAL and SECAM standard Cursor Measurement △V, and △T between cursors, △V and △T between cursors, and auto- cursors Automatic Measurement Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase A→B ↑, Phase A→B↓, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edges Count, Area, Cycle Area Waveform Math ＋, －, ×, ÷, FFT Waveform Storage 100 waveforms Lissajou's Figure full bandwidth Full bandwidth ±3 degrees ±3 degrees Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional) Frequency Counter available Power Supply 100V - 240V AC, 50/60Hz, CAT II Fuse 2A, T class, 250V Battery (optional) 3.7V, 13200mA Dimension (W x H x D) 340mmx177mmx90mm OWON XDS3204AE 200MHz 4CH14bits W/Touch/I2C/SPI / RS232 decoding / CAN +VGA+DMM oscilliscope ＋Multimeter (optional) Specifications Full Scale Reading 3¾ digits (max 4000 count) Diode 0V -1.5V Input Impedance 10MΩ Continuity Test
