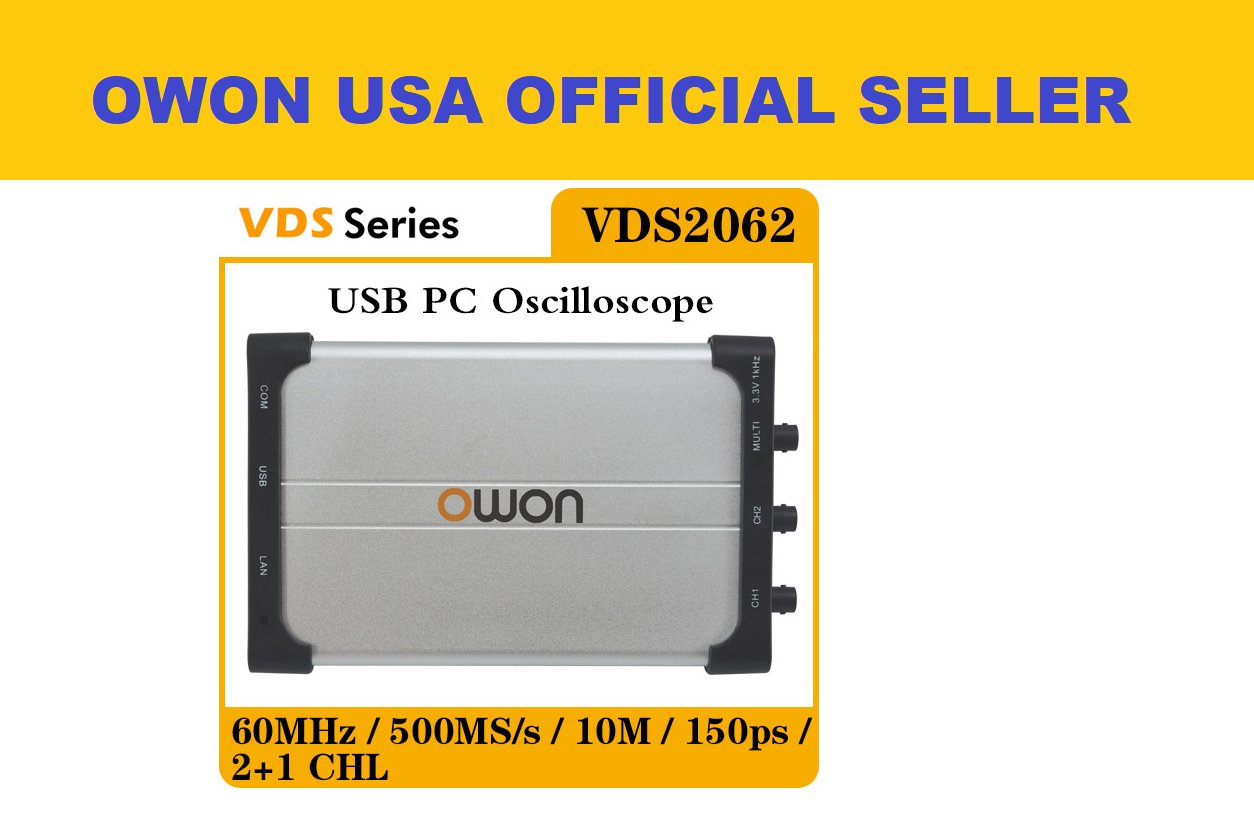

The Owon VDS2062 is a PC based dual channel oscilloscope. The device features a bandwidth of 60 MHz and a sampling rate of 500 MSa/s.The VDS2062 is a full-fledged compact oscilloscope. It is controlled via PC also displaying the measurement signals. The oscilloscope is connected directly via USB . Specificial Features:Cursor MeasurementsVarious measurement values can be determined easily displayed in real-time.Both, cursor measurements and direct measurement with corresponding displays are available. Possible measurements include period, frequency, rise and fall times, duty cycle and pulse width for positive and negative signals, Vpp, Vmax, Vmin, Vamp, Vtop, Vbase, Overshoot, Preshot, Vavg, Vrms and rise and fall delays between both channels.Mathematical FunctionsThe two channels can be linked through a variety of mathematical functions. These channels can be added, subtracted, multiplied, and divided.FFT (Fast Fourier Transformation)The Owon software can use ?Fast Fourier Transformation? to analyze the frequency components of the measurement signal and display them graphically. That makes this device the ideal choice for analyzing noise components in DC supplies and other harmonic components. Supported algorithms: Rectangle, Blackman, Hanning, HammingX-Y-DisplayNext to the FFT functions Lissajous curves and component characteristics can be displayed on the multifunction display. A component tester is not included.Masked Pass/Fail-TestsPass/fail testing can be used for troubleshooting in various environments like communication networks. Features: User defined masks, Pass/Fail counts, Stop on Fail, Fail Alarm Bandwidth60 MHzSampling modeNormal, average, peak detectMathematicsA+B, A-B, A×B, A/B, FFT (Fast Fourier Transform)FFT windowsRectangle, Blackman, Hanning, HammingSignalOwon VDS2062InputDC/AC Coupling, to 40 Vpk (DC + AC peak)Sampling Rate1 Sa/s to 500 MSa/s realtimeTime base5 ns/Div. to 100 s/Div.(Steps 1 - 2 - 5)Memory10 MptsVerticalOwon VDS2062Analog digital converter (A/D)8BitSensitivity range (V/div)5 mV/Div to 5 V/Div.Displacement range±1 V (5 mV to 100 mV)±50 V (200 mV to 5V)TriggerOwon VDS2062TriggerEdge, Pulse, Slope, external Trigger, Video, alternate TriggerSignal system and line/field frequency (Video triggering mode)NTSC, PAL und SECAMline numbers 1-525 (NTSC) and 1-625 (PAL/SECAM)MeasurementOwon VDS2062Cursor measurementManual, Track and Auto Measure modesAuto measurementVpp, Vamp, Vmax, Vmin, Vhigh, Vlow, Vavg, Vrms, Frequency, Period, +Width, -Width, +Duty, -Duty
