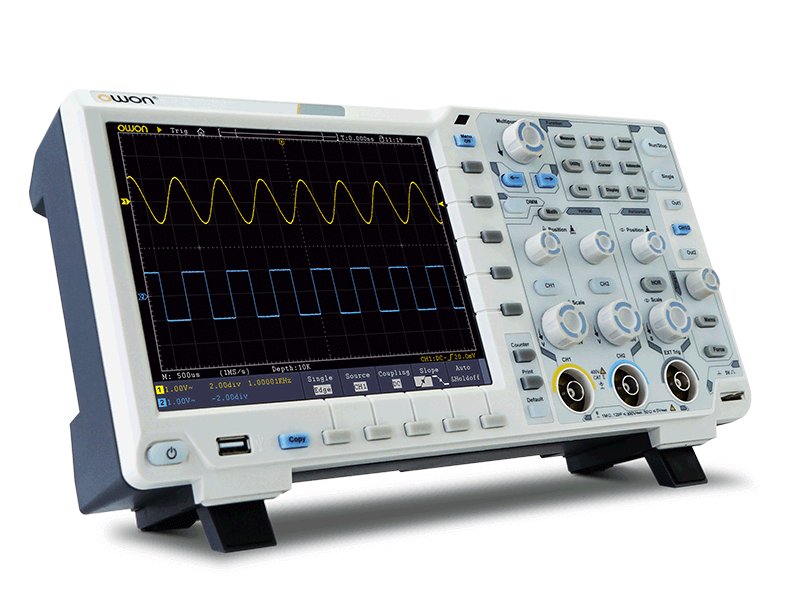

OWON XDS3202E oscilloscope 200Mhz 1G 2chs 8 bits ADC Decoding Kit LCD FFT USBOWON XDS3202E 200MHz 1GS/s 2-channel Digital Storage Oscilloscope, 8 inch TFT-LCD ( 800x600 ), 40M record length, standard I2C, SPI, RS232 and CAN decoding, 75,000wfms/s refresh rate DescriptionOWON XDS3202E oscilloscope 200Mhz 1G 2chs 8 bits ADC 40M record length Decoding Kit 75,000 wfms/s 1ns/div 8”color LCD FFT USBDescriptionMain FeaturesSuper Performance+ 8-bit ADC, restoring the waveform detail fully+ 40M record length, and 75,000 wfms/s waveform refresh rate+ low background noise, vertical sensitivity in 1 mV/div - 10 V/div+ multi- trigger, and bus decoding function+ SCPI, and LabVIEW supportedCreative New Look+ ultra-thin body-design, less space accommodation+ multi-interface integration - USB host, USB device, USB port for PictBridge, LAN, AUX, and more+ VGA port - better solution for video expansion, and teaching demonstration+ 8 inch 800 x 600 high resolution LCD+ optional multi-touch screen, more user-friendly operation experiencen-in-1functions as data logger, and multimeter with data logging function,and dual-channel 25MHz / 50MHz arbitrary waveform generator,furthermore, battery pack, and WiFi module supported Performance SpecificationsModelXDS3202EBandwidth200MHzSample Rate1GS/sVertical Resolution (A/D)8bitsRecord length40MWaveform Refresh Rate75,000 wfms/sHorizontal Scale (s/div)1ns/div - 1000s/div, step by 1 - 2 - 5Rise Time (at input, typical)≤1.7nsChannel2 + 1 (external)Display8" color LCD, 800 x 600 pixels (optional 1024 x 768 pixels IPS display)Input Impedance1MΩ ± 2%, in parallel with 15pF ± 5pFChannel Isolation50Hz : 100 : 1, 10MHz : 40 : 1Max Input Voltage1MΩ ≤ 300Vrms; 50Ω ≤ 5VrmsDC Gain Accuracy±3%DC Accuracyaverage≥16：±(3% reading + 0.05 div) for △VProbe Attenuation Factor0.001X - 1000X, step by 1 - 2 - 5LF Respond (AC, -3dB)≥5Hz (at input, AC coupling, -3dB)Sample Rate / Relay Time Accuracy±1ppmInterpolationsin(x) / xInterval (△T) Accuracy(full bandwidth)Single: ±(1 interval time + 1ppm x reading + 0.6ns); Average > 16: ±(1 interval time + 1ppm x reading + 0.4ns)Input CouplingDC, AC, and GNDVertical Sensitivity1mV/div - 10V/div (at input)Trigger TypeEdge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232,and CAN (optional)Bus DecodingI2C, SPI, RS232, and CAN (optional)Trigger ModeAuto, Normal, and SingleVertical Range±2V ( 1mv/div - 50mv/div), ±20V ( 100mv/div - 1V/div), ±200V (2V/div - 10V/div)Line / Field Frequency (video)NTSC, PAL and SECAM standardCursor Measurement△V, and △T between cursors, △V and △T between cursors, and auto- cursorsAutomatic MeasurementVpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Phase, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, Delay A→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge CountWaveform Math＋, －, ×, ÷, FFTWaveform Storage100 waveformsLissajou's FigureBandwidthfull bandwidthPhase Difference±3 degreesCommunication InterfaceUSB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)Frequency CounteravailablePower Supply100V - 240V AC, 50/60Hz, CAT IIPower Consumption＜15WFuse2A, T class, 250VBattery (optional)3.7V, 13200mAhDimension (W x H x D)340 x 177 x 90 mmWeight2.60 kgDecoding KitRS232RS232SPISPII2CI2CCANCAN trigger / decodingApplications:electronic circuit debuggingcircuit testing design and manufactureeducation and trainingautomobile maintenance and testing Package list:1) XDS3202E oscilloscope 2) Power cord3) CD Rom4) Manual5) USB Cable6) Probes7) Probes Adjust
