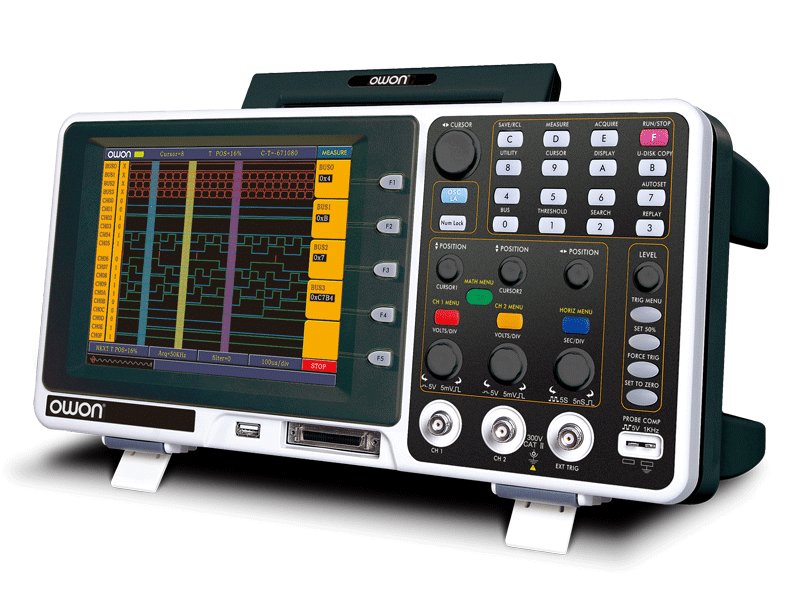

OWON MSO7102TD LA + digital oscilloscope Product Series : Multi-function DSOMain Features - 2 in 1 (DSO + LA)- 8 inch color LCD- USB data transmission supported- 20 group automatic measurement optionsDigital Storage Oscilloscope- Bandwidth : 100MHz- Sample rate : up to 2GS/s- Auto-scale function- FFTLogic Analyzer- Bandwidth : 100MHz- Sample rate : 1GS/s/LA-2GS/s- 16 digital channelsApplication design and debug circuit function test identified signals logic information education and training mixed signal circuit test 「Digital Storage Oscilloscope」Performance SpecificationsModelMSO5022SMSO7062TDMSO7102TDMSO8102TMSO8202TBandwidth25MHz60MHz100MHz100MHz200MHzSample Rate (real time)100MS/s1GS/s1GS/s2GS/sRise Time≤14ns≤5.8ns≤3.5ns≤1.7nsDisplay7.8'' color LCD8.0'' color LCD , TFT screen, 640 × 480 pixelsChanneldual + external triggerHorizontal Scale (s/div)5ns/div - 5s/div, step by 1 - 2.5 - 52ns/div - 100s/div, step by 1 - 2 - 51ns/div - 100s/div, step by 1 - 2 - 5DC Accuracy (average)average>16 : ±(3% reading + 0.05div) for △VVertical Sensitivity5mV/div - 5V/div2mV/div - 10V/divDC Gain Accuracy±3%Vertical Resolution (A/D)8 bits (2 channels simultaneously)Interpolationsin (x) / xMax Input Voltage300V (DC + AC, PK - PK)400V (DC + AC, PK - PK )Probe Attenuation Factor1X，10X，100X，1000XTrigger ModeEdge, Video, Alternate, Pulse, SlopeAcquisition ModeNormal, Peak Detect, and AverageRecord Lengthmax 6K pointsmax 2M pointsWaveform Storage4 waveformsAutomatic MeasurementVpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot,Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -DutyWaveform Math＋, －, ×, ÷, FFTPower Supply100 - 240V AC, 50Hz / 60Hz, CATⅡLissajou’s FigureBandwidth25MHz60MHz100MHz200MHzPhase Difference±3 degreesCommunication InterfaceUSB1.1, and RS232USB2.0, USB host, and RS232 / VGA (optional)Fuse1A, T class, 250VDimensions (W × H × D)370 × 180 × 120 (mm)Weight (without package)2.20 kg「Logic Analyzer」Performance SpecificationsModelMSO5022SMSO7062TDMSO7102TDMSO8102TMSO8202TSample Rate (real time)20S/s - 200MS/s20S/s - 2GS/sBandwidth40MHz100MHz200MHzChannel16Record LengthMax 4M each channelInput Impedance660KΩ ± 5%, in parallel with 15 ± 5pFTrigger ModeEdge, Bus, State, Data Alignment, Data Width, Distributed QueueTrigger Position SettingPre-trigger, Mid-trigger, and Re-triggerThreshold Voltage±6V (4 settings)Input Signal Range±30VData SearchavailableData Systembinary, decimal, hexDigital Filter0, 1, 2 optionalSetting Storage10 settingsUSB Flash Disk Storageavailable Packaging DetailsPower CordCD RomManualUSB Cable ProbeProbe AdjustSoft Bag Logic Analyzer Module
