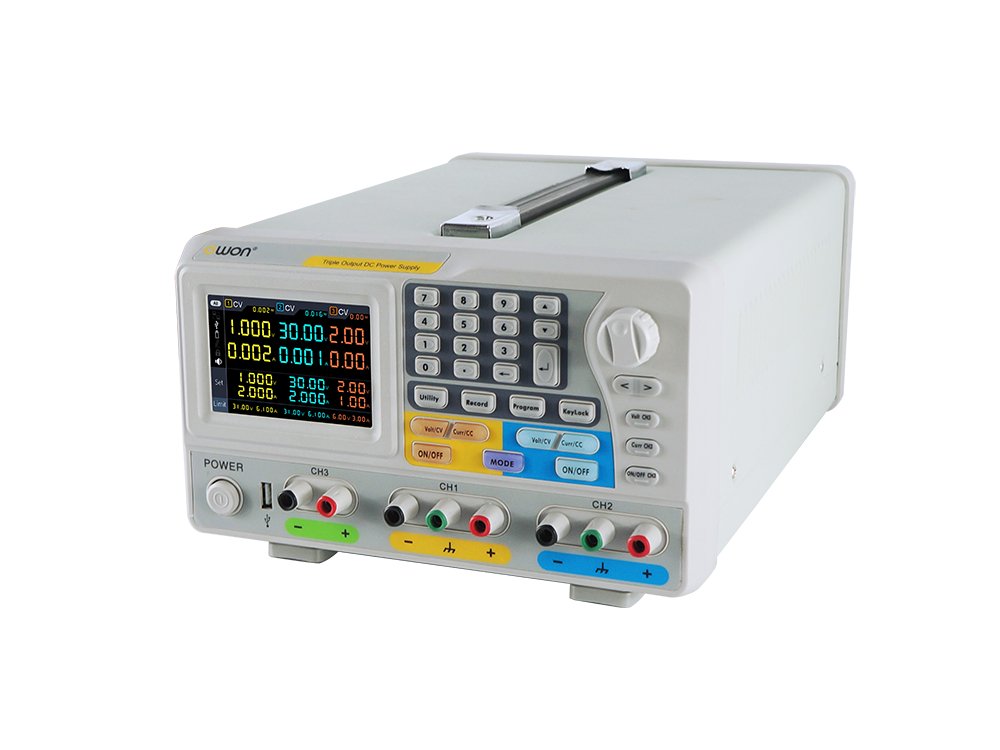

OWON ODP3063 3-CH Output With 2-CH 0-30V/6A And 0-6V/3A Programmable DC Power Supply We are known as one of world's leading China manufacturers and suppliers. Welcome to buy the famous brands' OWON 3-ch output with 2-ch 0-30v/6a and 0-6v/3a programmable dc power supply, 378w, 30v power supply, 6a power supply with cheap price from us. We have many products in stock at your choice. Consult the quotation with us now.1. Triple Output: 3 independent channelfunction as 3 power supply unit;via parallel / series connection, the power output range of 1 channel could be wider. 2. Creative Data Recording Functionto monitor the changing status of powering system, displaying recorded data in chart. E Low Ripples / Low Noise 3. Timing OutputSupport 100 groups timing output settings, the power output curve could be adjusted via PC,or device itself. And applicable to artificial simulated power output variation. 4. CV / CC Auto-switchAlong with load varies, the power output auto-switches between CV / CC. Give an operation example, in the circumstance you set a voltage of 10V at a current of 1A,when actual current not larger than 11A, the power supply unit works under CV status,the power output alters with load accordingly; whereas when actual current larger than 1A,the power supply unit will limit the current automatically, and switch into CC mode,then the power output alters with load accordingly. CV / CC auto-switch fulfills within power supply unit, no human intervention needed.5. Low Ripples / Low NoiseOWON ODP features super- low ripples, and super- low noise,which causes almost no influences to circuit test. SpecificationsModelODP3033ODP3063ODP6033Channel3 (independent controllable channel)Max Output Power198W378W378WOutput Range0 - 30V / 3A x 2-CH, 0 - 6V / 3A0 - 30V / 6A x 2-CH, 0 - 6V / 3A0 - 60V / 3A x 2-CH, 0 - 6V / 3ADisplayLCD Type4 inch colored LCDDisplay Resolution480 x 320 pixels, 65536 colorsMechanical Specifications Dimension (W x H x D)250 x 158 x 358 (mm) Device Weight9.80 kg12.00 kgThe specifications based upon the instrument having run for at least 30 minutes continuously, under the specified operating environment ModelODP3033ODP3063ODP6033all 3 modelsChannelCH1CH2CH1CH2CH1CH2CH3Output Ratings （0℃-40℃）Voltage0 - 30V0 - 30V0 - 60V0 - 6VCurrent0 - 3A0 - 6A0 - 3A0 - 3ALoad RegulationVoltage≤0.01% + 3mVCurrent≤0.01% + 3mALine RegulationVoltage≤0.01% + 3mVCurrent≤0.01% + 3mASettings ResolutionVoltage1mVCurrent1mARead Back ResolutionVoltage1mVCurrent1mASettings Accuracy (25℃ ± 5℃) (within 12 months)Voltage≤0.03% + 10mVCurrent≤0.1% + 8mA≤0.1% + 5mARead Back Accuracy (25℃ ± 5℃)Voltage≤0.03% + 10mVCurrent≤0.1% + 8mA≤0.1% + 5mANoise and Ripple (20Hz - 20MHz)Voltage (Vp-p)≤4mVp-p≤3mVp-pVoltage (rms)≤1mVrms≤1mVrmsCurrent (rms)≤5mArms≤4mArmsOutput Temperature Coefficient (0℃ - 40℃)Voltage≤0.03% + 10mVCurrent≤0.1% + 5mARead Back Temperature CoefficientVoltage≤0.03% + 10mVCurrent≤0.1% + 5mAParallel Settings AccuracyVoltage≤0.02% + 5mVCurrent≤0.1% + 30mAProgrammable OutputStorage100 groupsTime SettingsecondData Recording10 K groups (of voltage, current and power data) recording capacityWorking Temperature0 - 40℃Communication InterfaceUSB Host&Divice, RS232, and LAN Product Features - Three independent controllable channels - Max output resolution: 1mV / 1mA - Low ripples / low noise - Up to 100 group timers - Multi- working mode: individual, parallel, and series - Over-voltage / Over-current protection - Data-logging function: could record the output voltage, and current; and display recorded data in chart - Auto-cooling system - 4 inch high resolution (480 × 320 pixels) LCD - Multi- CI: USB, RS232, and LAN - SCPI, and LabVIEW supported Product description OWON ODP3063 Programmable DC power supply with three independent controllable channels, Outputs: CH1&CH2 0 - 30V/ 0-6A, CH3 0-6V/3A, Max power reaches 378W, it has high resolution 1mV/1mA which makes sure of the accuracy. It can support three output modes, including independent, series and parallel. Display: 4 inches TFT LCD screen (480*320pixels). Support: 100V/120V/220V/230V. With Creative Data Recording Function, support 100 groups timing output settings, the power output curve could be adjusted via PC or device itself, and applicable to artificial simulated power output variation. Along with load variation, the power output auto-switches between CV / CC. OWON ODP features super- low ripples, and super- low noise. Multiple Interfaces: USB device, USB Host, RS232, LAN. Dimension: 250mm (W) × 158mm(H) × 358mm(D) Weight: 12kg. Application: R&D lab Educational lab, Automotive electronic test, Production testing and quality assessment inspection. Package: Power cord (1pc) CD Rom (1pc) Quick Guide (1pc) USB Cable (1pc) Fuse (1pc) Dimension: 250 x 158 x 358 (mm) Weight: 12.0 kg
