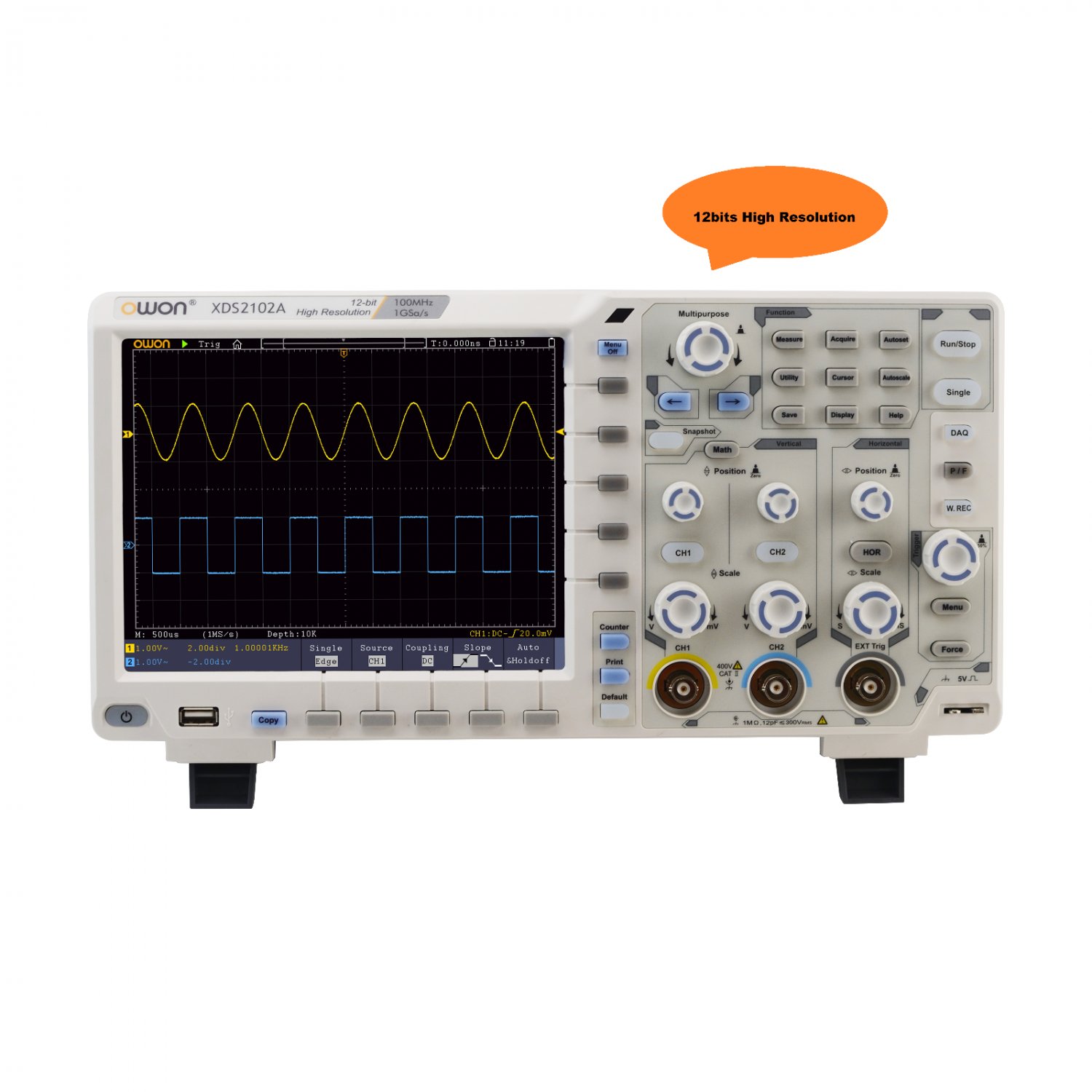

Model Number: XDS2102A OWON XDS2102A oscilloscope 12bits high resolution 100MHz bandwidth, 1GS/s sample rate 55,000 wfms/s refresh rate standard VGA ,SPI/I2C/RS232/CAN serial bus decoding DescriptionPerformance SpecificationsModelXDS2102ABandwidth100MHz Sample Rate1GS/s Vertical Resolution (A/D)12 bits Record length20M Waveform Refresh Rate55,000 wfms/s Horizontal Scale (s/div)2ns/div - 1000s/div, step by 1 - 2 - 5 Rise Time (at input, typical)≤3.5ns Channel2 + 1 (external) Display8" color LCD, 800 x 600 pixels Input Impedance1MΩ ± 2%, in parallel with 15pF ± 5pF Channel Isolation50Hz : 100 : 1, 10MHz : 40 : 1 Max Input Voltage1MΩ ≤ 300Vrms; 50Ω ≤ 5Vrms DC Gain Accuracy±1.5% DC Accuracyaverage≥16：±(3% reading + 0.05 div) for △V Probe Attenuation Factor0.001X - 1000X, step by 1 - 2 - 5 LF Respond (AC, -3dB)≥10Hz (at input, AC coupling, -3dB) Sample Rate / Relay Time±1ppmAccuracy Interpolationsin(x) / x Interval (△T) AccuracySingle: ±(1 interval time + 1ppm x reading + 0.6ns);(full bandwidth)Average > 16: ±(1 interval time + 1ppm x reading + 0.4ns) Input CouplingDC, AC, and GND Vertical Sensitivity1mV/div - 10V/div (at input) Trigger TypeEdge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN Bus DecodingI2C, SPI, RS232, and CAN Trigger ModeAuto, Normal, and Single Vertical Range±2V ( 1mv/div - 50mv/div), ±20V ( 100mv/div - 1V/div), ±200V (2V/div - 10V/div) Line / Field Frequency (video)NTSC, PAL and SECAM standard Cursor Measurement△V, and △T between cursors, △V and △T between cursors, and auto- cursors Vpp, Vavg, Vrms, Freq, Period, Week RMS, Cursor RMS, Vmax, Vmin, Vtop, Vbase, Vamp, Automatic Measurement Overshoot, Phase, Preshoot, Rise Time, Fall Time,+Width, -Width, +Duty, -Duty, Duty Cycle, DelayA→B ↑, Delay A→B↓, +Pulse Count, -Pulse Count, Rise Edge Count, Fall Edge CountWaveform Math ＋, －, ×, ÷, FFT Waveform Storage 50 waveforms Lissajou'sBandwidth full bandwidthFigurePhase Difference ±3 degrees Communication InterfaceUSB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional) Frequency Counter available Power Supply 100V - 240V AC, 50/60Hz, CAT II Power Consumption ＜15W Fuse 2A, T class, 250V Battery (optional) 3.7V, 13200mAh Dimension (W x H x D) 340 x 177 x 90 mm Weight 2.60 kg Specifications subject to change without prior notice.＋Application electronic circuit debuggingcircuit testingdesign and manufactureeducation and trainingautomobile maintenance and testingPackage list:1. XDS2102A oscilloscope2. Power Cord3. CD Rom4. Quick Guide5. USB Cable6. Probe7. Probe Adjust8.12bit ADC for free 9. decode including CAN,RS232 I2C,SPIShipping: all order will ship from our China warehouse by registered air mail, it takes around 7-14 business days to arrive, fast shipping is aviliable by paying $25.00 more upgrade to express shipping with track number, thanks.Packaging DetailsUnit Type: piecePackage Weight: 3.0kg (6.61lb.)Package Size: 28cm x 36cm x 15cm (11.02in x 14.17in x 5.91in) Product Features + 12-bit high resolution ADC, restoring the waveform details fully + 20M record length, and 55,000 wfms/s waveform refresh rate + low background noise, vertical sensitivity in 1 mV/div - 10 V/div + multi- trigger, and bus decoding function + SCPI, and LabVIEW supported + ultra-thin body-design, less space accommodation + multi-interface integration - USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN + 8 inch 800 x 600 high resolution LCD Product description OWON XDS series DSOs, as the 3rd generation, provides much higher performance and more competitive price for users. XDS2102A, the best seller among this series, dual channel, max 12bits ADC, 100MHz bandwidth, 1GS/s sample rate, 20M record length, 55000wfms/s refresh rate, horizontal scale 2ns/div ~ 1000s/div, step by 1-2-5, rise time ≤3.5ns. With multiple trigger mode and support SPI/I2C/RS232/CAN bus decoding. With 12 bits hardware ADC, the precision is 16 times against other 8 bits oscilloscope on the market. This will make the measurement value more accurate, very good to check the glitch. 20M record length can store more waveform details. And Low background noise makes it possible to measure the small signal. 8 Inch large clear TFT LCD provides great user experience. Recommended model, worth to have ! Package: Power cord (1pc) CD Rom (1pc) Quick Guide (1pc) USB Cable (1pc) Probes (2pcs) Probe adjust (1pc) Dimension: 340x177x90mm Weight: 2.60kg
