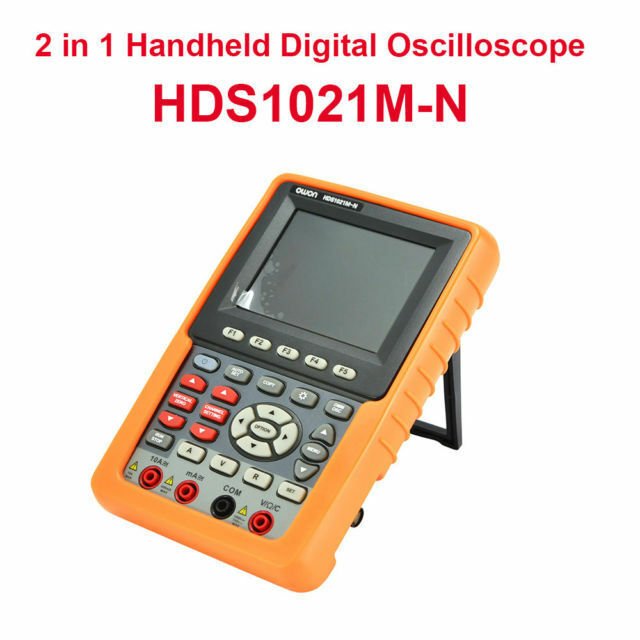

he Owon HDS1021M is a handheld electrical test device that combines a 20 MHz, single-channel, handheld digital oscilloscope for viewing electrical signals with a manual- and auto-ranging digital multimeter for measuring AC and DC voltage to 400V, AC and DC current to 20 amp, resistance to 40 MΩ, and capacitance to 100 μF. The oscilloscope has maximum real-time sample rate of 100MS/s and a record length of 6,000 points for acquiring detailed waveforms. Its 18 automatic measurements such as period, frequency, and peak-to-peak enable an in-depth analysis of waveforms. Up to four waveforms can be stored in the internal memory. The multimeter has two ranging modes: manual, which allows the user to select the operating range, and auto, which automatically selects the appropriate operating range. The delta relative function allows a measurement to be set as a reference value and displays subsequent measurements as a positive or negative deviation from that value, and the data-hold function freezes a reading on the display to aid documentation. A continuity buzzer confirms that the circuit conducts electricity, and a diode check detects whether a circuit's diodes are working properly. include a rise time of 17.5 ns and various triggering features. The unit has a 3.5" color TFT (thin film transistor) LCD with a resolution of 320 x 240 pixels for viewing waveforms and measurements. An oscilloscope is used for electronics applications such as product design, assembly lines, repair and servicing, and electrical engineering education, among others. A multimeter is an electrical testing tool for measuring multiple properties of an electrical circuit to verify proper operation or diagnose problems.The unit has a USB port for connecting to a PC and includes Microsoft Windows compatible software for transmitting data and remote operation. It meets EN (European Standard) 61010-1:2001 safety standard, and is rated for CAT II installations to 400V, which covers energy-consuming equipment connected to a fixed installation, including household, office, and laboratory. It has European Conformity (CE) marking. It comes with an oscilloscope voltage probe; a set of test leads; an extension module for large current measurement; an extension module for small capacitance measurement; an output terminal for testing of 1 kHz/5V square-wave signal; probe adjustment tools; a USB interface cable; CD-ROM PC software; a rechargeable lithium-ion battery; a battery charger/AC adapter for 100 to 240V, 50/60Hz; and instructions.SpecificationsDisplay3.5" color TFT-LCDBandwidth20 MHzChannelsSingleMaximum real-time sample rate100 MS/sRecord length6,000 pointsMaximum AC and DC voltage measured400VMaximum AC and DC current measured20 ampMaximum resistance measured40 MΩMaximum capacitance measured100μFPower sourceRechargeable lithium ion battery or AC adapter for 100 to 240V, 50/60HzDimensions (H x W x D)180 x 115 x 40 mmWeight455 g What's in the Box?Owon HDS1021M digital oscilloscope and multimeterOscilloscope voltage probeSet of test leadsExtension module for large current measurementExtension module for small capacitance measurementOutput terminal for testing of 1 kHz/5V square-wave signalProbe adjustment toolsUSB interface cableCD-ROM PC softwareRechargeable lithium ion batteryBattery charger/AC adapterInstructions
