$75.93
Add to Cart
New Pr. 4-on-2-13/16" Dual-Flange Idler-Wheel Hubs, Fit 3/4" or 1" Spindles; fit PermaGreen®
Please use the link at the bottom of the page and read our "Terms" before placing an Order. They include shipping information and payment options.

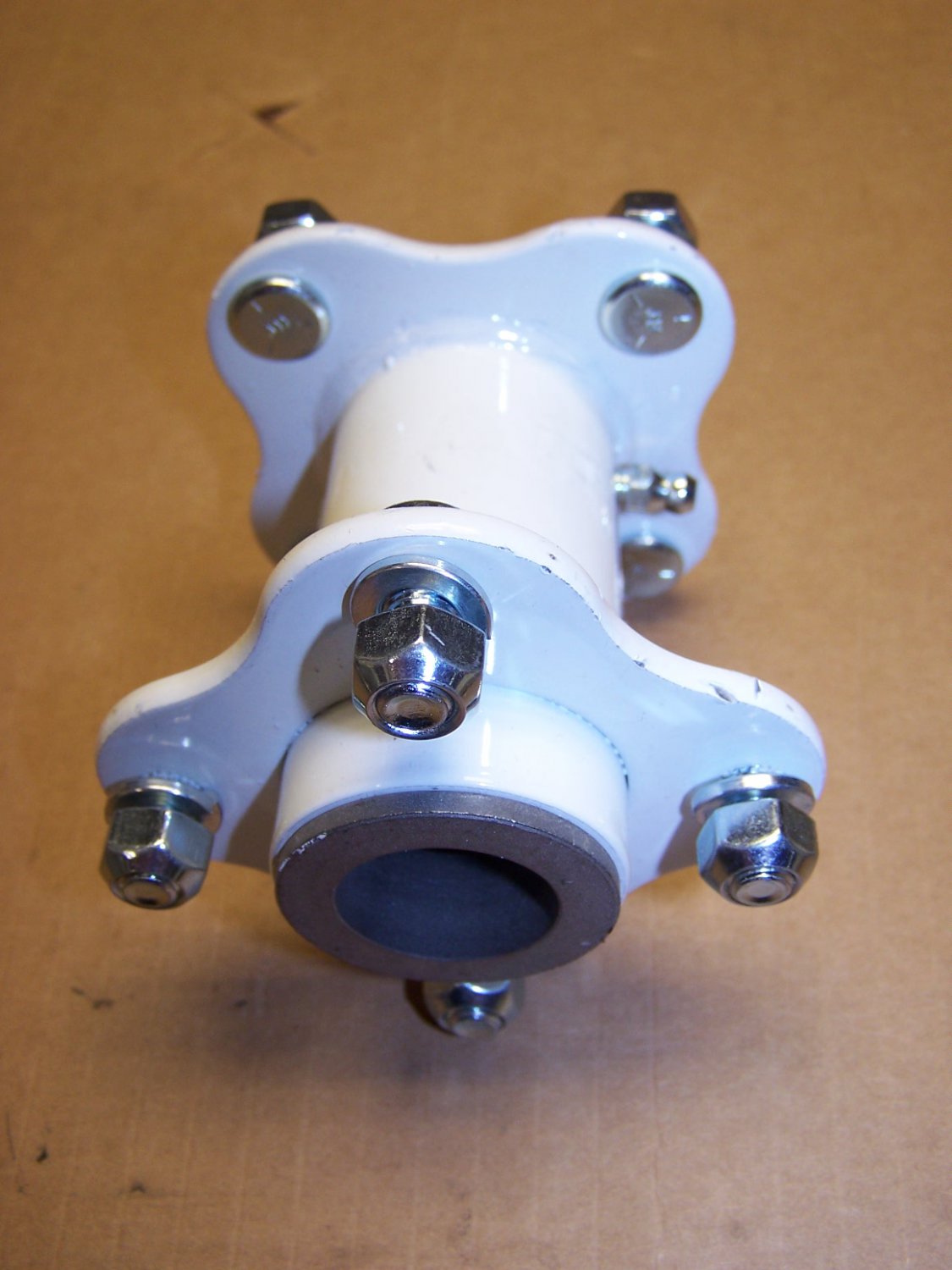

Offering these new “4-on-2-13/16” replacement mig-welded wheel hubs to fit 3/4" or 1”-diameter spindles.
These dual-flange hubs have the industry-standard 4-bolt lug patterns on a 2-13/16”-diameter bolt circle. The wheel-mount and brake plates are 3-1/2” OD x 3/16” thick.
The lug bolts are 5/16”-24 SAE thread and extend 5/8” from the wheel-mount face. The reversible lug nuts and brake-drum nuts are included, as shown; lock washers are not used on the PermaGreens.
The hub length is 3-1/2” and includes the Grafoil® Bushings that extend into the hubs ends 15/16" with the 3/4" Bushings or 1-1/16" with the 1" Bushings.
The wheel-mount face of the hub is 5/8" from the outer edge of the hub bushing; the brake-drum face is 1/4" from the outer edge of the hub bushing.
The bushings extend in to the hub 5/8" on each end; grease Zerks are included, and the Bushings are grooved so the grease is pumped into the center of the hub before coming out the ends, fully lubricating the Bushings and axle.
Hub tube OD is 1-5/8". The hubs are painted white powder-coat as shown in the pictures.
The lug plates are offset 45° as shown.
These hubs may be used to replace the roller-bearing equipped rear idler-wheel hubs on PermaGreen® spreaders that use the 6" x 4-1/4" split rims with brake drums. When kept properly lubricated, the Grafoil Bushings will not gouge the spindles as they wear, like the roller bearings do, thus saving you spindle replacements.
The $72.00 price shown is per pair.
No sales tax if sold outside Missouri. Sales tax of 5.225% must be charged to a Missouri Buyer.
QUESTIONS? Please -- before you ask a "Will-they-fit?" question, compare the measurements of your hubs to the dimensions I have listed above for these hubs.
SHIPPING: Buyer pays shipping from Postal Code 64730 USA. I can ship this Item worldwide. Within the USA, Item will be shipped UPS Ground Insured unless the buyer specifies otherwise. Item will be shipped promptly after receiving proper payment. Shipping weight is approximately 4# per pair. If the eCrater Shipping Wizard costs appear to be high in your Checkout, please let us know.
FEEDBACK: Our Feedback is 100%, which is good. The latest Feedback, however, is in December of 2011, which may raise questions. The reason for this is because we had to drop PayPal as an Approved Payment Method in our Store due to eCrater’s restrictions, and the only way Feedback can be left is if we show PayPal as an Approved Payment Method and the Buyer pays with PayPal through the eCrater Checkout. For this reason, there are no Feedbacks since December of 2011, even though we’ve had hundreds of satisfied customers since then. If you would like to get a referral from a recent customer near you, please let us know. We have nothing to hide, and your satisfaction is our priority.
Our philosophy..."No matter how many material possessions or awards you may acquire in your lifetime, the only thing you will ever truly own is your reputation."
Offering these new “4-on-2-13/16” replacement mig-welded wheel hubs to fit 3/4" or 1”-diameter spindles.
These dual-flange hubs have the industry-standard 4-bolt lug patterns on a 2-13/16”-diameter bolt circle. The wheel-mount and brake plates are 3-1/2” OD x 3/16” thick.
The lug bolts are 5/16”-24 SAE thread and extend 5/8” from the wheel-mount face. The reversible lug nuts and brake-drum nuts are included, as shown; lock washers are not used on the PermaGreens.
The hub length is 3-1/2” and includes the Grafoil® Bushings that extend into the hubs ends 15/16" with the 3/4" Bushings or 1-1/16" with the 1" Bushings.
The wheel-mount face of the hub is 5/8" from the outer edge of the hub bushing; the brake-drum face is 1/4" from the outer edge of the hub bushing.
The bushings extend in to the hub 5/8" on each end; grease Zerks are included, and the Bushings are grooved so the grease is pumped into the center of the hub before coming out the ends, fully lubricating the Bushings and axle.
Hub tube OD is 1-5/8". The hubs are painted white powder-coat as shown in the pictures.
The lug plates are offset 45° as shown.
These hubs may be used to replace the roller-bearing equipped rear idler-wheel hubs on PermaGreen® spreaders that use the 6" x 4-1/4" split rims with brake drums. When kept properly lubricated, the Grafoil Bushings will not gouge the spindles as they wear, like the roller bearings do, thus saving you spindle replacements.
The $72.00 price shown is per pair.
