Color Doppler Portable Ultrasound Scanners EC-800
10 available
Details
Shipping: Australia: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

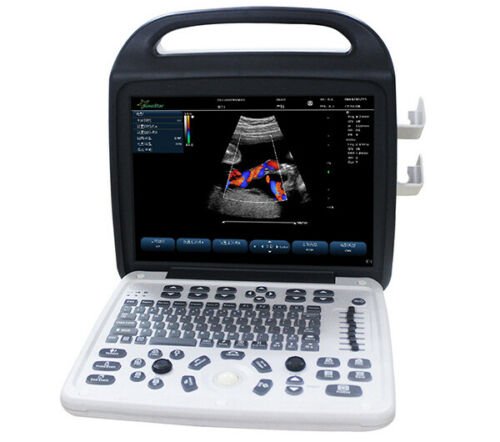

Color Doppler Portable Ultrasound Scanners EC-800
General Description:
Imaging Modes: B, B/B, B/M, M, 4B, C, PDI, PW
Scanning mode: Convex, Linear, Endocavity
Gray scale levels:256
Display:15 ’’ high resolution LCD monitor
Transducer Connector:2 standard
Scanning depth: up to 351mm
Physical channels64
Transducer element128
Dynamic imaging technologies: Digital Beam-forming
Digital Frequency Scan
Dynamic Receiving focusing
Dynamic Receiving apodization
Real-time Dynamic Aperture
Imaging processing:
Pre-processing:8-segment TGC adjustment, Dynamic range (0-100), Frame correlation (0-7), Edge enhancement (0-7), Line density (High/Mid/Low)
Post-processing: Gray scale (0-14), Scan angle up to 150, left/right reverse, up/down reverse
Function:
Zoom: 10 times
Cine loop: up to 6400 frames
HDD 500GB
Software function:
General Measurement: distance, circumference, area, (trace/ellipse), volume, etc.
Calculation package: abdomen, cardiac, gynecology, obstetrics, urology,, small parts (thyroid), etc.
Peripheral Ports:
Two Transducer Ports
Two USB Ports
DVI (to connect to external monitor or projector)
Remote
Video Output
S Video
LAN
Power Input Port
Foot switch
Standard Configuration:
15" high definition LED monitor
Two transducer connectors
Back lit control panel
8-segment TGC
982-frame cine loop
Integrated 500GB Hard disk
Internal lithium Battery Supporting normal diagnosis up to 1.5 hours
Inverted Harmonic Imaging
Pseudo color imaging mode
Annotation library for quick comment
Graph/text report function
DICOM storage SCU
User defined exam settings
User defined parameters capture (Acquire Set)
Intuitive soft key at the bottom of screen, clicking supported
Beam steering for better needle visualization
Patient information management system
Fetal trending--Fetal growth curve graph
Lithotripsy function supported
Biopsy function supported
Support polyembryony measurement up to six
Intuitive context dependent soft key
USB image transfer and software upgrade
Language of UI: Chinese, English
3C6C convex array transducer（2.5/3.5/4.5/H5.0/H6.0MHz）
Options:
3C6C convex array transducer (2.5/3.5/4.5/H5.0/H6.0MHz)
7L4C linear array transducer (6.5/7.5/8.5/H9.0/H10MHz)
6E1C endocavity transducer (5.0/6.5/8.0/H8.0/H9.0MHz)
8L4C high frequency linear probe
6C1C micro convex probe
6I7C rectal linear probe
Needle-guided brackets
Home charger and Cararger
Wireless data transfer function
USB water-resistant footswitch
Mobile trolley
Wheeled transport case
Others:
Net weight: Approx.8.5 kg
Power supply: 100~240VAC, 50Hz/60Hz
Dimensions: 400mm×394mm×172mm
Shipping:
Please make sure the consignee infomation be correct and complete, including Name, Address and Phone Number. For Russian Buyer, your consignee name must be complete in three words.
After payment is successfully verified and processed, parcel will be sent out within 1-5 business days.
Due to International Shipping, delivery time varies depending on country and courier service, most of the countries reached within 3-7 business days.
About Tax:
We Don't add taxes, Vat or other hidden charges. You pay us what you see goods subtotal+shipping cost( not include import tax). You need to pay the import tax in case that occrured for certain goods. We usually write a low price on the clearance invoice to help buyer avoid the import tax. If you have better suggestions, welcome to tell us!
Buyer Protection:
Full Refund if you don`t receive your order;
Defective, damaged or mis-shipped items are eligible for a full refund;
Item is not as described or low quality, you may return it before order completion and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller
Cutomers feedback:
We are always committed to make our clients satisfied with our products and service, if you have any suggestions or opinions in the experience of shopping in our store, please feel free to leave us an feedback.
If your experience is not good, please just give us an negative feedback and if you could please clearly let us know where can be improved by your opinions;
If you are satisfied, please leave us your real feeling, and if you have some ideas for us to improve and do better, would be highly appreciated.
Therefore, we thank you for your real feedback, and looking forward to your helpful and improvable comments for our products and service.
Contact us:
If you have any questions or problems with our products, payments, shipping and refunds, please feel free to leave messages to us , we are more than happy and will do our best to assist you.
