Hub for Meyer and Buyers Salt Spreaders Owners Manual in Ad
Hub for Meyer and Buyers Salt Spreaders Owners Manual in Ad

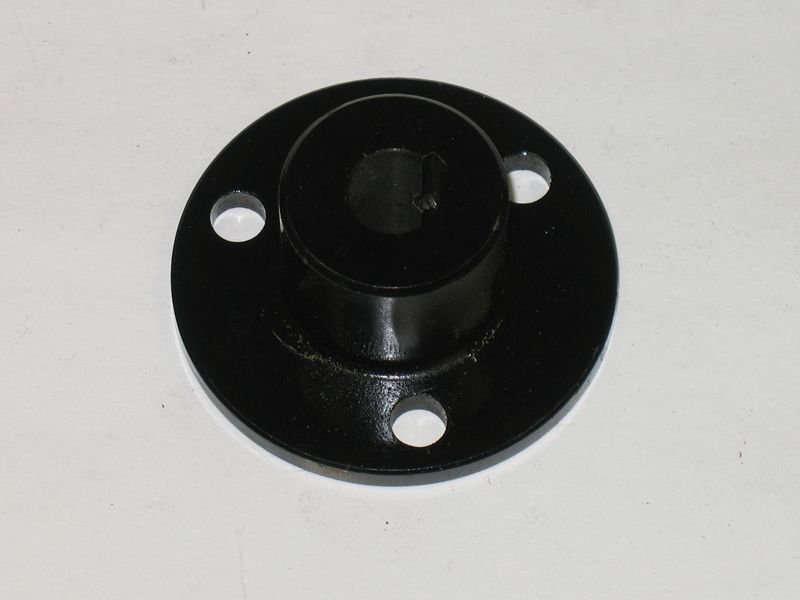

Hub for Meyer 31000 Salt Spreader
SHIPPED USPS FIRST CLASS
Replaces part #
Meyer 36152

Black
Aftermarket

Cross Reference:
Meyer 36152





http://ww2.meyerproducts.com/upload/forms/Meyer250-7final.pdf




http://ww2.meyerproducts.com/upload/forms/Meyer250-7final.pdf


Meyer 31000 Owners manual showing this is the correct hub for your application.




Meyer 31000 Owners manual showing this is the correct spinner for your application.
Snow plows:
No matter what brand plow you have the most important thing is to change hydraulic fluid. Since most people store their plows outside the reservoirs tend to condensate thus accumulates water. Even if your plow is only one season old the oil should be changed. If your plow is few years old you should clean your filter as well and drain the oil from angle cylinders. Tip: Adding a 1 ounce of denatured alcohol will help reduce moisture in reservoir. Inspect all hoses for leaks and cracks. All electrical connections should be taken apart and cleaned. Do not forget the connections under the hood by the battery. If you have multi pin connections they should be cleaned and greased with dielectric grease to prevent corrosion, please remember too much grease could worsen connection. If your plow uses lift chain, check for worn links. Trip springs tension. Center hinge bolt should be check for tightness. Check all metal parts for cracks. Very important on Western plows make sure that when you angle your plow right and left the a-frame stops should touch the stops on the quadrant. If you have .25” space an additional spacer could be welded to eliminate gap. By doing that you will prevent your angle cylinders to over extend and possibly contaminate your system with debris from packing or broken rod stop. If you have more than a .25” gap inspect a-frame center bolt hole, it might be worn out too much. This might require you to replace a-frame and or quadrant as well. Tip: Some people weld1 additional thick plate to eliminate oval shape on center hole. Lubricate all moving parts. Remember to carry extra parts with you when you plow. Suggested parts are: Motor relay (solenoid), trip spring and eye bolt, extra hoses, hitch pins, cotter pins, hydraulic oil.
Spreaders:
Well ,spreaders, especially hopper style spreaders, aren’t easy to maintain. The first start up is always the most difficult, but it is very important to prepare your hopper spreader for summer storage, but we want to help you to get your spreader ready for winter. First, if you have gas engine spray with lubricating oil e.g. WD40 throttle linkage, make sure that all levers are moving smoothly. Replace spark plug. Lubricate electric starter. Tip: Since the upper end of the starter and bendix on many engines is covered we recommend to drill (if possible) a small hole above to allow you to spray lubricant on to the bendix and armature shaft. Clean all electrical connections. Clean connections at the external battery (if you have one). Grease and inspect all bearings. Lubricate clutch bearing (do not spray oil on pressure plate) Inspect conveyor chain, adjust tension if necessary Tip: to adjust measure about 24" from the rear edge of the hopper. Move up on the chain with your hand. The conveyor chain should lift up 1"-3" off the conveyor chain guide or cross braces. Inspect drive chains, belts. Change oil in gear box. If you have electric motor clean and inspect brushes, they should move freely (most motors have access cover
