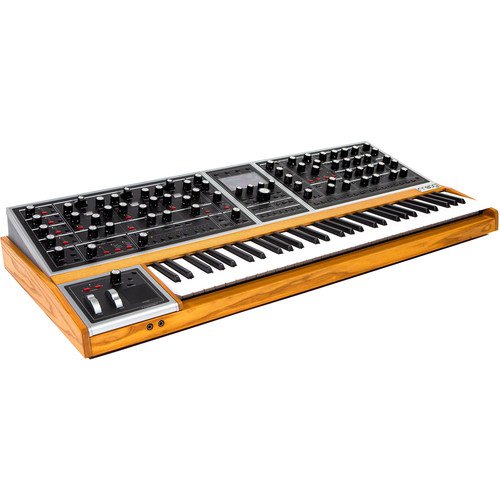

Moog One 3-Part Polyphonic Analog Synthesizer (16-Voice)
Moog THE ONE Specs
Keyboard 61-note Fatar TP-8S with velocity and aftertouch
Polyphony 16
Multitimbral 3-part
Synthesis Method Analog
Presets Tens of thousands of presets
64 presets per Performance Set
Effects Synth and Master Bus Effects: Chorus, delay, phase, bit reduction, and vocoder
Eventide Reverb: Blackhole, shimmer, plate, room, and hall
Sequencer Sequencer and arpeggiator per part
Controllers Knobs: 73
Buttons: 144
Expansion Slots LAN port for future expansion
USB USB drive support for system and preset backup
MIDI Connectors 5-pin DIN connectors
USB MIDI
Outputs Headphone: 2 x 1/4" / 6.3 mm (located on the front edge of the left hand controller)
Outputs: Two pairs of assignable 1/4" / 6.3 mm TRS (TS compatible)
CV/Gate: 4 x 1/4" / 6.3 mm TS
Inputs External Audio (Line Level): 1 x 1/4" / 6.3 mm
External Audio (Mic/Line): Combo XLR-1/4" / 6.3 mm with trim knob
CV/Gate: 5 x 1/4" / 6.3 mm
Sustain Pedal: 1 x 1/4" / 6.3 mm
Expression Pedal: 2 x 1/4" / 6.3 mm TRS (configurable through the modulation matrix or as CV inputs)
Insert Hardware Inserts: 4 x 1/4" / 6.3 mm (TRS send/returns, can be used as mono outs)
Displays 3 x OLED
1 x LCD
Dimensions (W x D x H) 42.0 x 20.0 x 7.0" / 106.7 x 50.8 x 17.8 cm
Weight 45.0 lb / 20.4 kg
