Features:
Extend your HDMI signal over long distances by sending the signal over CAT 5e or CAT 6 cable.
Uses CAT5e or CAT6 cable to substitute HDMI and achieve long distance transmissions.
Comes as a pair (one sender, one receiver).
HDMI pigtail cables attached to each unit, so there is no need to purchase additional HDMI cables
Supported Resolutions: 480i up to 1080p
Supports 1080p Resolution up to at least 100ft (30M) using CAT6 cable, and much further when using lower resolutions
Supports 3D
Auto adjustment of feedback, equalization, and amplification
Supports uncompressed audio such as LPCM
Supports compressed audio such as DTS Digital (including DTS-HD and Dolby True HD)
Supports Deep Color
HDCP Compliant
Use 2 CAT5e or CAT6 cables (not included)

Description:
Gender: Male-Female
Connector Type: HDMI/ Optical Fiber
Input video signal: 0.5 -1.0 volts p-p
Input DDC Signal: 5 volts p-p (TTL)
Maximum Single Link Range: 1920 x 1080p
Output Video: HDMI
Vertical Frequency Range: 50/60Hz
Video Amplifier Bandwidth: 1.65Gbps/165MHz
Interlaced(50&60Hz): 480i,576i,1080i
Progressive(50&60Hz): 480p,576p,720p,1080p
UTP cable with cross stand inside: 30m for 1080p
Operating Temperature: 0°C to +70°C
Operating Humidity: 10% to 85 % RH (no condensation)
Storage Temperature: -10°C to +80°C
Storage Humidity: 5% to 95 % RH (no condensation)
Power consumption: 5W (Max)

Specification:
Color: Black
Length: 27cm

Operation:
1. Plug the fixed HDMI cable of the sender into the HDMI input source such as, HD-DVD, for PS3, STB, etc.
2. Connect two CAT-5e/6 cables to both the output of the transmitter and input of the receiver.
3. Plug the fixed HDMI cable of the receiver into the HDMI display, such as, HD-LCD, HD-DLP etc.

SKU:ZC24600

Package included:

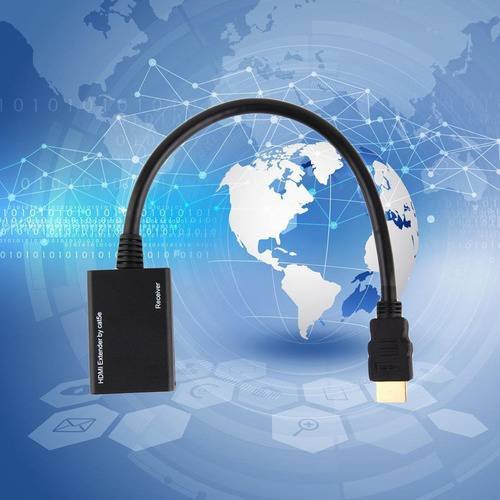

1* Pair (One sender, One receiver) Black HDMI Extender Adapter

Note:
This product not includes CAT5e or CAT6 cables, you need to buy it by yourself.
