You are purchasing a brand new factory sealed Allen & Heath ME-1-AH
Compact Personal Mixer. GET IT HERE FIRST! FAST RELIABLE SHIPPING TO YOUR DESTINATION!

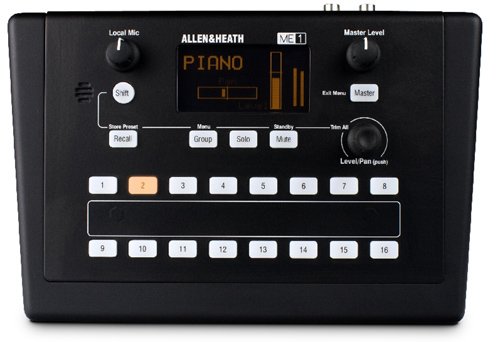

The Allen & Heath ME-1 Personal Mixer puts the musician in control of their own monitor mix. Each performer can be given a tailored setup that works perfectly for them, whether they crave maximum control over the fine details of their mix or just want the minimum of keys to press. Operation is intuitive and elegant, with simple controls, clear visual feedback and custom naming for instant familiarity.

ME-1 is the cornerstone of the ME Personal Mixing System and is ready to use with the Allen & Heath iLive and GLD series digital mixers. ME-1 is complemented by the ME-U hub, which opens up the benefits of ME to users of other professional digital mixers via Dante, EtherSound or MADI. ME-1 also has an Aviom® compatibility mode for use with Aviom® Pro16® systems.

Allen & Heath ME-1 Personal Mixer Features:
Fully customizable
Intuitive operation
Compact, smart design
40 sources from GLD or iLive
Compatible with MADI, Dante or EtherSound via ME-U hub
Daisy chain or use standard PoE Ethernet hubs
16 assignable keys to suit application
Allen & Heath ME-1 Personal Mixer Specifications:
Inputs: 40 inputs (Cat5), Stereo Aux, Ambient Mic
Outputs: 2x Stereo (Line or Headphones), Mono Line Out
Input Control: Level, Mute, Pan, Solo, Trim All
Master Control: Level, Mute, 3-band EQ, Limiter
Group Control: Level, Mute, Level/Pan for sources within Group
Groups: 16, Up to 40 sources assignable
Presets: 16, Store input Levels, Mutes, Pans, Key assign, Names, Group sources
Config: Stores Setup and all Presets
Names: Channels, Keys, Unit, Presets, Config
USB Data Port: Individual Presets or Config transfer, Firmware update
Cat5 Audio and PoE: Link In and Link Out, locking EtherCon connectors
Stereo Out:
Stereo 1/4" and 3.5mm Jacks
Headphones 300mW+300mW into 100 ohm load
Max +21dBu
Mono Output:
Balanced TRS Jack
Nominal 0dBu, Max +18dBu
Aux Input:
Stereo 3.5mm Jack
Nominal -8dBu, Max +10dBu
Input Impedance >10kOhm
AD/DA Conversion: 24-bit Delta/Sigma, 48kHz
Residual Output Noise: -95dBu (Level down, 20-20kHz)
Frequency response: +0/-1dB 10Hz to 20kHz
Mains Power Unit (supplied): 100-240V AC, 50/60Hz in, 12V DC 1.25A out
Power over Cat5 cable (PoE): 10W (Requires 13W from PoE hub)
Dimensions: 8.9" W x 5.9" D x 2.2" H (225 x 150 x 55 mm)
Weight (inc phones hook): 2 lbs (900g)

We are an authorized distributor for all brands listed and each purchase is backed by a full manufacturers warranty.

Please note pics and descriptions are from the manufacturer.
