High torque and low noise, ball bearing, with a cooling fan.
Great replacement for the rusty or damaged DC gear motor on the machine.

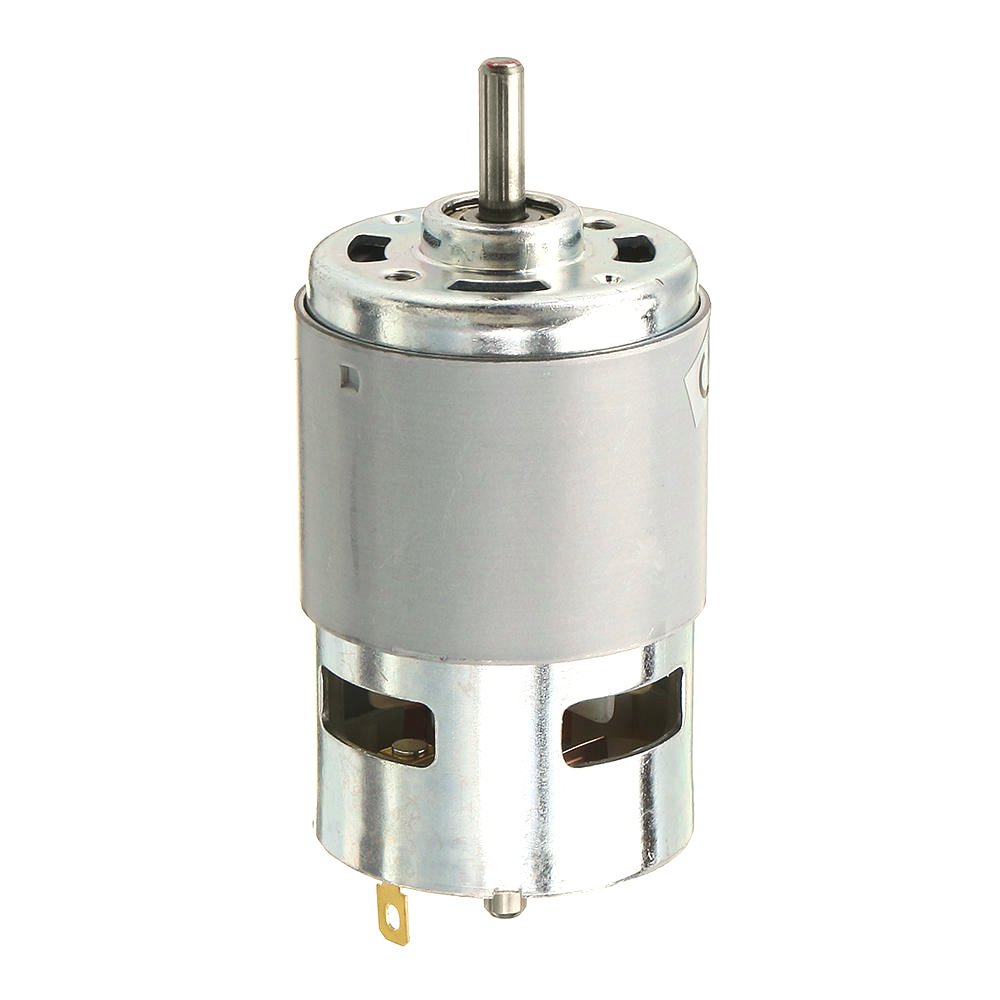

Motor type: RS-775 Carbon Brush DC Motor
Voltage range : 12v-36v
Output shaft diameter: 5mm
Shaft length: 17mm
Body length: 66.7mm
Front steps diameter: 17.4 mm
Former high level: 4.7 mm
Body diameter: 42 mm
Motor Overall Length: 98 mm
Diagonal installation pitch: 28.8 mm
Mounting hole size: M4
Mounting hole: 2
Torque: 2kg.cm or 0.2N.M
Voltage : 12V Speed : 3500Rpm / Current 0.14A
Voltage : 18V Speed : 4500Rpm / Current 0.15A
Voltage : 24V Speed : 7000Rpm / Current 0.16A
Voltage : 30V Speed : 8100Rpm / Current 0.17A
Voltage : 36V Speed : 9000Rpm / Current 0.20A
This is the front end of the motor ball bearing, copper sets of the back-end, 5 groups winding, at a voltage of 24V, large torque, low noise.
Used in electric tool motors, power is very large, you can make a small spindle motor, and is also suitable for DIY aspect.
Used for an electronic game machine, electronic toys, car toys, robot, electronic equipment.
1pc x Electric Motor 12V 36V DC RS 775 770 High Torque Reversible 9000rpm
