56102 Cylinder Kit Hose Elbow for Western Plow

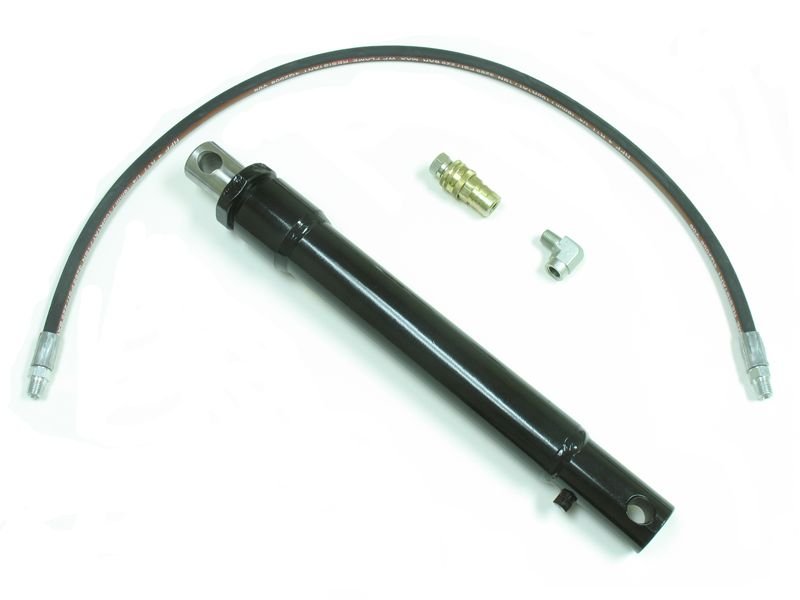

Western Aftermarket Cylinder Kit 56102 Including, 38 Inch Hose, Fitting and Coupler

• Aftermarket

• 56102 Cylinder Western Replacement










•Cylinder 3/4" Dia. Pin Holes (SNP7102)
•
•38" Hose (SNP7120) Western 55020






◦Cylinder 3/4" Dia. Pin Holes (SNP7102)
◦38" Hose (SNP7120)
◦Elbow (SNP7110) Western 2780
◦Quick Coupler (SNP6172)















◦Cylinder 3/4" Dia. Pin Holes (SNP7102)
◦38" Hose (SNP7120)
◦Elbow (SNP7110)
◦Quick Coupler (SNP6172) Fisher A1587









•Elbow (SNP7110)
•Quick Coupler (SNP6172)












Specifications


Aftermarket Western

56102

Bore x Stroke 1-1/2 x 10 in

Length of Housing (A) 16-9/16 in

Collapsed Length (B) 18-3/4 in

Extended Length (C) 28-3/4 in

Dimension D 3/4 in

Dimension E 2-11/16 in

Diameter (G) 1-1/2 in

Diameter (J) 3/4 in

Port / Clevis 90° Apart

Weight per Cylinder 13 lb

Lift Angle









SNP7102








Shipped directly from Distributor
