Features:
1. Adopt the original creation D/A temperature compensated auto frequency control technology(TAFC), the lasting stability ensure that the WiFi signal is not dropped
2. Original creation VDNS virtual domain configuration technology solves the user’s trouble of configuration.
3. The smallest WiFi router, its size is less than one-half of the Bank card, very useful for both business trip and household.
4. Supply power by USB (DC5V)
5. Low power, the whole power supply less than 4W.
6. Dedicated power supply cable together with Ethernet cable two in one cable connector, reduce redundant connector, convenient for usage.
7. In WiFi intelligent bridge mode, it can intelligent control the device WiFi mode: 1. WiFi AP Client (it can be used for access from WiFi to wired Ethernet); 2. WiFi Hotspot (it is suitable for hotel room usage); 3. WiFi Repeater (it can extend the distance of WiFi signal coverage, ecology and safe)
8. In WiFi intelligent bridge mode, it supports WiFi hot spot scan automatically and WiFi hot spot memory function.
9. 1 WAN, 1 LAN, two ports can interchangeable, such small volume has two ports, so unusual.
10. Support 802.11N WiFi transfer protocol, 300Mbps rate of transmission
11. Good compatibility, almost compatible with all of the smart phone, tablet computer, notebook and WiFi devices.

Description:
VAR11N-300 is as an ecology and safe WiFi repeater. It is different from the traditional method that use increased the wireless transmitter power (it will generate a strong harmful radiation) to expand the distance of wireless transmission, but in WiFi signal coverage of failure point, place this device as a WiFi signal repeater to re-enlarge the weak WiFi signal, and during not increasing the wireless transmitter power, expand WiFi signal coverage, safe and ecology, it is very useful for home or office safe WiFi signal coverage.

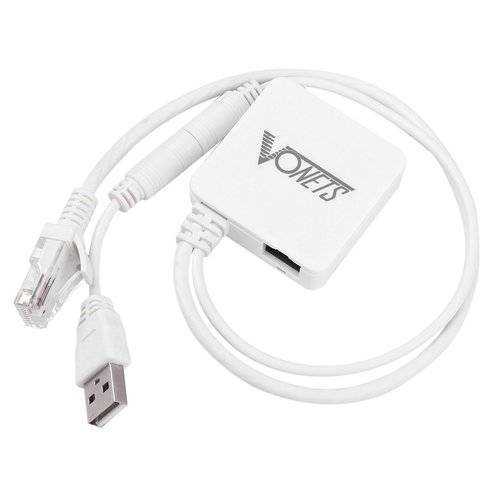

VAR11N-300 is a plug and play Mini WiFi router and WiFi bridge. On business trip and traveling stay at hotel, you just connect the Ethernet cable in the hotel room to Ethernet port of VAR11N-300, then connect power supply, the whole room is Wi-Fi wireless coverage.

Wireless Related:
1. Basic Function:
Wireless Switch
SSID Broadcast switch
Channel option: 1-14
WiFi mode option: 802. 11n only, 802.11 B/G/n mixed, 802.11
B/G mixed, 802.11G only, 802.11B only.
WiFi Hotspot scan automatically
WiFi Hotspot memory
2. Working Mode:
WiFi Intelligent bridge mode:
AP Station mode (WiFi hotspot), suitable for hotel room usage
AP Client mode (WiFi client), suitable for IP TV, STBs.
Repeater mode (WiFi signal repeat), it can extend the distance of WiFi transfer
WiFi router mode
3. Wireless security:
WiFi MAC address filter
WiFi Security function switch
64/128/WEP encryption
WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism

Wired Related:
1. WAN port Setting
WiFi router mode:
WAN port connection type support: PPPoE, Dynamatic IP, Static IP, L2TP, PPTP
DDNS Client
2. Firewall:
WiFi router mode:
IP and MAC address binding against ARP attacks (WiFi router mode support)
IP address filter (WiFi router mode support)
Domain filter (WiFi router mode support)
Mac address filter
3. Forward rules:
Port forwarding (WiFi router mode support)
Virtual Service (WiFi router mode support)
DMZ Host
4. System function
Firmware upgrade
Device reboot
Reset factory
Administrate account and password revise

Specification:
Color: white
Protocol Standard: IEEE 802.11g. IEEE 802.11b. IEEE 802.11n
Transmission Rate: 300Mbps
Interface: 1 10/100M adaptive Ethernet female port; 1 dedicated two in one power supply cable, with a set of power supply and a set of 10/100M adaptive Ethernet cable(Ethernet cable and Ethernet LAN/WAN interchangeable)
Button: Reset button (Long press)
LED Status instruction: Ethernet port status Light; Ethernet cable status Light; work mode status Light; WiFi status Light
Antenna: Built-in Intelligent Omnidirectional antenna
Dimensions: 44mm x 44mm x 14mm(L x W x H)

SKU:ZN562700

Package included:
1 x Wifi Repeater
