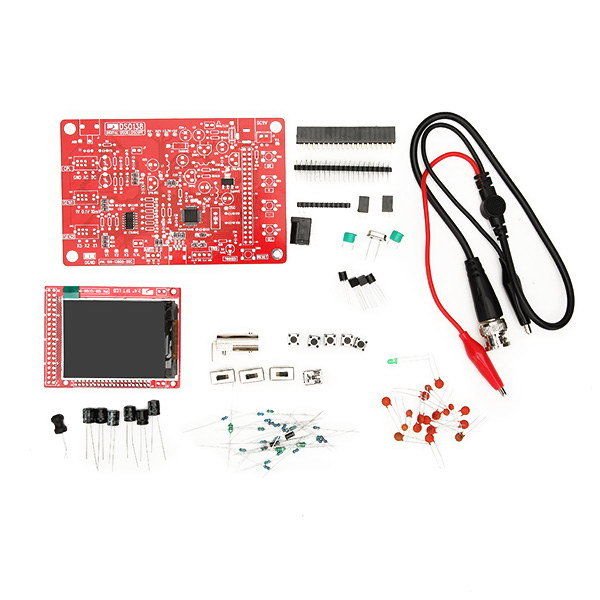

Store New Arrivals Add to Favorite View Feedback Contact Original JYETech DSO138 DIY Digital Oscilloscope Unassembled Kit SMD Soldered 13803K Version Description Note: This version SMD is soldered, is much easier than 13804K version. This is an unassembled kit, customers should have some basic electronic activity and ability, because of different levels of ability, we can not that everyone can DIY success, but we are committed to do our best of after-sales service. Product Documents and firmwares: (click to open) Users Manual [for 13801K/02K(discontinued)] Users Manual [for 13803K/04K] Assembly Drawing Surface Mount Component Installation Guide SMD Part List Firmwares Source codes [basic version] DSO138 Library How to Use the DSO138 Library Schematic of the LCD board How to Upgrade firmware for DSO138 Features: Kits using ARM Cortex-M3 processor (STM32F103C8), and includes a 2.4-inch color TFT display can be used as ARM test development board. Available source, Capable people can be secondary development on the basis of the suite, for example, it can be changed to Millivoltmeter, data loggers, and so on (we dont supply any technical support about that). Circuit is simple and the kit is inexpensive Description: PCB size: 117 x 76mm Screen size: 52 x 40mm Supply voltage: DC 9V Characteristics of indicators: Maximum real-time sampling rate: 1Msps Accuracy: 12Bit Sampling buffer depth: 1024 bytes Analog bandwidth: 0 - 200KHz Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner) Adjustable vertical displacement, and with instructions Input impedance: 1MΩ Maximum input voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe) Coupling modes: DC / AC / GND The horizontal time base range: 10μs / Div - 50s / Div (1-2-5 progressive manner) With automatic, regular and one-shot mode, easy to capture the moment waveform Available rising or falling edge trigger Adjustable trigger level position, and with instructions Observable previous trigger waveform (negative delay) Can freeze at any time waveform display (HOLD function) Comes 1Hz /3.3V square wave test signal source Package included: 1 x DIY Digital Oscilloscope Kit Test, for reference only: ABOUT US We offer the best prices around on high quality products. Our E-store includes media such as books, movies, music and games while offering electronics, toys, sporting apparel, clothing, tools, general home, garden items and more. SHIPPING We are always working hard to ensure your package arrives as soon as possible. Please understand that some factors like weather, high postal traffic, and the performance of shipping companies are outside of our control. We offer free shipping to the lower 48 states and ship within 4 business days of payment, usually sooner. RETURNS We offer a 30-Day Return Policy on items which you are not completely satisfied with. You have the option for a full- or an exchange of the item. Buyer will pay for the shipping fee. PAYMENT We accept PayPal. This page content is yet to come Please ad us to your favorite seller and visit again later Thank You CUSTOMER SATISFACTION We try our very best to make sure every customer is completely satisfied. If theres a problem, message us! Were happy to help. WE ACCEPT Copyright © 2017 AutoDs. | All Rights Reserved
