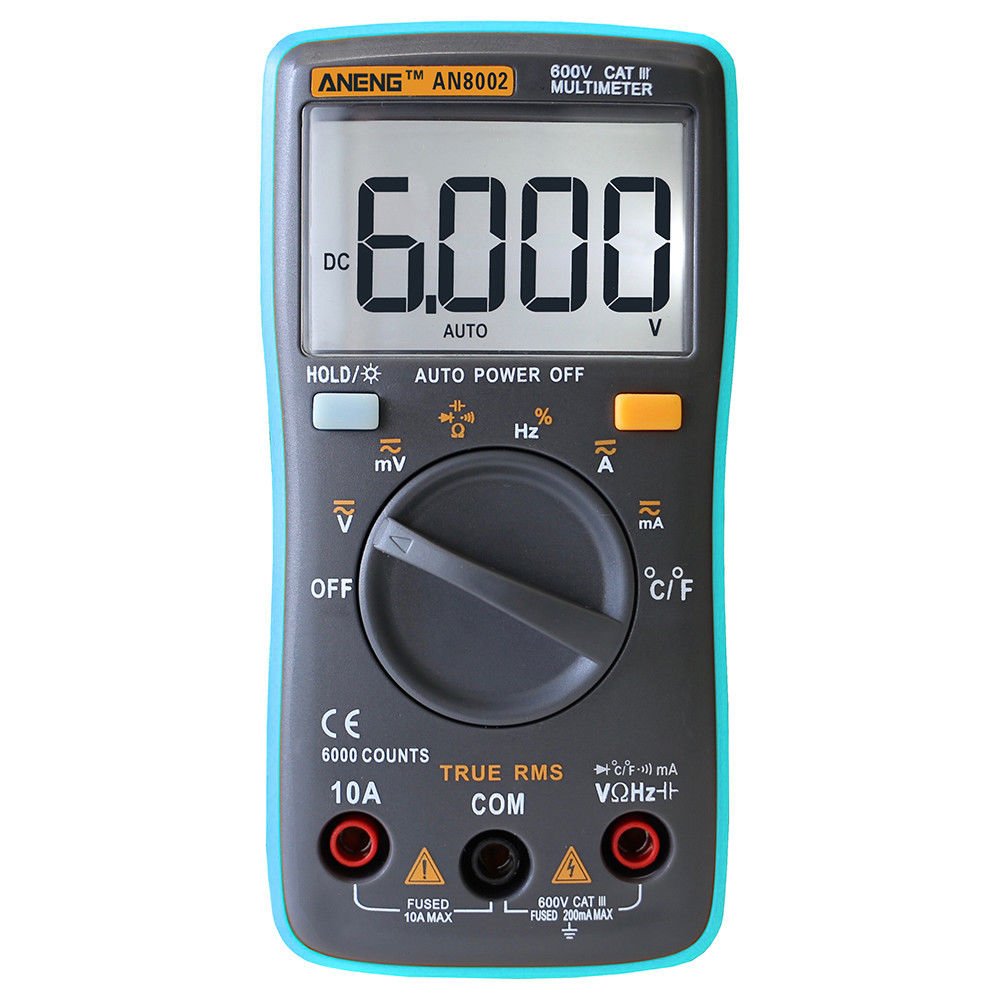

ANENG AN8002 Digital True RMS 6000 Counts Multimeter AC/DC Current Voltage Frequency Resistance Temperature Tester ℃/℉ Description: It is a Auto-ranging digital MultiMate using double-integral style A/D transform as the core. Can be used to measures Temperature AC/DC Voltage AC/DC Current Resistance Capacitance Diode and Continuity testing temperature Frequency and Etc. The products are battery powered they are characterized by stable function and high reliability, with the features of overload protection and LCD display for clear reading are an ideal tools for lavatory radio fans and family use. Features: Auto Range. True RMS measurement. Resistance capacitance frequency file high voltage 550V protection. Large screen display, the maximum of 6000 words. Sampling rate: about 3 times per second. Temperature measuring. Backlight display. Data retention. Polarity automatic recognition. Low voltage display. 10A large current measurement MA level small current measurement Automatic shutdown. Main measurement: AC / DC voltage, AC / DC current, resistance, capacitance. Diode / off measurement, frequency and duty ratio measurement. Specification: Function Range Resolution Accuracy MAX.Value Other DC Voltage 6.000V 0.001V ±(0.5%+3) 1000V Input Resistance:10MΩ 60.00V 0.01V 600.0V 0.1V 1000V 1V 60.00mV 0.01mV 600mV 600.0mV 0.1mV AC Voltage 6.000V 0.001V ±(1.0%+3) 750V Input Resistance:10MΩ(600mV range, >60MΩ) Frequency Response: 40Hz-1kHz 60.00V 0.01V 600.0V 0.1V 750V 1V 60.00mV 0.01mV 600mV 600.0mV 0.1mV DC Current 6.000A 0.001A ±(1.2%+3) 10A MAX.Current: 10A(no more than 15 seconds) No Voltage input at this mode Frequency Response(AC): 40Hz-1kHz 10.00A 0.01A 60.00mA 0.01mA 600mA 600.0mA 0.1mA AC Current 6.000A 0.001A ±(1.5%+3) 10A 10.00A 0.01A 60.00mA 0.01mA 600mA 600.0mA 0.1mA Resistance 600.0Ω 0.1Ω ±(0.5%+3) 60MΩ No Voltage input at this mode 6.000kΩ 0.001kΩ 60.00kΩ 0.01kΩ 600.0kΩ 0.1kΩ 6.000MΩ 0.001MΩ 60.00MΩ 0.01MΩ ±(1.5%+3) Capacitance 9.999nF 0.001nF ±(5.0%+20) 9.999mF No Voltage input at this mode 99.99nF 0.01nF ±(2.0%+5) 999.9nF 0.1nF 9.999μF 0.001μF 99.99μF 0.01μF 999.9μF 0.1μF 9.999mF 0.001mF ±(5.0%+5) Frequency 99.99Hz 0.01Hz ±(0.1%+2) 9.999MHz 999.9Hz 0.1Hz 9.999kHz 0.001kHz 99.99kHz 0.01kHz 999.9kHz 0.1kHz 9.999MHz 0.001MHz Duty Cycle 1%~99% 0.1% ±(0.1%+2) Diode √(DC forward current is 5mA, voltage is 3V) No Voltage input at this mode Continuity √(no more than 50Ω) Temperature -20~1000℃ 1℃ ±(2.5%+5) 1000℃ -4~1832℉ 1℉ 1832℉ Measurement mode: double-integral style A/D transform Sample rate: 3 times per second Over range indication: OL Powered by 2 x AAA batteries (Not included). Working Environment: 0-40 degrees relative humidity:
