DESCRIPTION:

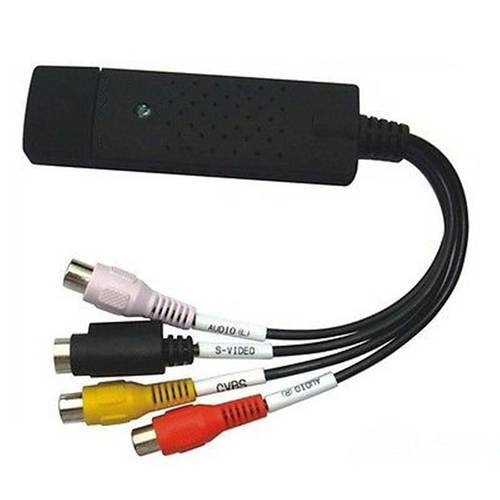

USB 2.0 Video Grabber with Audio, it can capture High-quality video and audio file direct by USB 2.0 interface without sound card. However, the installation is very simple and the external power is unnecessary.
Solution for laptop, we have enclosed the professional video editing software then provide best editing function for you. Video Studio is video-editing software that makes editing your movies as fun as shooting them. The new Video Studio Movie Wizard helps novice users finish stylish movies in only three steps. Share finished projects on DVD, tape, the Web, and mobile devices.
High-speed rendering and real-time performance mean less time waiting and more time creating.

FEATURES:
Include Professional and easy to learn & used video editor software
Popular USB 2.0 interface and not need other
Capture Video & Audio though USB 2.0 interface
Support Brightness, Contrast, Hue, and Saturation control
The dimension suitable that is easy to carry
Could capture audio without the sound card
High plug & play
Support For All Formats: record in DVD+/-R/RW, DVD+/-VR, and DVD-Video
Applying to internet conference / net meeting.

Specifictions:
Complies With USB Specification Rev. 2.0
Supports NTSC, PAL Video format
Video input: One RCA composite, One S-Video
Audio input : Stereo audio (RCA)
Dimension : (L)78 x (W)30 x (H)20mm
USB bus power
Supports high quality video resolution:
NTSC: 720 x 480 @ 30fps
PAL: 720 x 576 @ 25fps

System Requirements:
P4 1.7GHz CPU or above
256MB RAM
VGA card with 32MB memory
One available USB 2.0 port
Compatible Windows-sound card
. Microsoft windows XP/Vista/Seven

Hardware Installation
(1)Before you first connect the EasyCAP USB 2.0 Video Capture with Audio to your computer, please insert the “Software CD-ROM” into your CD drive. Select the option “Install”. When “Completing the Found New Hardware Wizard” window appears click the “Finish” button to complete the driver installation.
Note: If any further components are found please repeat the above process until you receive the message “Found new hardware : Your hardware is installed and configured use”.
(2)You will now need to check that The drivers are installed correctly. Connect the EasyCAP USB 2.0 Video Capture with Audio to your computer, Right Click on My Computer and Left Click on properties. Click on hardware tab and then Device Manager.In the Device Manager click on the +imaging devices correctly you should see the “OEM caputer”. If it has a Yellow mark next to it then this means that the driver is not installed correctly. You will need to remove the driver and disconnect the EasyCAP USB 2.0 Video Capture with Audio from the computer and reconnect is to install the driver again.

Software Installation
When insert the CD-ROM into your computer, and select “Install”. In the next windows, and click “next”. ”I accept the terms of the license agreement”. Click ”next”, “Finish” to complete application software installation.
Please double click “honestech VHS to DVD 2.0 SE” icon on your desktop, you will get a window, and you must enter your product key in the window , then click “OK” icon.(You can find the product key on the CD folder "SN.txt")

SKU:ES013


Package includes:
1 X USB VIDEO AUDIO CAPTURE ADAPTER VHS TO DVD HDD TV CARD
1 X User Manual
1 X CD-ROM
1 X USB extension cable
